PETZL MICRO TRAXION Progress-Capture Pulley
MBS 15 kN (2 × 7.5 kN) || WLL 5 kN (2 × 2.5 kN) || Weight 85 g || Efficiency 91 % || For ropes Ø 7–11 mm
Description PETZL MICRO TRAXION Progress-Capture Pulley

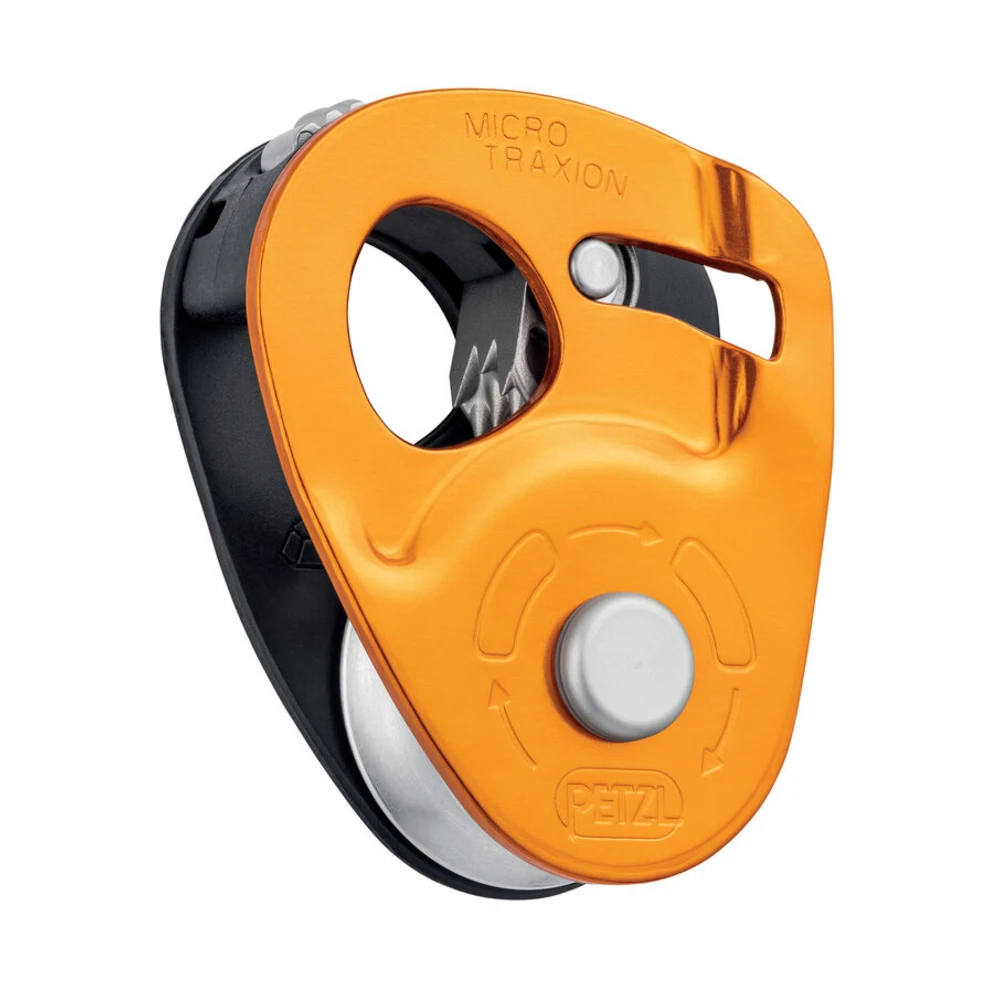

The PETZL MICRO TRAXION is a compact progress-capture pulley designed for crevasse rescue, hauling systems, self-rescue and emergency ascender use. With a weight of only 85 g, it is suitable for lightweight technical setups.
The cam captures rope progress during hauling operations. It can be locked in the open position, allowing the device to function as a simple pulley without capture function.
Sealed ball bearings provide high efficiency of 91 %. The device operates reliably even on icy or muddy ropes.
Technical information
• Rope compatibility: Ø 7–11 mm
• Sheave diameter: 27 mm
• Bearing type: sealed ball bearings
• Efficiency: 91 %
• Weight: 85 g
• WLL: 5 kN (2 × 2.5 kN)
• MBS: 15 kN (2 × 7.5 kN)
• WLL (progress capture mode): 2.5 kN
• MBS (progress capture mode): 4 kN
• Certification: CE EN 567, UIAA
• Reference: P53
• Guarantee: 3 years
Try the product in our store
| Article MPN | P53 |
|---|---|
| Certification | EN 567, UIAA |
| Weight | 85 g |
| Breaking load (MBS) | 15 kN |
| Working load (WLL) | 5 kN |
| Rope Diameter | 7 - 11 mm |
| Efficiency | 91% |
| Manufacturing company | Petzl International |
|---|---|
| Address | Zone Industrielle, 38920 Crolles, Isère, France |
