IKAR concrete base for ASS-1 davit arm
Country of origin: Germany
Article MPN: X4010XX00
For the IKAR ASS-1 davit arm || For installation in a core-drilled hole in concrete || Stainless steel 1.4571 (V4A) / polyamide || Dimensions 160 × 335 mm || Weight 4.6 kg || EN 795 Type A || CEN/TS 16415
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

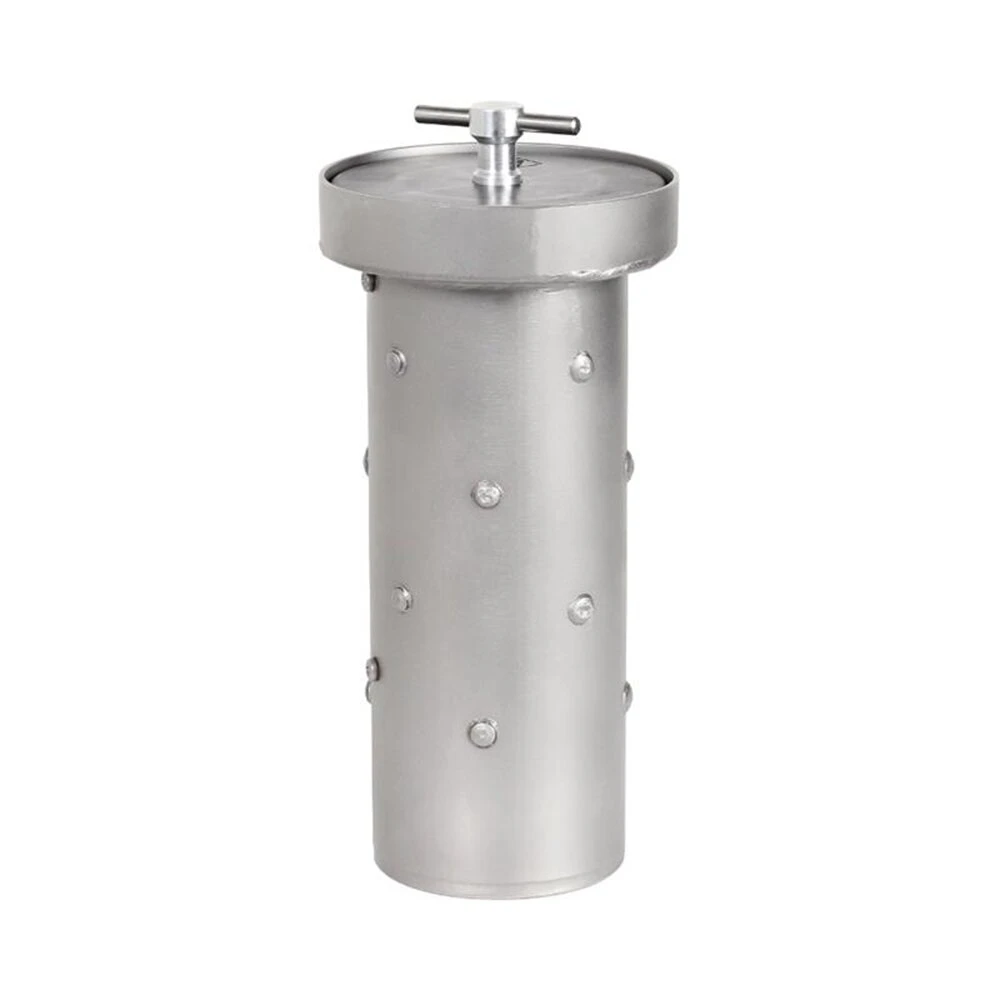

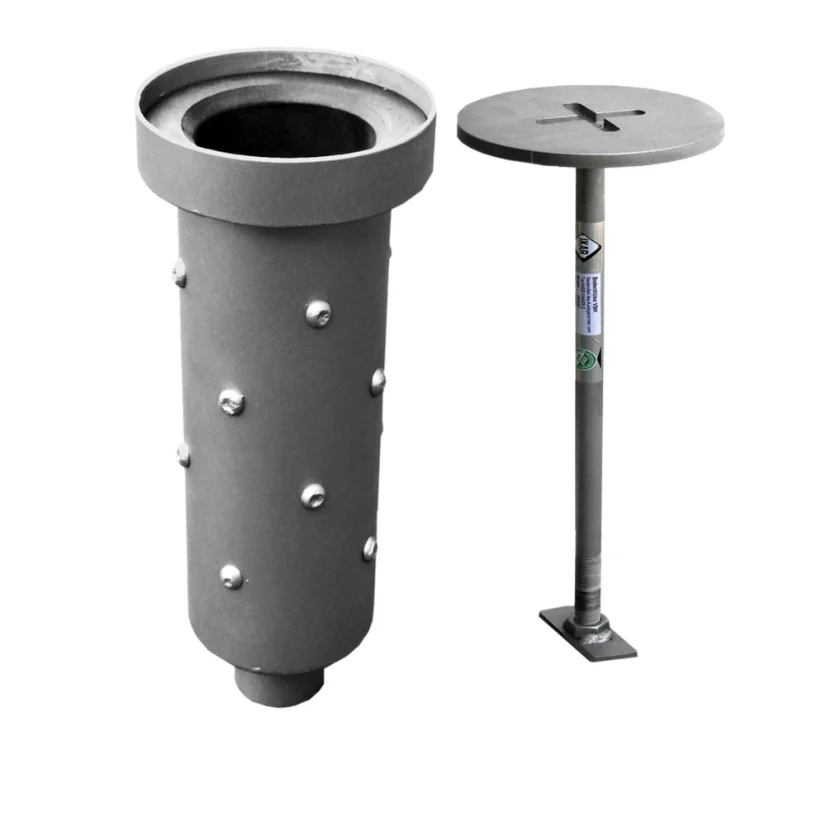

IKAR concrete base is designed for the secure installation of the IKAR ASS-1 davit arm in a core-drilled hole in a concrete structure. The inner part, made of durable polyamide, allows the davit arm to rotate easily.
The base is equipped with a connection to a drainage pipe for water drainage and is fixed in the concrete using non-shrink grout.
Technical parameters
- Use: concrete base for the IKAR ASS-1 davit arm
- Installation method: in a core-drilled hole in concrete
- Fixing: non-shrink grout
- Material: stainless steel 1.4571 (V4A), polyamide
- Dimensions: 160 × 335 mm
- Weight: 4.6 kg
- Water drainage: connection to a drainage pipe
- Standard: EN 795 Type A
- Additional standard: CEN/TS 16415
- Code: X4010XX00
Specifications
| Article MPN | X4010XX00 |
|---|---|
| Certification | EN 795:2012/A , CEN/TS 16415:2013 |
| Weight | 4.6 kg |
| Material | stainless steel , polyamid |
Manufacturer/Importer information
| Manufacturing company | IKAR GmbH |
|---|---|
| Address | Nobelstraße 2, Industriepark West, 36041 Fulda, Germany |
| kontakt@ikar-gmbh.de |
Download
IKAR ASS-1 product data sheet (pdf, 1.6 MB)
