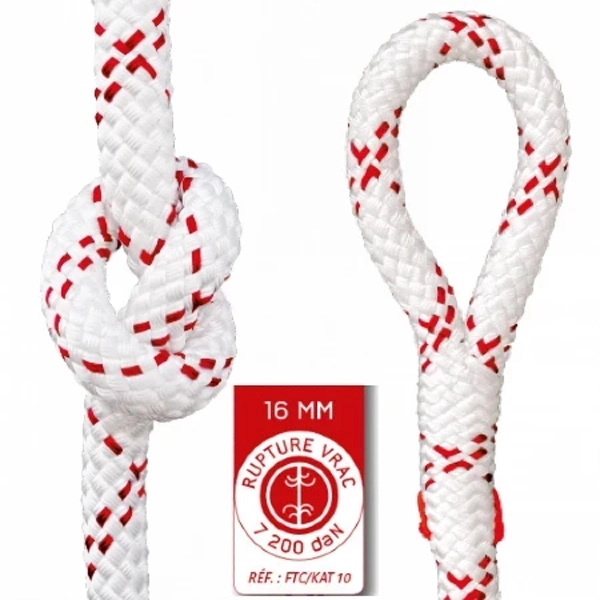

FTC KATUALI 16 mm 72 kN rigging rope
MBS 72 kN || WLL 10 kN || Weight 203 g/m
Variants2
| Length | Availability | Price | Quantity (pc) | |||
|---|---|---|---|---|---|---|
 |
60 m | Within 7 - 10 days | More |
200,09 EUR
165,36 EUR excl. VAT
|
||
|
free length |
In Stock
48 pc in stock
|
More |
4,02 EUR
3,32 EUR excl. VAT
|
The FTC KATUALI rope is a rigging rope with top performance.
The typical properties of this rope are:
- very high resistance of the PES braid
- low elongation
- very good knotability
- suitable for use with all elements for handling loads - pulleys, rings, safebloc
- number 1 in the price/performance ratio - based on resistance and maximum load capacity of the rope
Other product specifications:
- it is possible to weave an eye on the rope, just add >this product< to the order and we will weave the eye for you
- double braid construction
MBS Destructive Load Values - see table
(Note: the MBS value of 10 kN corresponds to a load with a weight of 1000 kg)
Core material: 100% polyester
Braid material: 100% polyester
Certification: Machinery Directive 2006/42/EC
| DIAMETER | WEIGHT | MBS | MBS with splice | COMPOSITION |
| 10 mm (white-orange) | 86 g/m | 30 kN / WLL (coef. 7) : 4,3 kN | 29 kN / WLL (coef. 7) : 4,1 kN | 53 % core / 47 % cover |
| 12 mm (white-blue) | 119 g/m | 42 kN / WLL (coef. 7) : 6 kN | 40 kN / WLL (coef. 7) : 5,7 kN | 53 % core / 47 % cover |
| 14 mm (white-green) | 153 g/m | 55 kN / WLL (coef. 7) : 7,8 kN | 52 kN / WLL (coef. 7) : 7,4 kN | 53 % core / 47 % cover |
| 16 mm (white-red) | 203 g/m | 72 kN / WLL (coef. 7) : 10 kN | 70 kN / WLL (coef. 7) : 10 kN | 53 % core / 47 % cover |
| 18 mm (white-black) | 256 g/m | 86 kN / WLL (coef. 7) : 12,2 kN | 78 kN / WLL (coef. 7) : 11 kN | 53 % core / 47 % cover |
| Article MPN | 13302 |
|---|---|
| Certification | Machinery Directive 2006/42/EC |
| Length | 60 m , free length |
| Weight | 203 g/m |
| Material | polyester |
| Breaking load (MBS) | 72 kN |
| Working load (WLL) | 10 kN |
| Diameter | 16 mm |
| Manufacturing company | FTC TREE SAS |
|---|---|
| Address | 230 route de l’Éculaz, 74930 Reignier-Ésery, France |
