ARBPRO OMNIX Eye&Pin swivel
Country of origin: ItalyMBS 24 kN || WLL 3 kN || Weight 70 g || Dimensions 75 × 37 × 27 mm

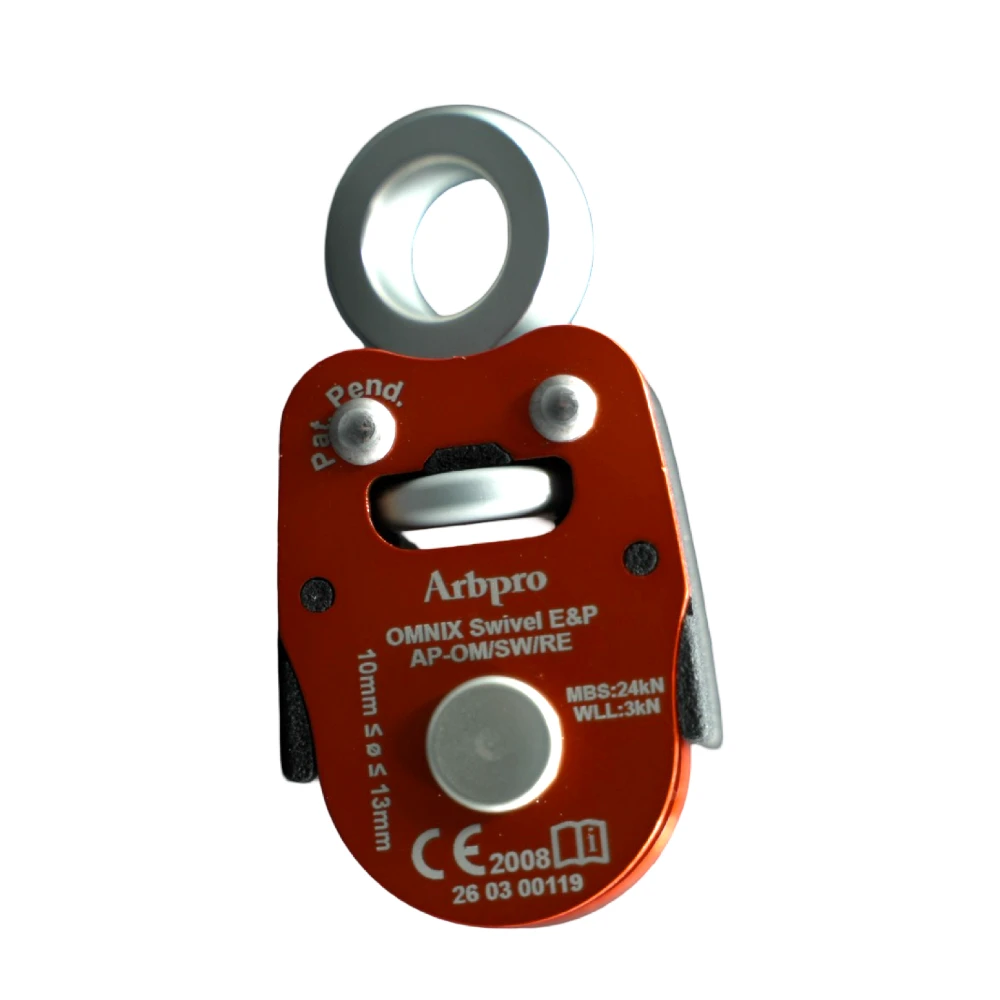

The ARBPRO OMNIX Eye&Pin is a professional swivel connector designed for arboriculture, rope access, work positioning, and rescue systems. It combines compact dimensions, low weight, and high strength with a practical removable pin system that allows direct connection to sewn or spliced textile eyes.
The Eye&Pin construction features a standard swivel eye on one side and a removable pin on the other side for more permanent attachment to ropes or slings. The integrated swivel mechanism enables smooth rotation around the main axis even under load and helps eliminate twisting of ropes, connectors, and other equipment within the system.
The OMNIX Eye&Pin is designed for professional use in demanding arborist and rope access environments. Its lightweight and compact body minimizes system bulk while maintaining high mechanical durability for everyday use.
The body is manufactured from aluminium, steel, and polyamide. The manufacturer recommends regular inspection of the device, including checking free rotation and periodic lubrication with silicone oil to maintain smooth operation.
The device is certified according to PPE-R/11.135 and complies with EN 12275, EN 362, EN 365, EN 795:2012, EN 354:2010, and EU Regulation 2016/425. The product is developed and manufactured in Italy.
Key features
- Professional swivel connector
- Eye&Pin construction with removable pin
- Smooth rotation around the main axis
- Reduces rope and equipment twisting
- Allows direct connection to sewn or spliced eyes
- Compact and lightweight construction
- Low weight of only 70 g
- Durable construction for daily professional use
- Suitable for arboriculture and rope access
- Made in Italy
Technical specifications
- Type: swivel connector
- Construction: Eye&Pin
- MBS: 24 kN
- WLL: 3 kN
- Dimensions: 75 × 37 × 27 mm
- Weight: 70 g
- Compatible rope / sling diameter: 10–13 mm
- Material: aluminium / steel / polyamide
- Certification: PPE-R/11.135, EN 12275, EN 362, EN 365, EN 795:2012, EN 354:2010, EU 2016/425
- Operating temperature: −20 °C to +50 °C
- Recommended service life: 10 years
- Application: arboriculture, rope access, work positioning, rescue systems
- Compatibility: textile ropes and slings with 10–13 mm diameter
| Article MPN | AP-OM/SW/RE |
|---|---|
| Certification | EN 362 , EN 354:2010 , EN 795:2012 , EU 2016/425 , PPE-R/11.135 , EN 365 , EN 12275 |
| Weight | 70 g |
| Material | aluminum, steel, polyamide |
| Breaking load (MBS) | 24 kN |
| Working load (WLL) | 3 kN |
| Rope Diameter | 10 - 13 mm |
| Lifespan | 10 years |
| Manufacturing company | ARBPRO s.r.l. |
|---|---|
| Address | Via L. Galvani 12, 20836 Capriano di Briosco (Monza e della Brianza), Italy |
