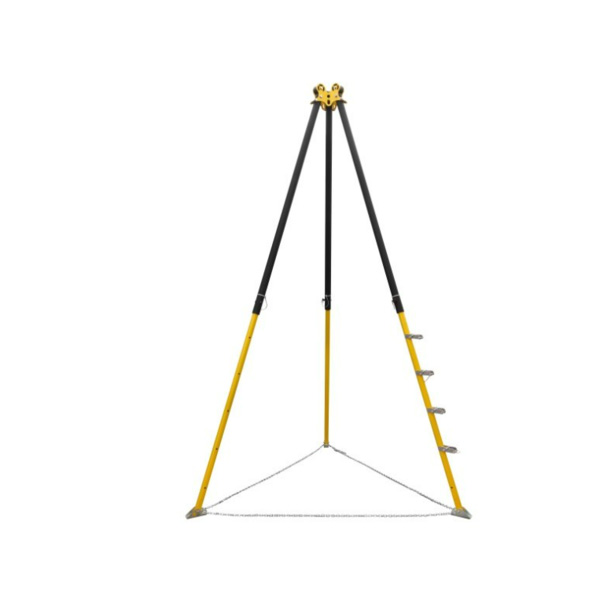

Tripod LANEX TM 15
Height 3.13 m || Diameter of the hole under the tripod 1.74 m || Leg spacing 1.49 m || Weight 28.7 kg || Load capacity 1000 kg || Up to 3 people at the same time
The TM15 lightweight aluminum safety tripod provides protection for up to 3 people at the same time.
Product Specifications:

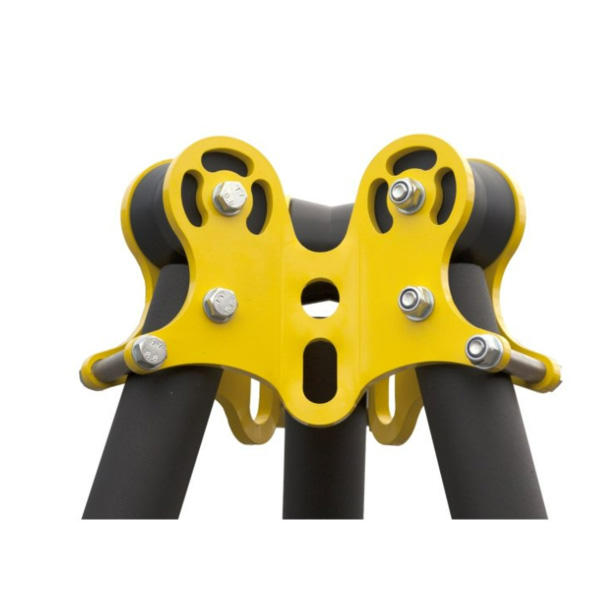

- aluminum head equipped with 3 polyamide rollers with ball bearings for guiding the work rope of RUP and CRW evacuation devices
- equipped with 3 anchor points located on the side walls of the head
- anchor points can be used as an anchor point for fall protection equipment
- each point can be used by only 1 user at a time

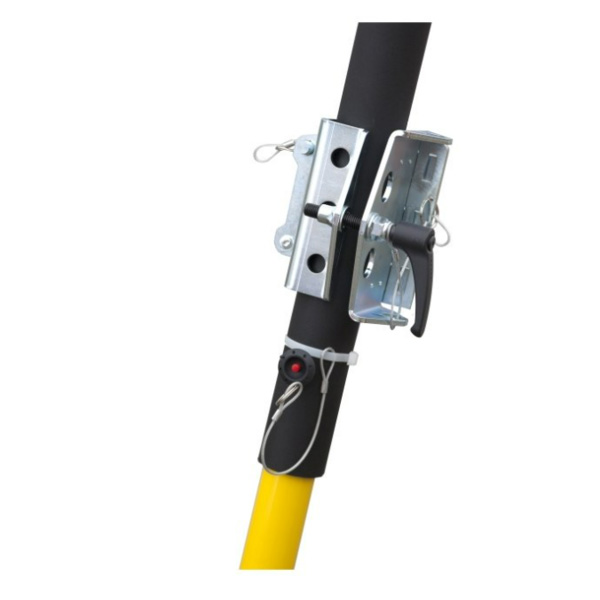

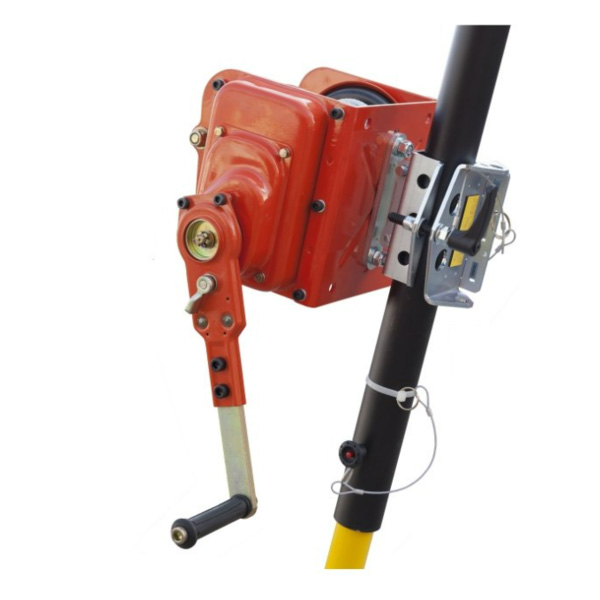

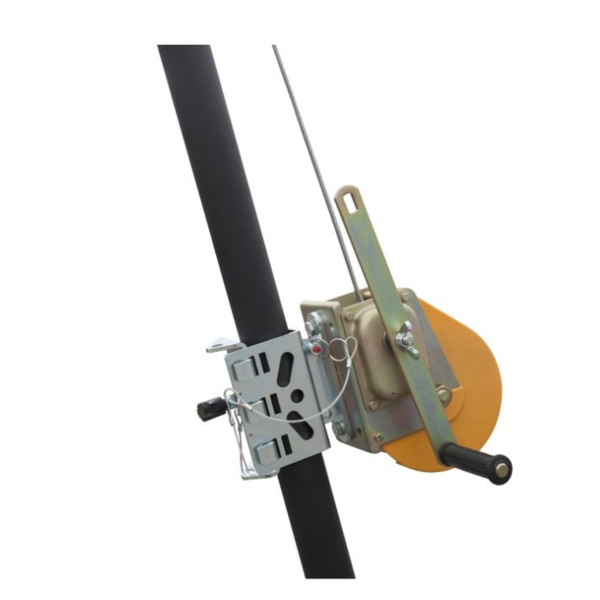

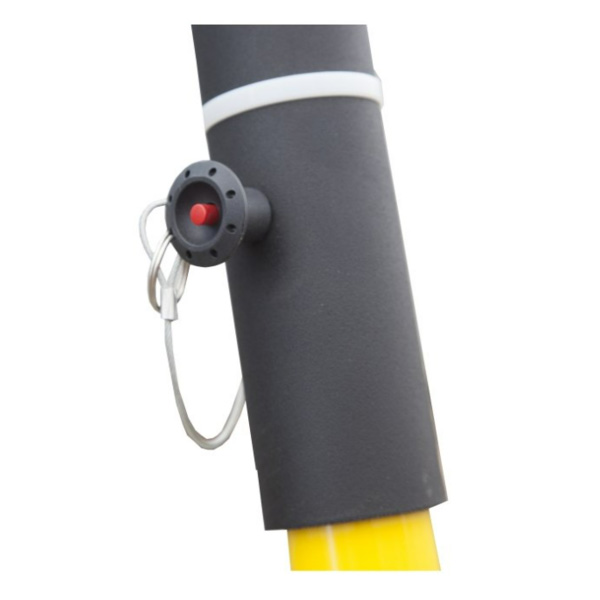

- the above-mentioned evacuation devices can be attached to each of the three telescopic aluminum legs using the universal UTB holder
- each telescopic leg is finished with a foot made of galvanized steel with a rubber pad
- each foot is equipped with teeth that are inserted after a suitable rotation of the foot relative to the leg
into loose or slippery ground (earth, sand, gravel, ice, snow)
Height: 313 cm
Diameter of the opening under the tripod: 174 cm
Leg spacing: 149 cm
Device weight: 28.7 kg
Anchor points on the head: 3
Lifting/lowering: max. 3 people
Dimensions: 226 x 33 x 29 cm
Certification: EN 795 B
| Article MPN | XPSTM15 |
|---|---|
| Weight | 28,7 kg |
| Load capacity | 1000 kg |
| Number of users | 3 |
| Diameter of the hole under the tripod | 1,74 m |
| Spacing of legs | 1,49 m |
| Height | 3,13 m |
| Manufacturing company | LANEX a. s. |
|---|---|
| Address | Hlučínská 96/1, 747 23 Bolatice, Česká republika |
