Rope length: 25 m, 35 m, 45 m
Weight: 22.5 kg, 24 kg, 25.5 kg
Permissible working load: 200 kg
Limit load (MBS): 21 kN
Maximum load that the device can transfer to the structure during operation: 10 kN
Required hand strength: 10 kg
Mechanism gear ratio: 7:2:1
Handle length: 300 mm
Rope diameter: 6.3 mm
Certification: EN 1496 B

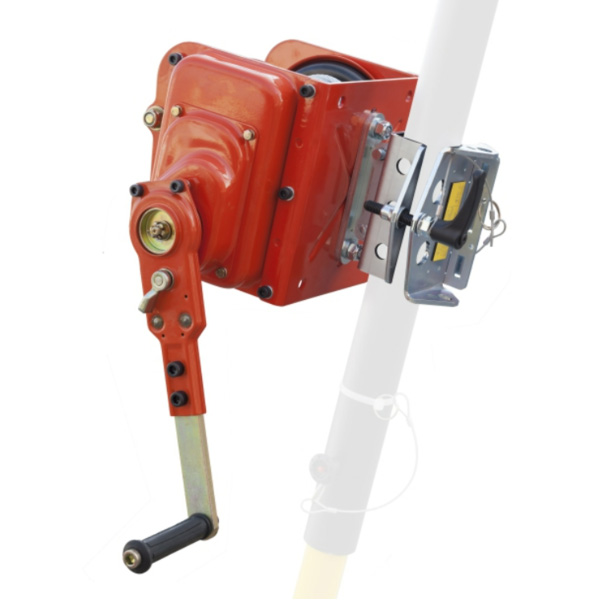

The RUP503-U device consists of:
a) the main winch with a drum on which a working rope with a diameter of 6.3 mm is wound
b) SDW spring damper with AZ011 couplings
c) removable part of the handle

Product specifications:
- the evacuation lifting and lowering device RUP 503U is part of the rescue equipment
- the device can be used to lift the injured person from a lower to a higher level or lower him from a higher to a lower level
- the lowering distance must not exceed 2 m
- the RUP503-U can be connected to many devices using universal brackets
- the device is equipped with a UTB coupling
