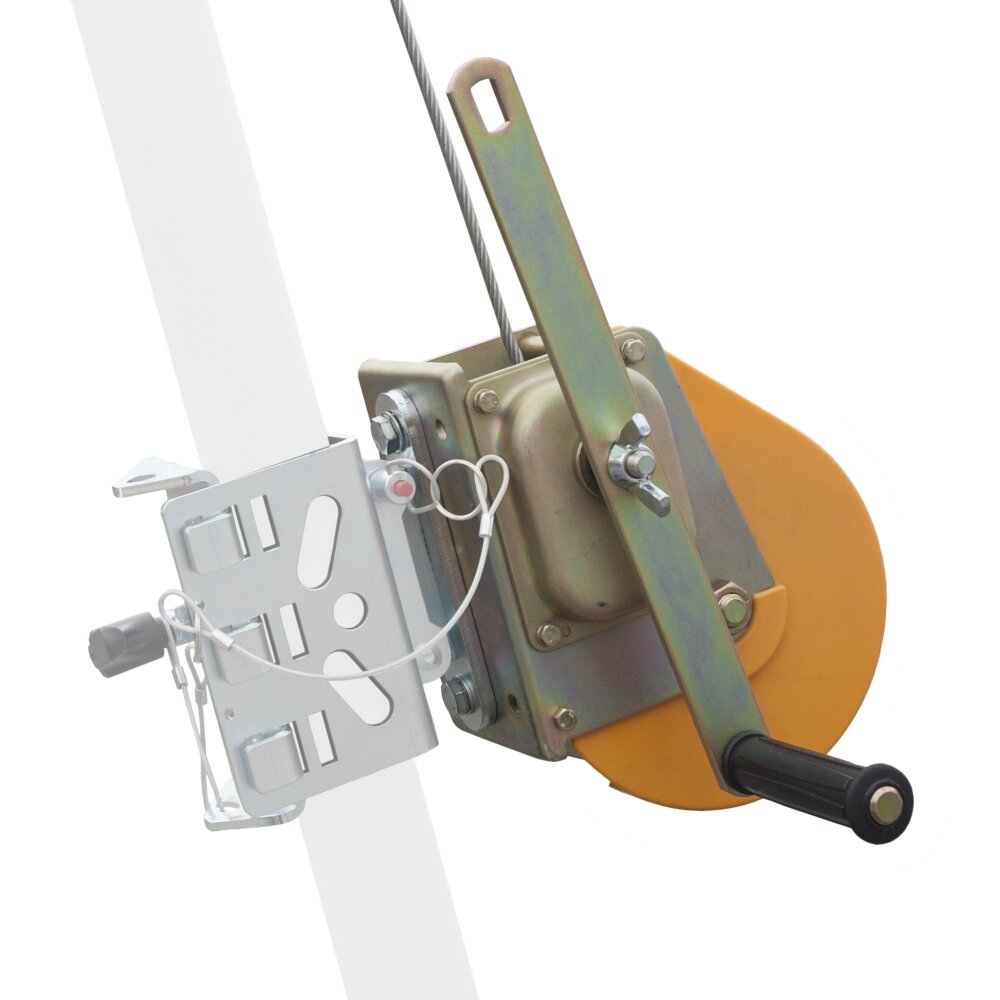

The PROTEKT RUP 502-U lifting and lowering evacuation device is designed for lifting and lowering persons during evacuation. It enables raising an injured person from a lower level to a higher level or controlled lowering from a higher level downwards. The descent distance must not exceed 2 m.

The device is equipped with an automatic friction brake ensuring controlled movement during operation.

The winch is supplied with a 20 / 25 m steel rope with a diameter of 6.3 mm.

Main features:
• designed for evacuation and rescue of persons
• protection for a maximum user weight of 140 kg (including equipment and tools)
• suitable for use in explosion-hazard environments
• gear mechanism 5:1
• two crank length options for torque adjustment
• equipped with an automatic friction brake
• compatible with PIMS system (optional RFID/NFC transponder)
• spring absorber SDW

Technical information and parameters:
Standard: EN 1496/B

WLL: 140 kg
MBS: 20 kN
Safety factor: 10:1
Weight: 13.35 kg

Crank length – option 1: 300 mm
Required pulling force – option 1: 5.6 kg
Crank length – option 2: 150 mm
Required pulling force – option 2: 11.6 kg

Gear ratio: 5:1
Winding speed: approx. 4.0 m/min

Rope length: 25 m
Rope diameter: 6.3 mm

Material: galvanized steel, plastic
