CMC PROSWIVEL PMP 2.6" pulley
Country of origin: USA
Article MPN: 300436
Integrated swivel || MBS 70 kN || Weight 841 g || For ropes up to 13 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

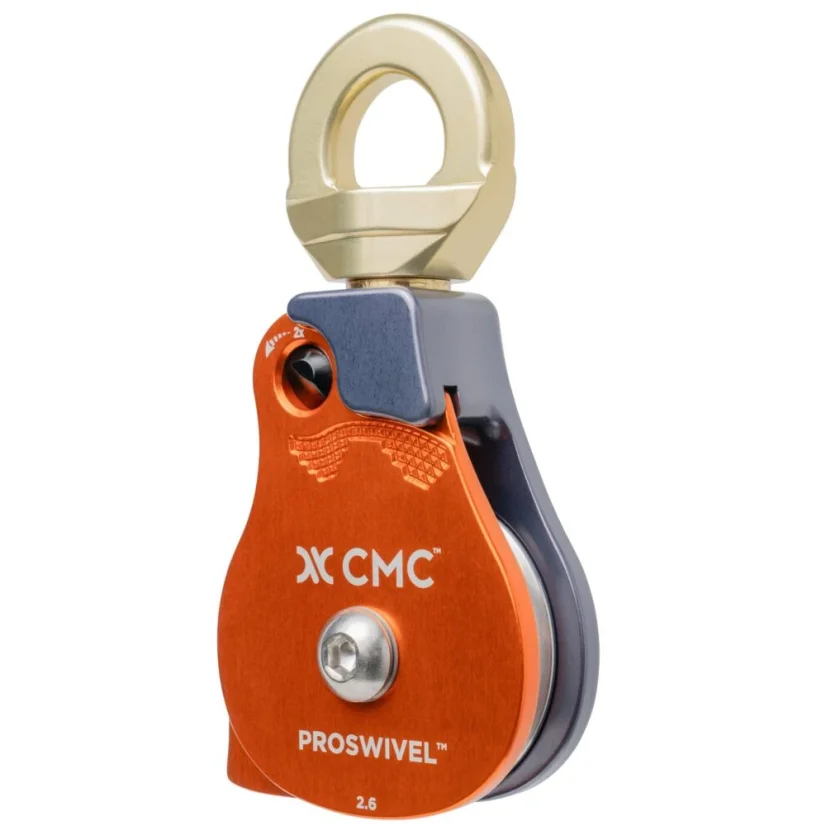

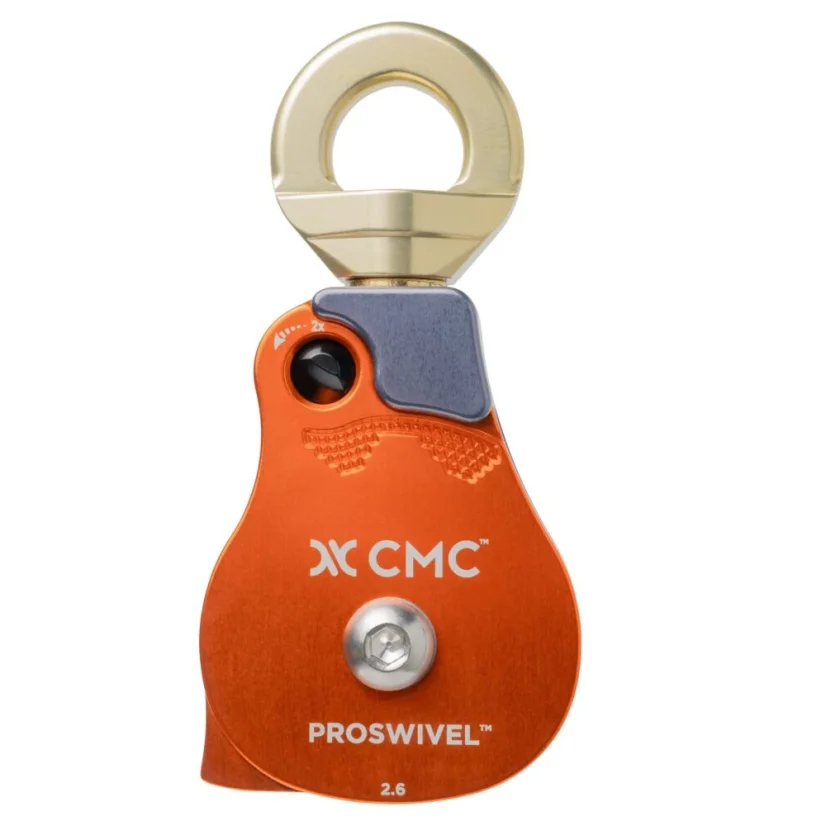

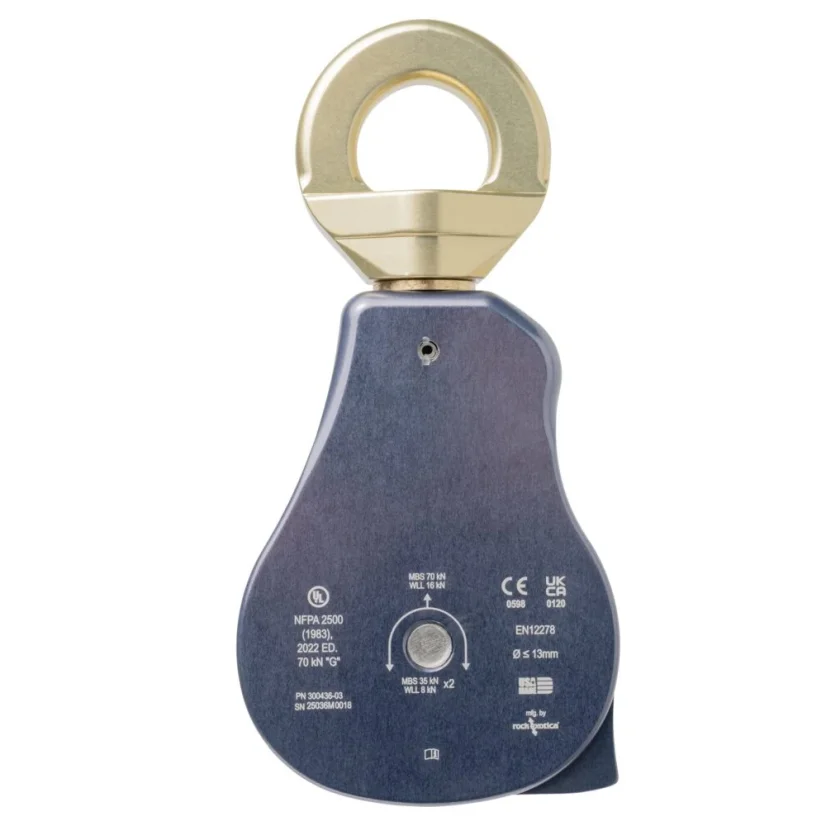

The CMC PROSWIVEL PMP 2.6" is a compact professional single pulley with an integrated swivel, designed for rescue, rope access and arborist applications. Combining a pulley and swivel into one device helps reduce rope twisting, shortens overall system length and improves handling under load.
The opening sideplate allows quick rope installation without disconnecting the pulley from the anchor point. The sheave runs on sealed ball bearings for smooth operation and high efficiency during rope work. Compact dimensions and low weight make it suitable for lightweight rigging and rescue systems.
Main features
- Single pulley with integrated swivel
- Reduces rope twisting under load
- Opening sideplate for easy rope installation
- Double-action locking mechanism
- Sealed ball bearings
- Compact and lightweight construction
- Prusik minding design for progress capture systems
- Compatible with ropes up to 13 mm
Technical specifications
- Sheave diameter: 66 mm / 2.6"
- Type: single swivel pulley
- Bearings: sealed ball bearings
- Sheave material: aluminium
- Maximum rope diameter: 13 mm
- Dimensions: 191 X 93 mm
- Weight: 841 g
- MBS: 70 kN
- WLL: 16 kN
- NFPA classification: General Use
- Standard: EN 12278
- Colour: bronze / slate
- Manufacturer reference: 300436
- Manufacturer: CMC Rescue
Specifications
| Article MPN | 300436 |
|---|---|
| Certification | EN 12278 , NFPA 1983 General use |
| Weight | 841 g |
| Material | aluminium |
| Breaking load (MBS) | 70 kN |
| Working load (WLL) | 16 kN |
| Rope Diameter | ≤ 13 mm |
Manufacturer/Importer information
| Manufacturing company | CMC Rescue, Inc. |
|---|---|
| Address | 6740 Cortona Drive, Goleta, CA 93117, USA |
| info@cmcpro.com |
Download
CMC PROSWIVEL product sheet (pdf, 1.4 MB)
CMC PROSWIVEL manual (pdf, 2.3 MB)
CMC PROSWIVEL manual text (pdf, 1004.3 kB)
CMC PROSWIVEL declaration of conformity - UKCA (pdf, 682.6 kB)
CMC PROSWIVEL declaration of conformity (pdf, 678.4 kB)
