CMC PROSWIVEL PMP 2.0" double pulley
Country of origin: USA
Article MPN: 300438
Integrated swivel || MBS 36 kN || Weight 585 g || For ropes up to 13 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

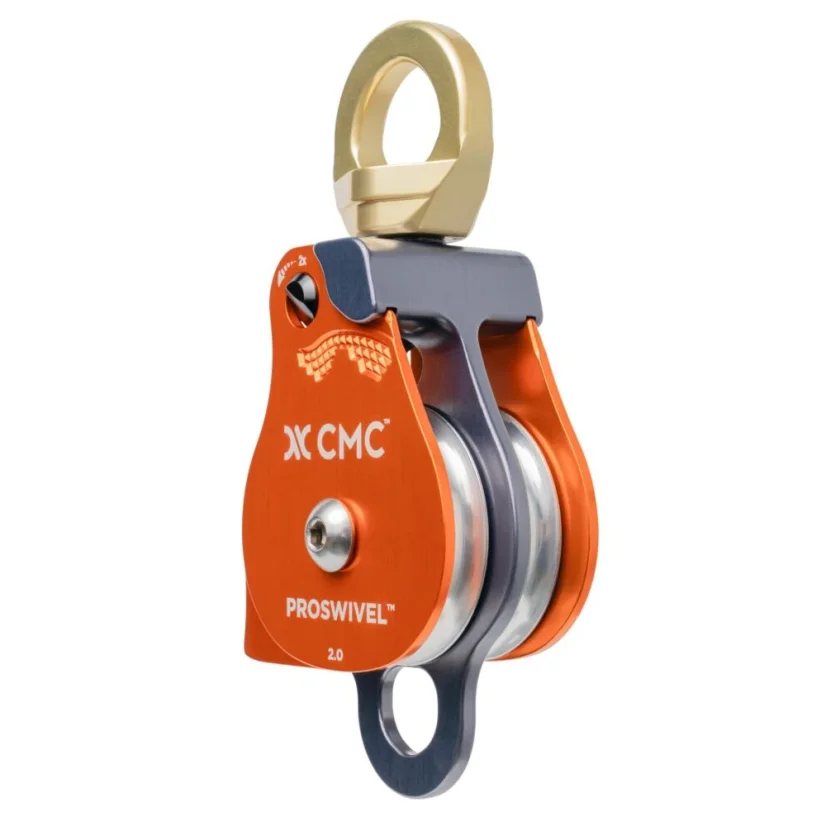

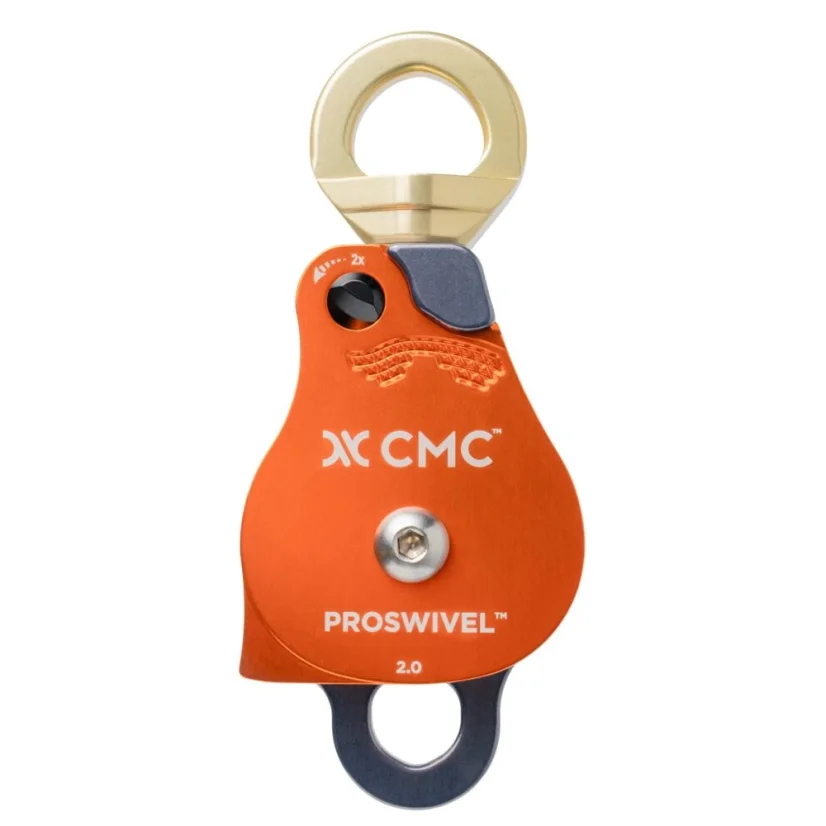

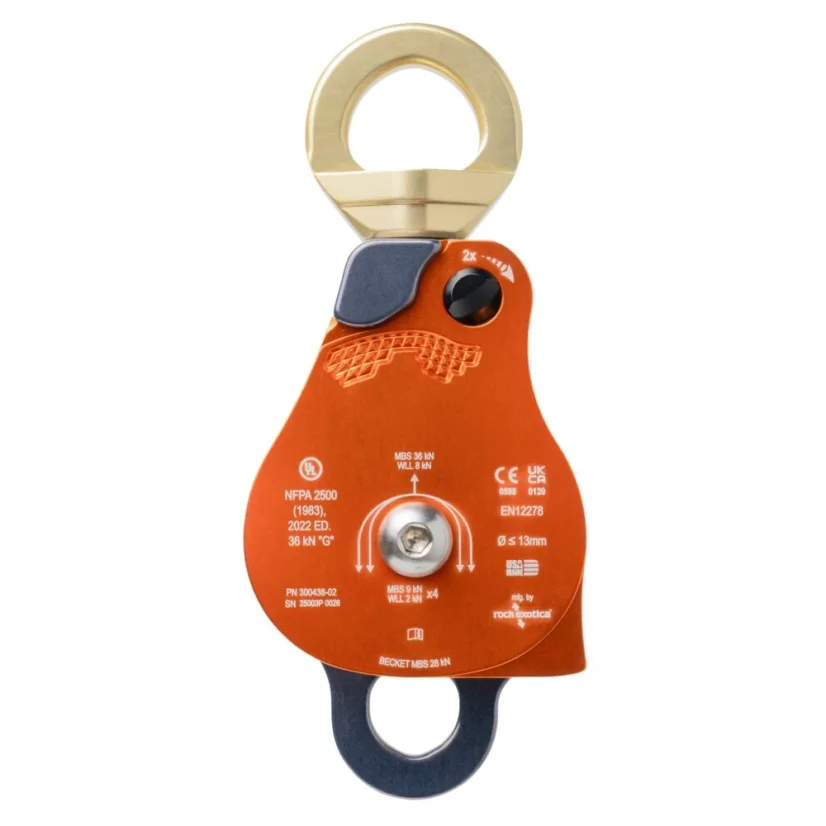

The CMC PROSWIVEL 2.0" is a compact double pulley with an integrated swivel, designed for rescue, rope access and lightweight rigging systems. The double-sheave design enables efficient hauling systems and rope redirects while maintaining compact system dimensions.
The integrated swivel helps reduce rope twisting under load and improves system orientation during use. Opening sideplates allow quick rope installation without disconnecting the pulley from the anchor point. The sheaves run on sealed ball bearings for smooth operation and high efficiency during rope work.
Main features
- Double pulley with integrated swivel
- Suitable for hauling systems and rope redirects
- Reduces rope twisting under load
- Opening sideplates for easy rope installation
- Double-action locking mechanism
- Sealed ball bearings
- Compact construction
- Prusik minding design for progress capture systems
- Compatible with ropes up to 13 mm
Technical specifications
- Sheave diameter: 51 mm / 2.0"
- Type: double swivel pulley
- Bearings: sealed ball bearings
- Sheave material: aluminium
- Maximum rope diameter: 13 mm
- Dimensions: 180 × 76 mm
- Weight: 585 g
- MBS: 36 kN
- WLL: 8 kN
- Becket MBS: 26 kN
- NFPA classification: General Use
- Standard: EN 12278
- Colour: bronze / slate
- Manufacturer reference: 300438
- Manufacturer: CMC Rescue
Specifications
| Article MPN | 300438 |
|---|---|
| Certification | EN 12278 , NFPA 1983 Technical Use |
| Weight | 415 g |
| Material | aluminium |
| Breaking load (MBS) | 36 kN |
| Working load (WLL) | 8 kN |
| Rope Diameter | ≤ 13 mm |
| Becket MBS | 26 kN |
Manufacturer/Importer information
| Manufacturing company | CMC Rescue, Inc. |
|---|---|
| Address | 6740 Cortona Drive, Goleta, CA 93117, USA |
| info@cmcpro.com |
Download
CMC PROSWIVEL product sheet (pdf, 1.4 MB)
CMC PROSWIVEL manual (pdf, 2.3 MB)
CMC PROSWIVEL manual text (pdf, 1004.3 kB)
CMC PROSWIVEL declaration of conformity - UKCA (pdf, 682.6 kB)
CMC PROSWIVEL declaration of conformity (pdf, 678.4 kB)
