CMC PROSWIVEL PMP 2.0" pulley
Country of origin: USA
Article MPN: 300437
Integrated swivel || MBS 36 kN || Weight 349 g || For ropes up to 13 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

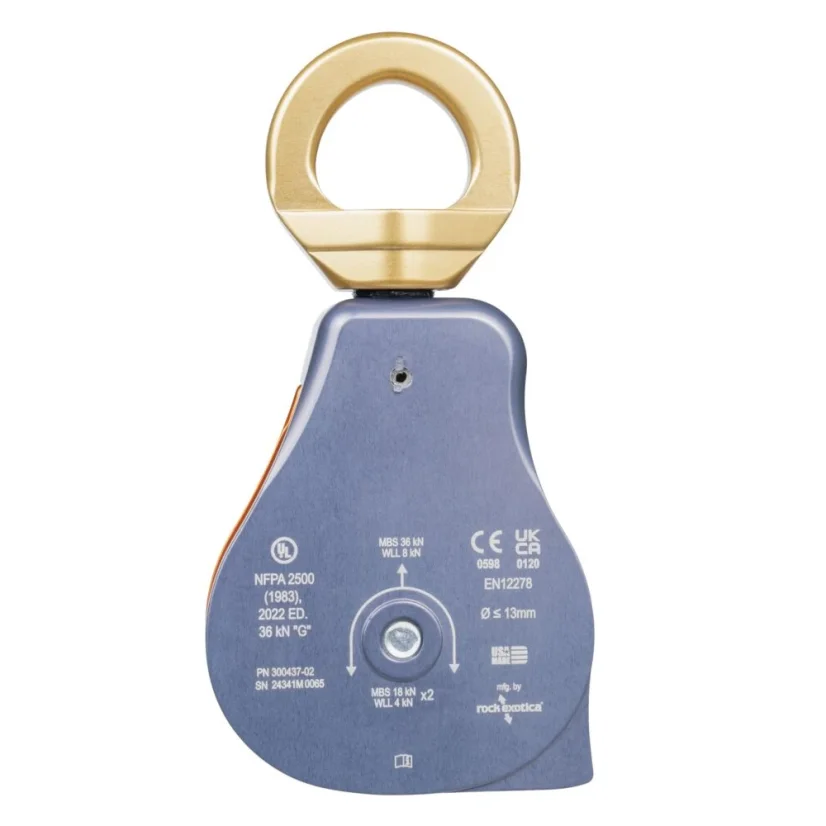

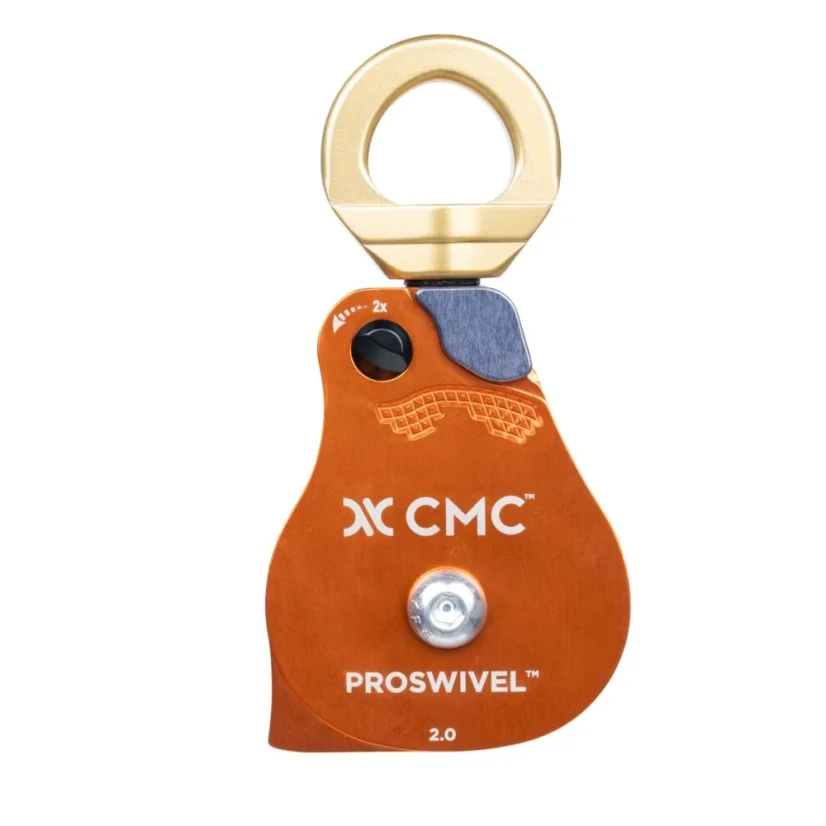

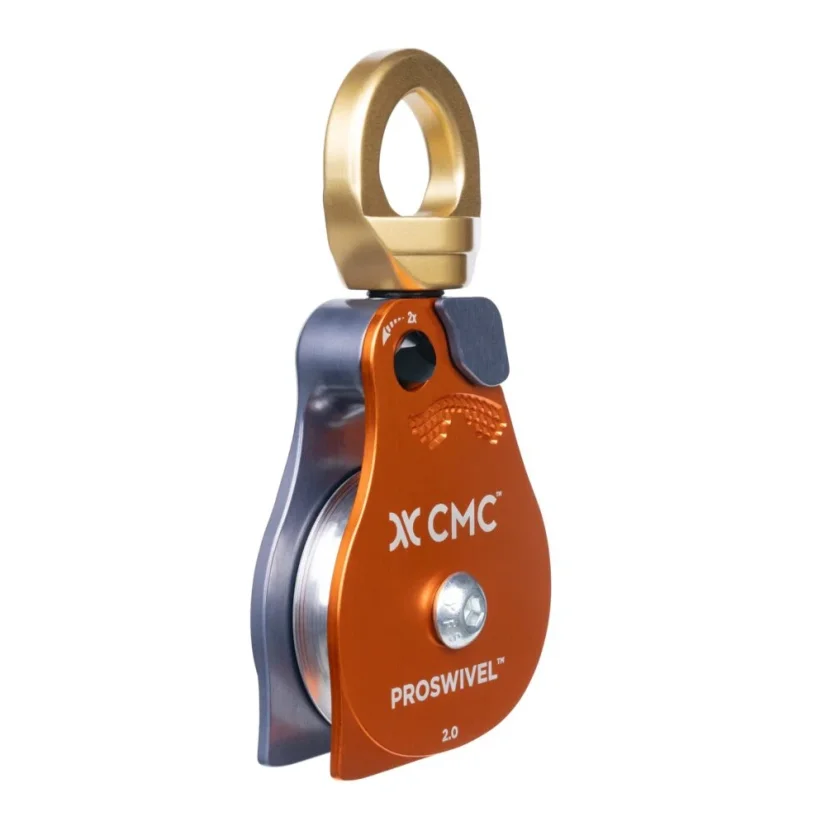

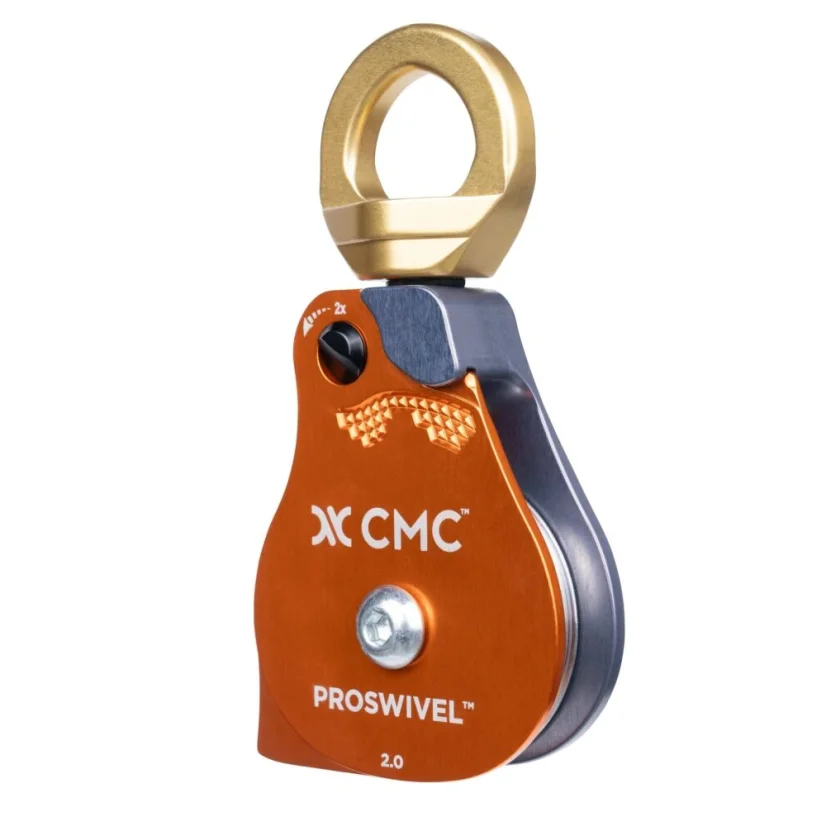

CMC PROSWIVEL PMP 2.0" is a compact professional single pulley with an integrated swivel, designed for rope access, rescue and arborist applications. Combining a pulley and swivel in one device helps reduce rope twisting, shortens the system and simplifies handling under load.
The opening sideplate allows quick rope installation without disconnecting the pulley from the anchor point. The sheave with sealed ball bearings ensures smooth operation and high efficiency during rope work. Its compact dimensions and low weight make it suitable for lightweight rigging and rescue systems.
Technical specifications
- Sheave diameter: 51 mm / 2.0"
- Type: single pulley with swivel
- Bearings: sealed ball bearings
- Sheave material: aluminium
- Maximum rope diameter: 13 mm
- Dimensions: 148 X 76 mm
- Weight: 349 g
- MBS: 36 kN
- WLL: 8 kN
- NFPA classification: General Use
- Standard: EN 12278
- Colour: bronze / slate
- Manufacturer reference: 300437
- Manufacturer: CMC Rescue
Specifications
| Article MPN | 300437 |
|---|---|
| Certification | EN 12278 , NFPA 1983 General use |
| Weight | 349 g |
| Material | aluminium |
| Breaking load (MBS) | 36 kN |
| Working load (WLL) | 8 kN |
| Rope Diameter | ≤ 13 mm |
Manufacturer/Importer information
| Manufacturing company | CMC Rescue, Inc. |
|---|---|
| Address | 6740 Cortona Drive, Goleta, CA 93117, USA |
| info@cmcpro.com |
Download
CMC PROSWIVEL product sheet (pdf, 1.4 MB)
CMC PROSWIVEL manual (pdf, 2.3 MB)
CMC PROSWIVEL manual text (pdf, 1004.3 kB)
CMC PROSWIVEL declaration of conformity - UKCA (pdf, 682.6 kB)
CMC PROSWIVEL declaration of conformity (pdf, 678.4 kB)
