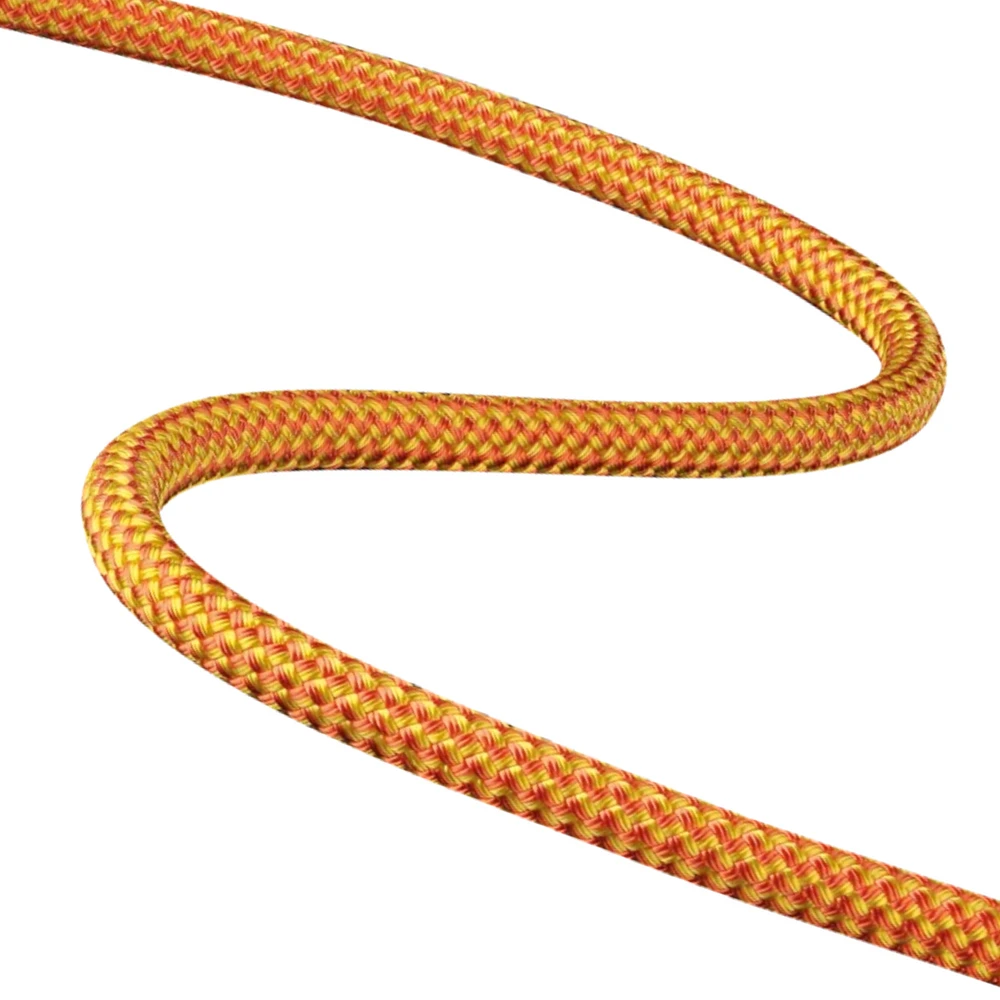

TEUFELBERGER arborWINCH rope 12 mm 70 kN
Winch rope with Dyneema® SK78 core and polyester cover || MBS 70 kN || Diameter 12 mm || 32-strand construction
TEUFELBERGER arborWINCH is a synthetic winch rope designed for arboriculture, forestry and work with forestry winches.
The rope construction uses a Dyneema® SK78 core and a polyester cover with a 32-strand construction. This combination provides high strength at low weight and good abrasion resistance during work in the field.
The rope is designed for use in winching systems when pulling logs, handling timber and other forestry applications. Low weight and high strength allow it to be used as a lighter alternative to steel wire ropes.
The special rope construction limits core movement relative to the cover under load, which contributes to longer service life when used with winches.
The rope meets the requirements of the Machinery Directive 2006/42/EC for use in mechanical equipment.
Use: winching systems, pulling logs, timber handling
Technical information
Diameter: 12 mm
Construction: 32 strands
Core material: Dyneema® SK78
Cover material: polyester
Min. strength (MBS): 70 kN
Min. strength with splice: 57 kN
Weight: approx. 98 g/m
Certification: Machinery Directive 2006/42/EC
Rope type: synthetic winch rope
Sale: by the meter
| Kod produktu | 954120120 |
|---|---|
| Orzecznictwo | Dyrektywa Maszynowa 2006/42/WE |
| Waga | 98 g/m |
| Tworzywo | Rdzeń: Dyneema , Oplot: poliester |
| Obciążenie zrywające (MBS) | 70 kN |
| Liczba źródeł | 32 |
| Średnia | 12 mm |
| Firma produkcyjna | TEUFELBERGER Seil GmbH |
|---|---|
| Adres | Böhmerwaldstraße 20, 4600 Wels, Austria |
