Weight: 40.8 kg
Height: variable - max. 3 m
Width: variable
MBS limit load: 36 kN - exact parameters according to configuration are part of the manual
WLL load limit: 900 kg
Certification: CE 795:2012 Type B certification - for 2 people, NFPA 1983 G - 2017

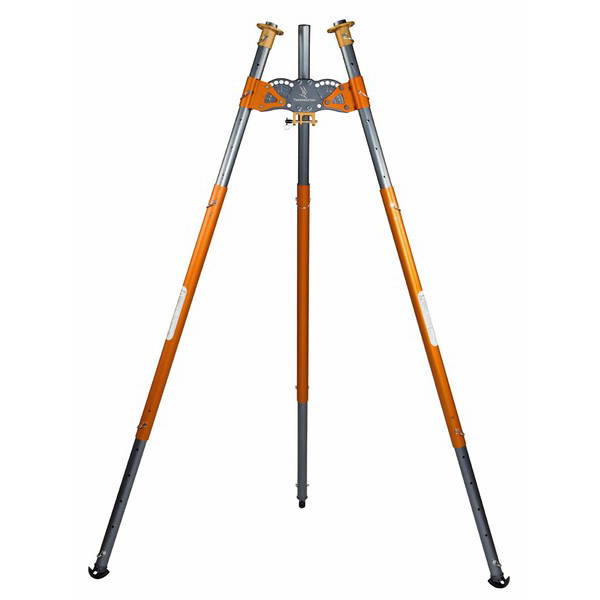

Professional rescue tripod with the possibility of changing the angle of the legs thanks to the unique modular central head.
In low configurations, the ultimate strength exceeds 55 kN.
The indicated load of 36 kN is guaranteed for all configurations (A-frame, Side-frame, ...), which you can find in the user manual.

If you purchase this tripod, we offer and highly recommend user training.

Contact us for more information.

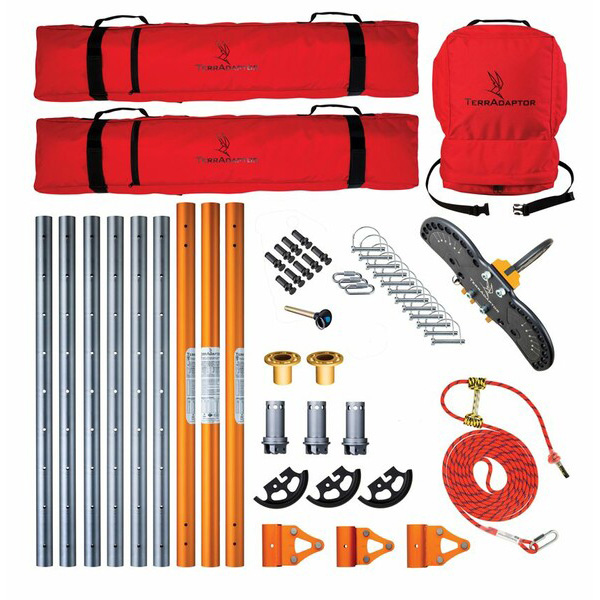

The SMC TERRADAPTOR Rescue tripod set includes the following components:

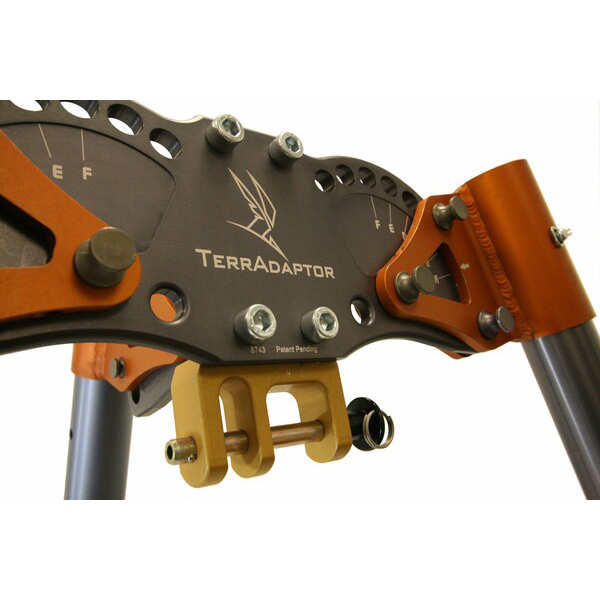

TerrAdaptor™ modular head
2 offset foot clamps each with 3 locking load pins
Main connection pin
Sets of 3 legs complete with modular adapters (angle change)
3 x cradle ends
3 x Center Foot Clamp with 3 Locking Pins (for each)
3 x Hobble rope configuration to secure the legs
1 x Set of cotter pins + 1 spare
3 x Clutch for legs
2 rigging plate heads with 1 connecting pin (for each)
1 x TerrAdaptor™ head transport bag incl. accessories
2 x TerrAdaptor™ transport leg bag
TerAdaptor™ User Guide
