Rescue set HARKEN LOKHEAD WINCH 500 KIT

Rescue set HARKEN LOKHEAD WINCH 500 KIT

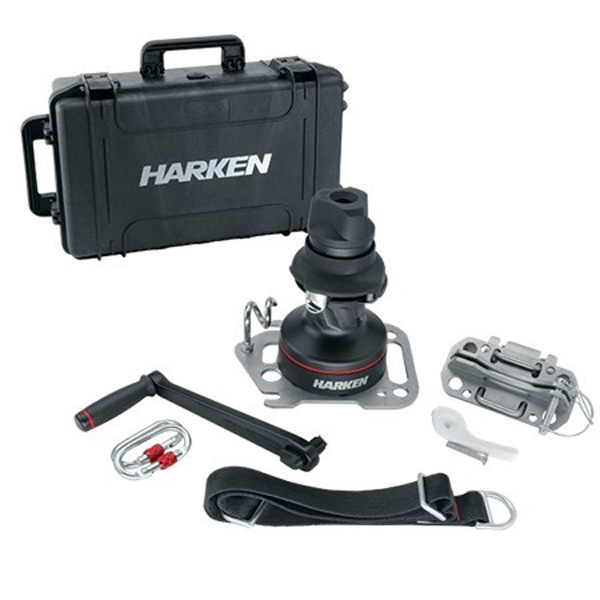

Rescue set HARKEN LOKHEAD WINCH 500 KIT includes:

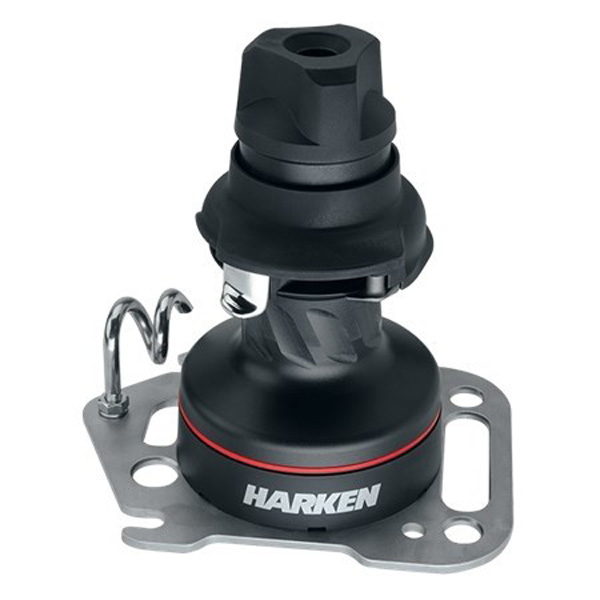

- LokHead winch with mounting plate

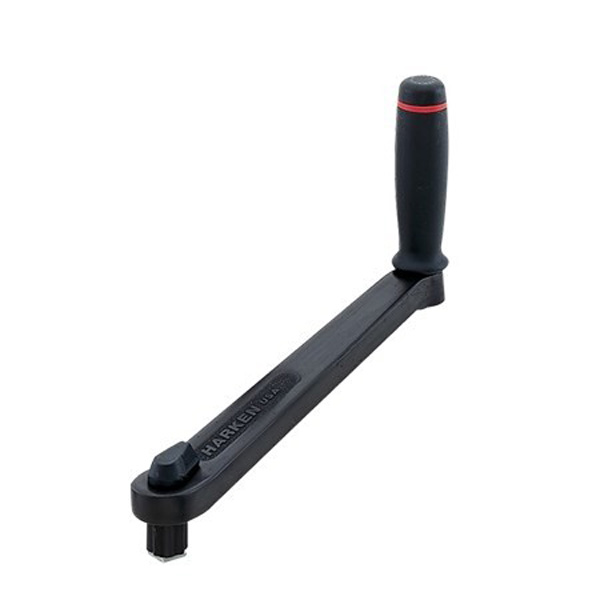

- winch handle
- tripod adapter
- control handle of the LokHead mechanism
- adjustable connecting loop
- 2 steel carabiners

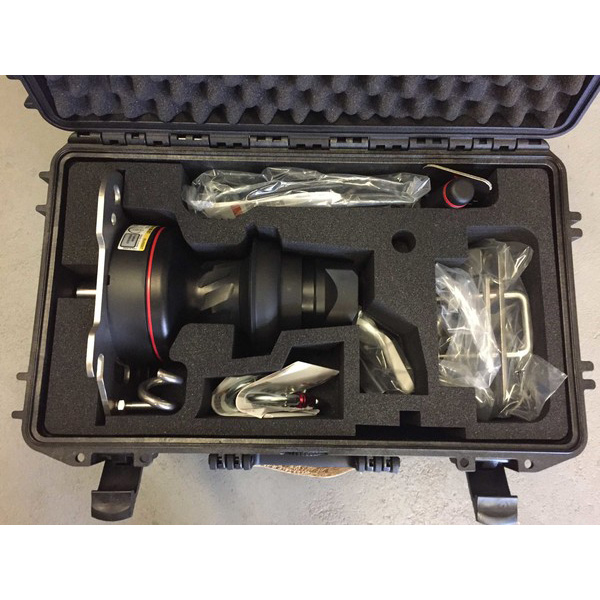

- waterproof carrying case

Device parameters:
Minimum rope Ø: 11 mm
Maximum rope Ø: 12.5 mm
Weight: 13.6 kg
Weight of the reel itself: 5.6 kg
Maximum working load WLL for loads: 5.0 kN
Maximum working load WLL for loads: 500 kg
Maximum working load WLL for people: 2.2 kN
Maximum working load WLL for people: 220 kg
Maximum input speed: 60 rpm
For use with CE 1891:1998 type A certified ropes

Mechanical advantage: 13.50: 1st - 1st gear / 39.90: 1st - 2nd gear
Gear ratio: 2.13:1 - 1st gear / 6.28:1 - 2nd gear

Reel weight: 4.2 kg (9.25 lb)
Reel handle weight: 0.5 kg (1.10 lb)
Weight of motherboard with adapter: 2.8 kg (6.17 lb)
Tripod adapter: 2.2 kg (4.85 lb)
Reel dimensions Ø : 311 x 157 mm (12.24" x Ø6.18")
Recommended working temperature range: -20°C +50°C
