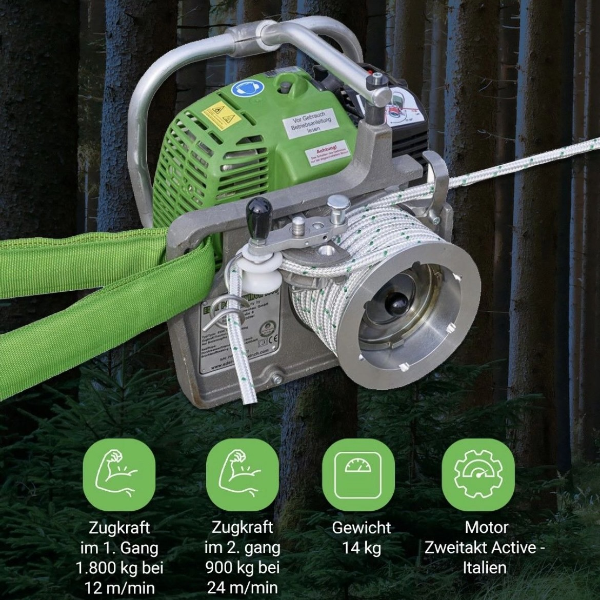

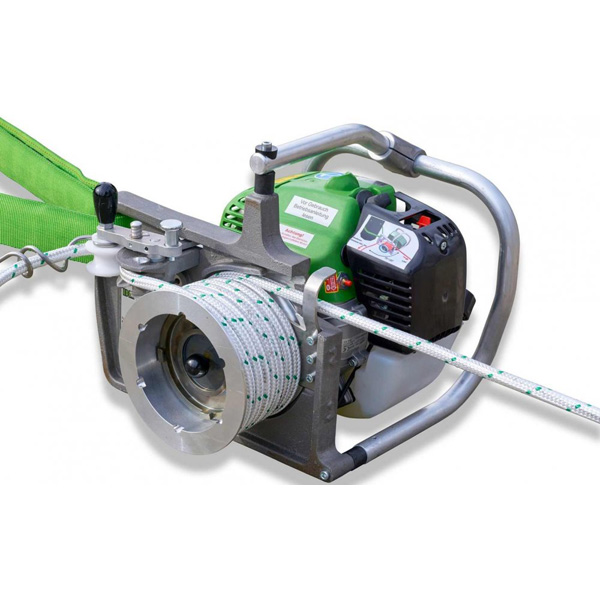

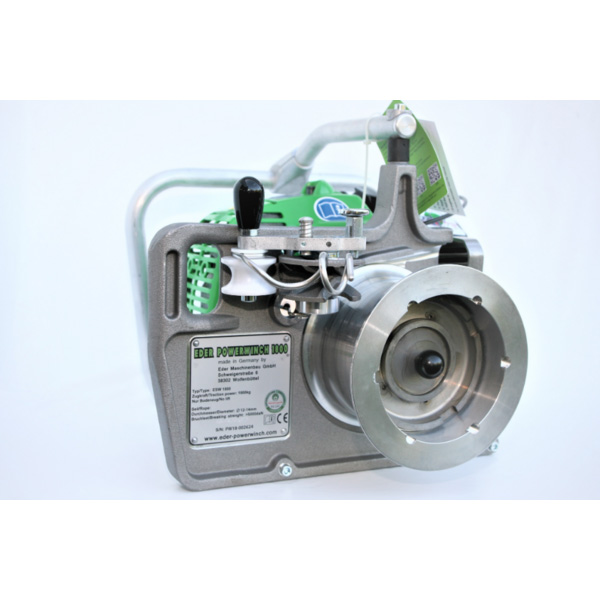

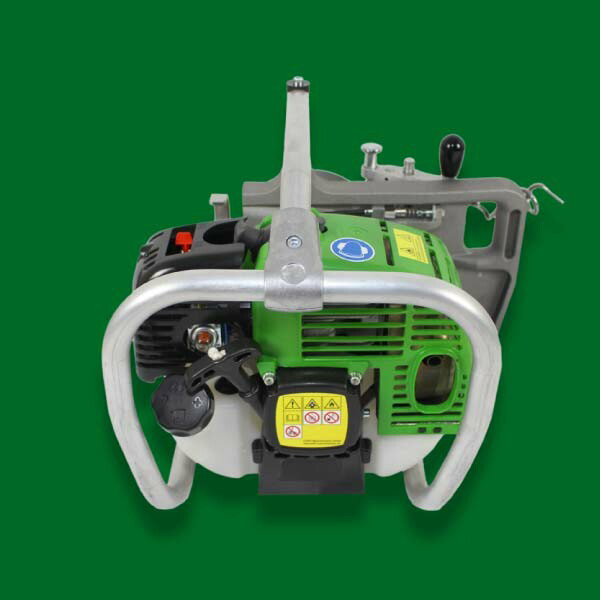

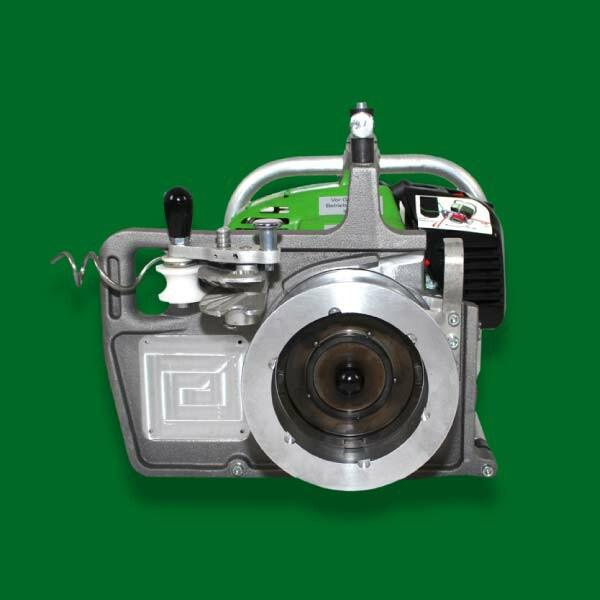

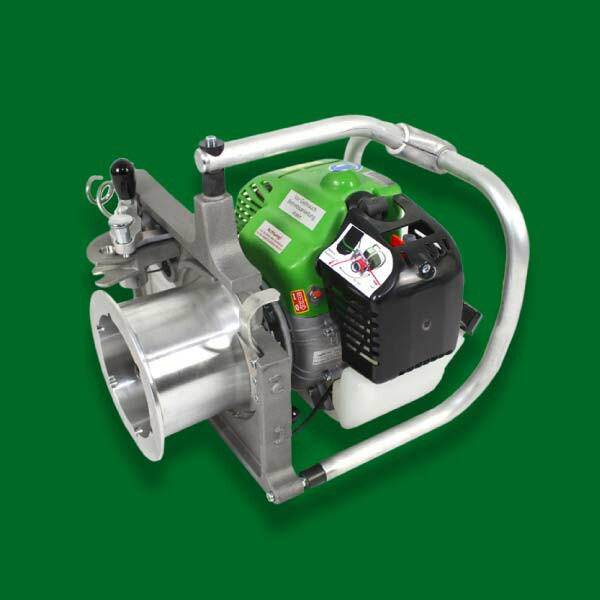

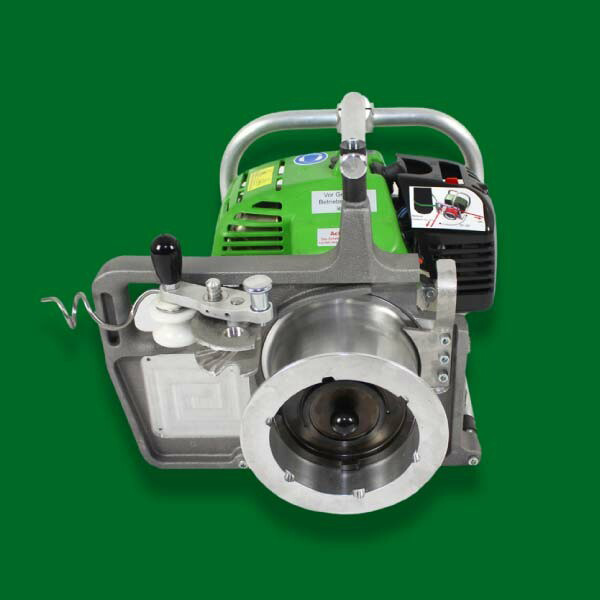

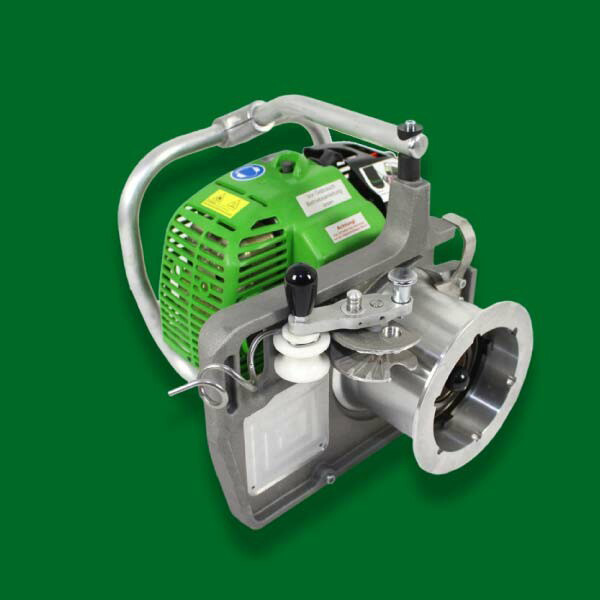

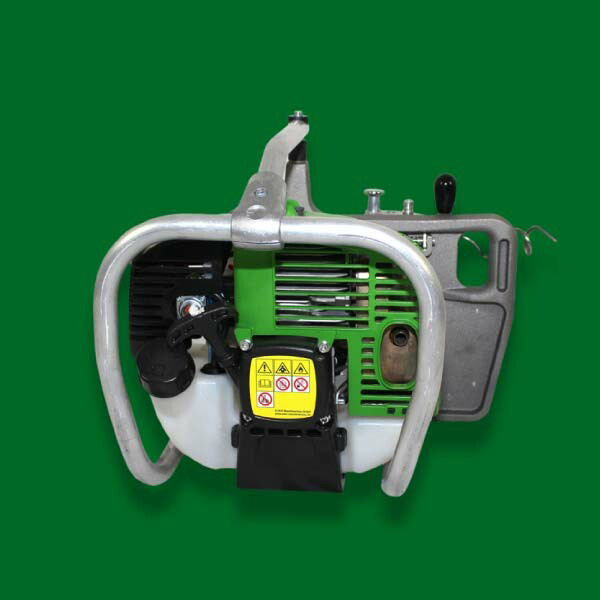

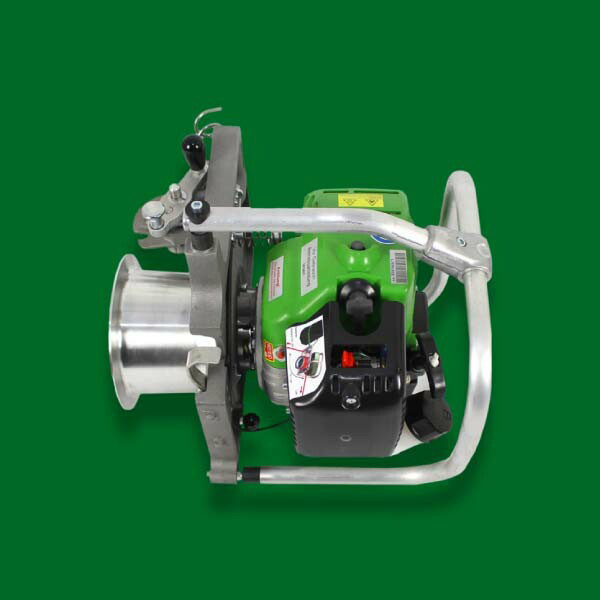

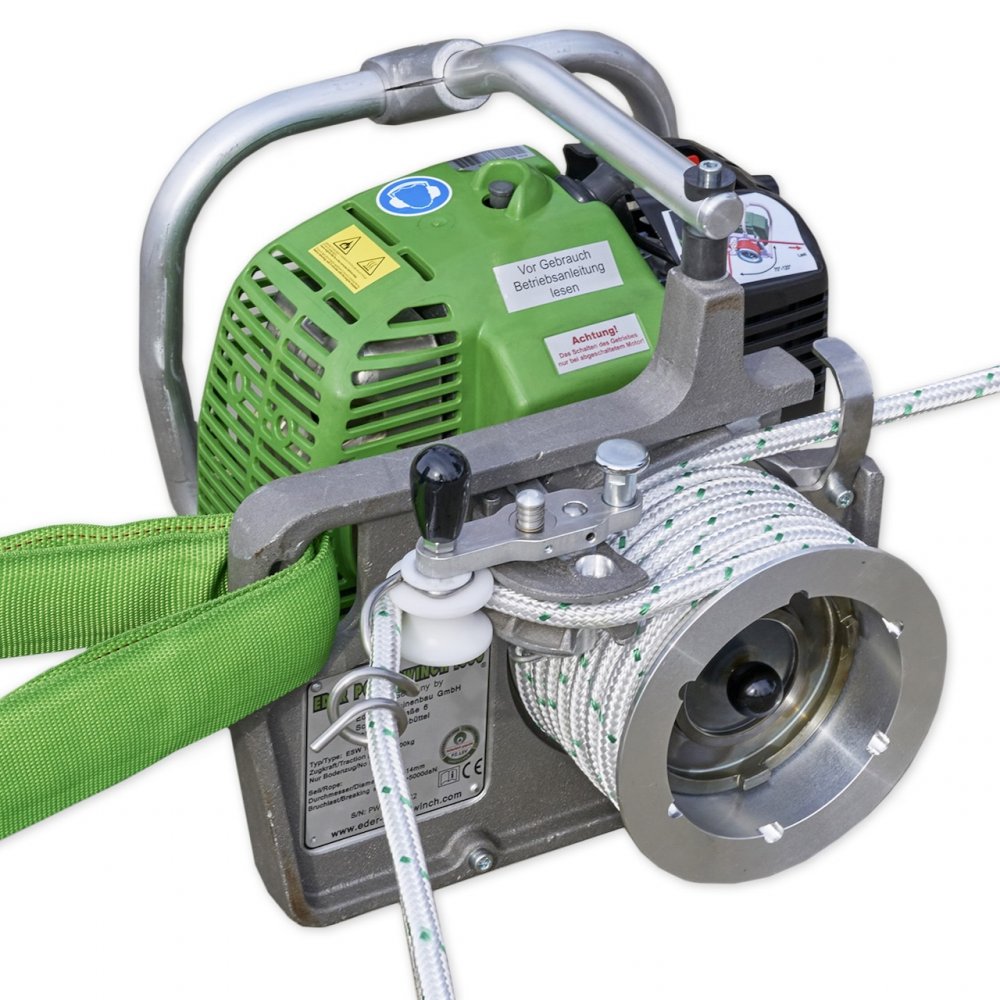

Motor winch EDER WINCH 1800
EDER strongest winch | Traction force 1800/900 kg | centrifugal clutch | rope brake | Weight 14 kg | 12/24 m/min | we provide SERVICE
Motor winch EDER WINCH 1800
Power of 1st gear: 1800 kg
Power of the 2nd gear : 900 kg
Winding speed 1st gear : 12 m/min
Winding speed 1st gear : 24 m/min
Weight: 14 kg
Dimensions: 38.5 cm length x 36.5 cm width x 32.5 cm height
Mechanical advantage 1.: 1:394
Mechanical Advantage 2.: 1:197
Rope: 12 mm - 14 mm
Construction strength : 5000 daN
EDER WINCH 1800 is the most powerful forest winch of the EDER brand with a pulling force of up to 1,800 kg.
NOTE: We also provide a complete service for all EDER winches .
It is powered by a 2-stroke engine that can work in any position.
It can be operated using a light synthetic rope of any length.
The winch is intended for control from a safe zone.
The rope brake ensures the safety of operation - when the rope is released, the winch stops because the rope is secured by the brake.
The brake prevents the load from sliding back unintentionally.
Main advantages of EDER WINCH winches
- Centrifugal coupling - you will not burn the rope with a constantly rotating drum, as is often the case with conventional forest winch solutions,
the centrifugal clutch allows the spindle to stop once the user releases the throttle
- Rope brake - the towed load is completely secured - if you let go of the rope, the gas is released and the brake is activated,
which tightly grips the rope. Even with the maximum load, the load remains stable - there is no danger that, for example, the towed log will slide down the slope
- Motor protection frame - thanks to it, the device is protected against damage in the event of a rollover
- All EDER winches are certified by German certification authorities and are designed and manufactured to meet all safety standards.
Other advantages of EDER WINCH 400, 1200, 1800 winches
- 360 ° working position - thanks to the Active two-stroke engine, you do not have to deal with the position of the device,
the winch motor will work in any position while rotating 360° in all axes
- No need to change the oil in the engine (2-stroke engine), the fuel is a standard mixture of Petrol:2T oil in a ratio of 50:1
Uses: Forestry, Rescue Operations, Hunting, Construction, Obstacle Removal
Technical Data (English)
| Technical Data | Winch 1800 | Winch 1200 | Winch 400 |
|---|---|---|---|
| with Active engine | |||
| Type | Air-cooled 2-stroke engine | ||
| Power [kW/HP] | 3.3 / 4.5 | 3.3 / 4.5 | 3.3 / 4.5 |
| Displacement [cm³] | 62 | 62 | 62 |
| Engine speed [1/min] | max. 10400 | max. 10400 | max. 10400 |
| Carburetor | Membrane carburetor type Walbro | ||
| Fuel tank capacity [l] | 1.1 | ||
| Clutch | Centrifugal clutch | ||
| Throttle lever | With half-throttle position | ||
| Noise level [dB(A)] | 115 | ||
| Firma produkcyjna | Eder Maschinenbau GmbH |
|---|---|
| Adres | Schweigerstraße 6, 38302 Wolfenbüttel, Germany |
| info@eder-maschinenbau.de |
EDER - wciągarki leśne najwyższej jakości – Wyprodukowane w Niemczech
Co charakteryzuje firmę EDER? Maszyny w czystej postaci. Dla nas EDER = JAKOŚĆ. Cała produkcja odbywa się w Niemczech, w Wolfenbüttel. A dlaczego oferujemy Państwu ich produkty? Ponieważ właśnie za jakość oraz prosty, funkcjonalny design cenimy te produkty. To typowe podejście w starym stylu, gdzie wszystko jest tworzone z myślą o jak najdłuższej żywotności. A firma EDER jest jedną z tych, które nadal kierują się tą zasadą. Wiemy to, bo pracujemy z produktami EDER, zwłaszcza z wciągarkami!
