Kraj pochodzenia: Zjednoczone Królestwo
Article MPN: RP048-A1

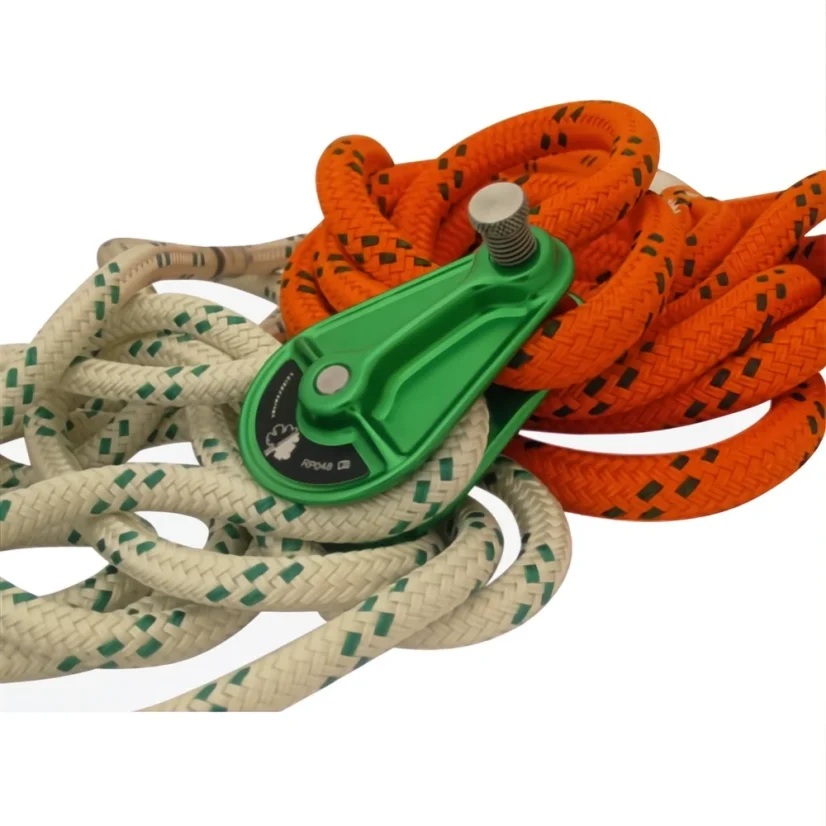

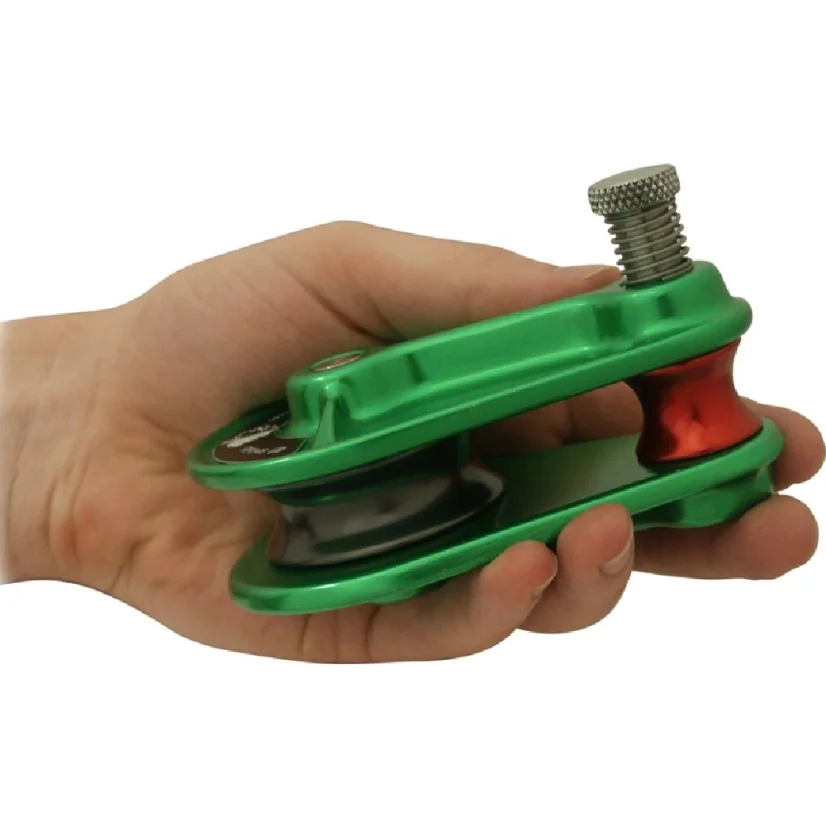

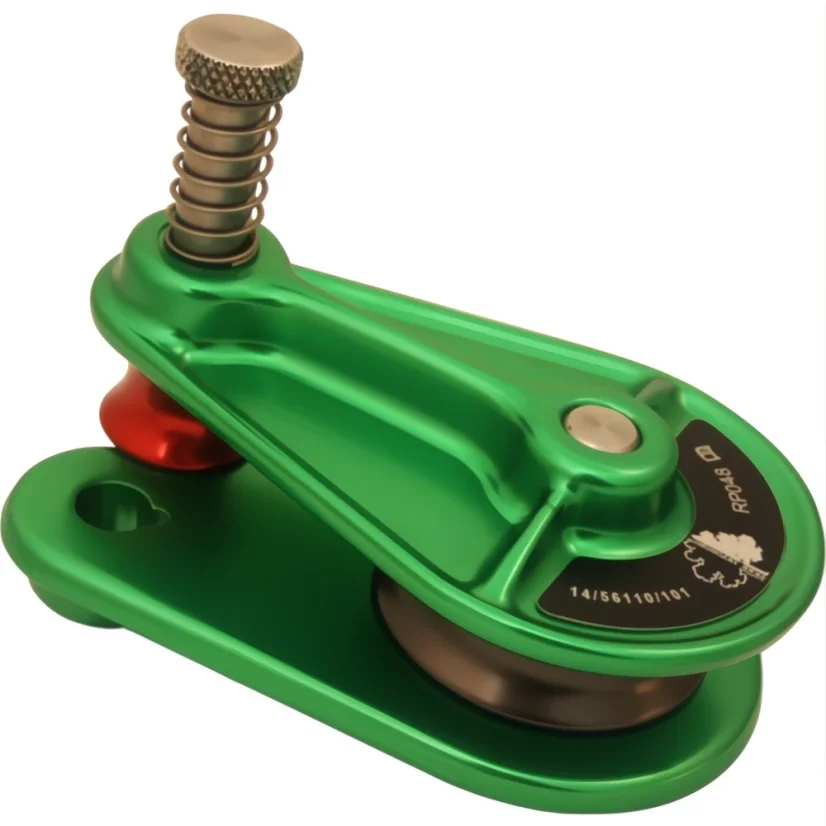

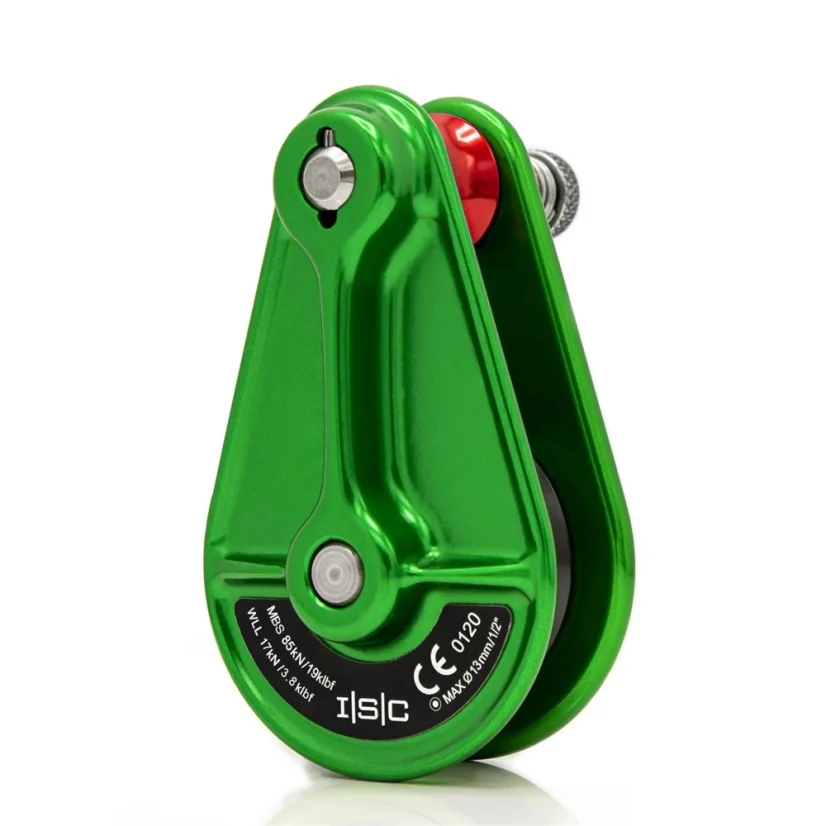

ISC MINI BLOCK lowering pulley - 85 kN
MBS 85 kN || WLL 17 kN || Weight 490 g || Rope diameter max. 13 mm
Description ISC MINI BLOCK lowering pulley - 85 kN
Small and light lowering pulley with a high ultimate strength of 85 kN .
The weight of the pulley is only 490 g!
Designed for rigging light to medium loads during felling.
Easy and safe installation thanks to the patented QUICKLOCK.
Weight: 490 g
Material: duralumin (anodized)
Dimensions: 125 x 67 x 51 mm
Working load (WLL): 17 kN
Limit load (MBS): 85 kN
Max. rope diameter: 13 mm
Wypróbuj produkt w naszym sklepie
Špitálka 421/23a, 602 00 Brno
Zobacz w Mapach Google
Otwarte PON - PT: 09:00-16:00
Parameters
| Article MPN | RP048-A1 |
|---|---|
| Waga | 490 g |
| Obciążenie graniczne (MBS) | 85 kN |
| Obciążenie robocze (WLL) | 17 kN |
| Średnica liny | 13 mm |
Download
ISC MINI BLOCK declaration of conformity (pdf, 875.9 kB)
ISC MINI BLOCK manual (pdf, 1.6 MB)
ISC MINI BLOCK product sheet (pdf, 732.9 kB)
Manufacturer/Importer information
| Manufacturing company | International Safety Components Ltd. (ISC) |
|---|---|
| Address | Unit 1, Plot 2, Llandygai Industrial Estate, Bangor, Gwynedd LL57 4YH, United Kingdom |
| sales@iscwales.com |
