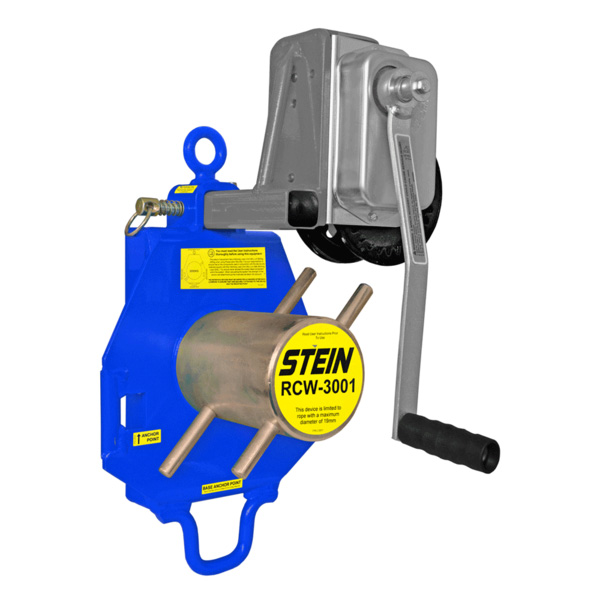

Friction drum with winch STEIN RCW3001
29 kg | 3000 daN | rope: 19 mm
Description Friction drum with winch STEIN RCW3001
Friction drum with winch STEIN RCW3001
Material: galvanized and powder-coated steel
Max. working load: 3000 daN
Weight of the set: 29 kg
Dimensions: 235 x 480 x 275 mm (LxHxW)

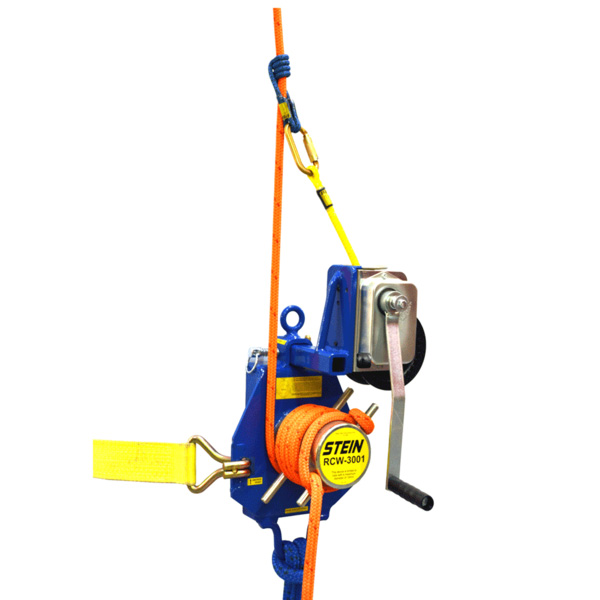

STEIN RCW3001 lowering drum with winch for safe lowering
of heavy loads during gradual felling "to the rope".
The maximum working load is 3000 kg.
Designed for lowering ropes up to 19 mm in diameter.
Fastening to the tree trunk using a strap with a ratchet.
An important role is played by the anchor sling connected to
of the lower anchor eye - this sling securely secures the drum against
unwanted "shooting" of the trunk upwards under heavy load.

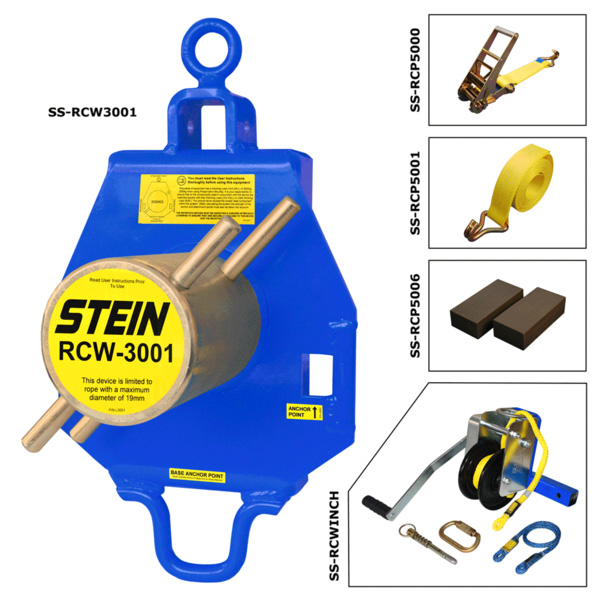

Set includes:

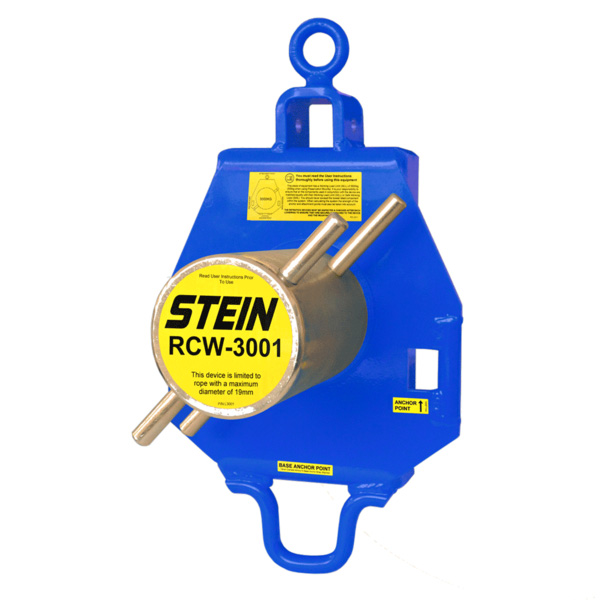

1 x RCW3001 trigger drum
1 x WINCH KIT winch for RCW3001
1 x 10 ton ratchet
1 x 5.8m strap
1 x pair of rubber pads
WINCH KIT winch parameters:
Material: galvanized steel
Gear ratio: 6:1
Weight: 16 kg
You can find more about the product in the attached video in the VIDEOS tab.
