Kraj pochodzenia: Zjednoczone Królestwo

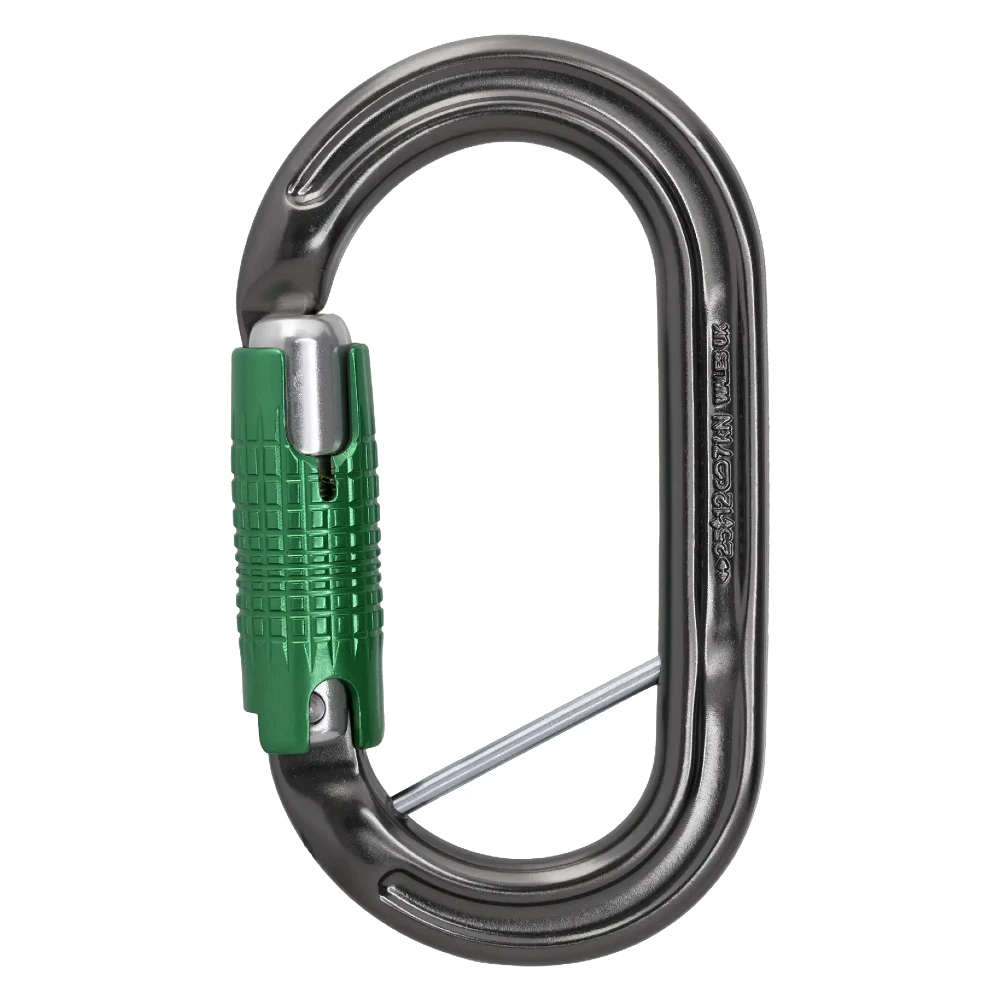

DMM ULTRA O LockSafe Captive Bar carabiner
MBS 25 kN || Weight 76 g || Gate opening 19 mm
Description DMM ULTRA O LockSafe Captive Bar carabiner
The DMM ULTRA O LockSafe Captive Bar carabiner is a symmetrical oval connector designed for systems where stable load positioning and correct orientation are essential. The oval shape allows natural load centring and minimises unwanted movement of connected components.
It is suitable for use with pulleys, swivels, shackles and other connectors. Thanks to its symmetrical profile, orientation within the system is not critical – the carabiner performs equally well in either direction.
-
symmetrical oval shape for precise load centring
-
suitable for pulleys, swivels, shackles and rope systems
-
stable behaviour under load without unwanted rotation
-
Captive Bar for correct positioning
-
LockSafe gate for secure one-handed operation
-
Keylock nose (Taperlock) prevents snagging
-
increased gate strength and cross-loading resistance
-
fully rounded rope contact areas reduce wear
Technical information
Model: DMM Ultra O LockSafe Captive Bar Titanium
Dimensions: 63 × 109 mm
Weight: 76 g
Major axis strength (MBS): 25 kN
Minor axis strength: 12 kN
Gate open strength: 7 kN
Gate opening: 19 mm
Certification: EN 362:2004 B/T, EN 12275:2013 X/B/T, UIAA 121:2009
Wypróbuj produkt w naszym sklepie
| Article MPN | A327CB |
|---|---|
| Orzecznictwo | UIAA 121, EN 362/B, EN 12275/B, EN 362/T, en 12275/X, EN 12275/T |
| Waga | 76 g |
| Tworzywo | duraluminium |
| Obciążenie graniczne (MBS) | 25 kN |
| Twierdza z otwartym zamkiem | 7 kN |
| Sztywność w osi podłużnej | 25 kN |
| Sztywność w osi poprzecznej | 12 kN |
| Światło | 19 mm |
| Manufacturing company | DMM International Ltd. |
|---|---|
| Address | Y Bont Faen, Wales, United Kingdom |
