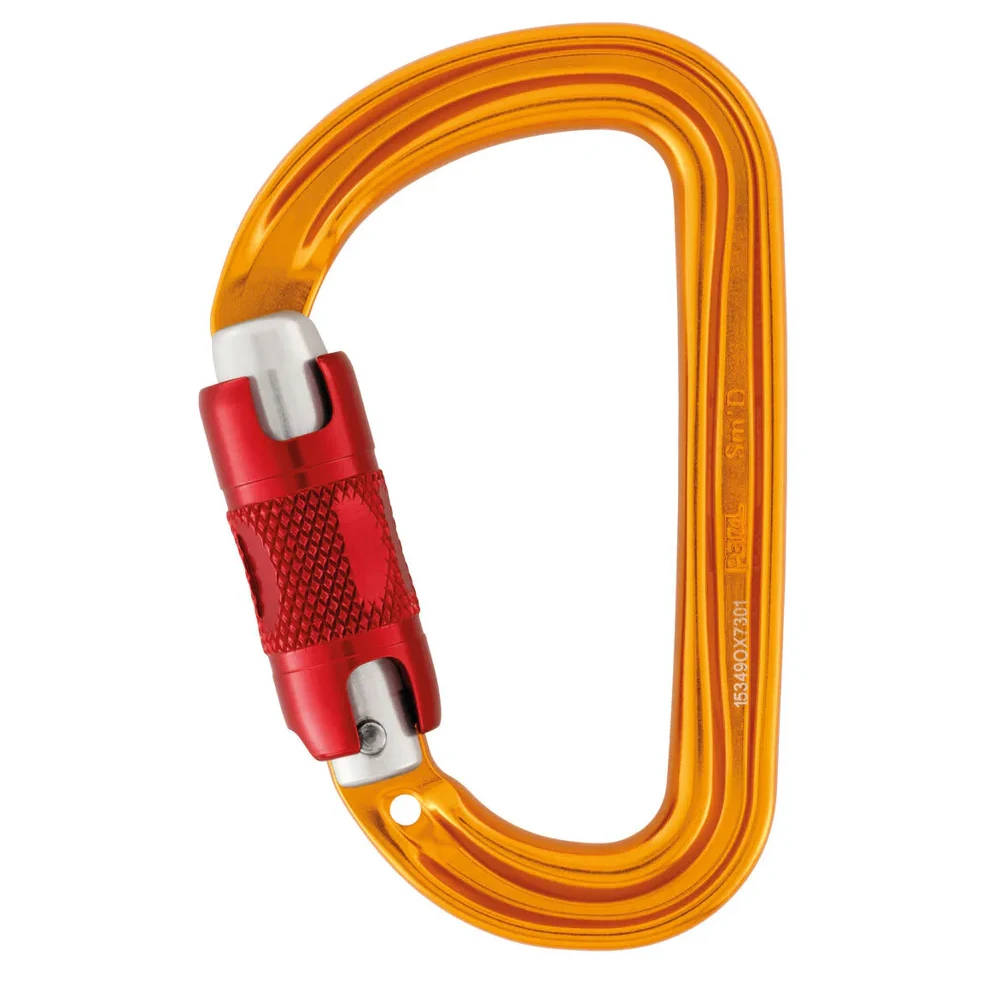

PETZL SmD Twist-Lock carabiner
MBS 23 kN || Weight 51 g || Gate opening 20 mm
PETZL Sm’D Twist-Lock is a lightweight and compact D-shaped carabiner with an automatic locking system. It is suitable for connecting a belay device, pulley or for use at the end of a connecting sling.
The D shape makes handling easier, while the H-profile reduces weight while maintaining strength. The Keylock system helps prevent unwanted snagging when working with equipment. A small hole below the gate allows TIBLOC or MICRO TRAXION devices to be attached to the carabiner with an accessory cord to help prevent loss.
The TWIST-LOCK version is suitable where quick opening and automatic locking are required, for example at the ends of connecting slings or when attaching a GRIGRI to a harness.
Technical parameters
- Type: locking carabiner
- Shape: D
- Locking system: TWIST-LOCK
- Gate: Keylock
- Material: aluminium
- Major axis strength: 23 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
- Gate opening: 20 mm
- Weight: 51 g
- Colour: yellow
| Article MPN | M39A RL |
|---|---|
| Certification | EN 362 , EN 12275 |
| Weight | 51 g |
| Material | dural |
| Breaking load (MBS) | 23 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Major Axis) | 8 kN |
| Gate opening | 20 mm |
| Manufacturing company | Petzl International |
|---|---|
| Address | Zone Industrielle, 38920 Crolles, Isère, France |
