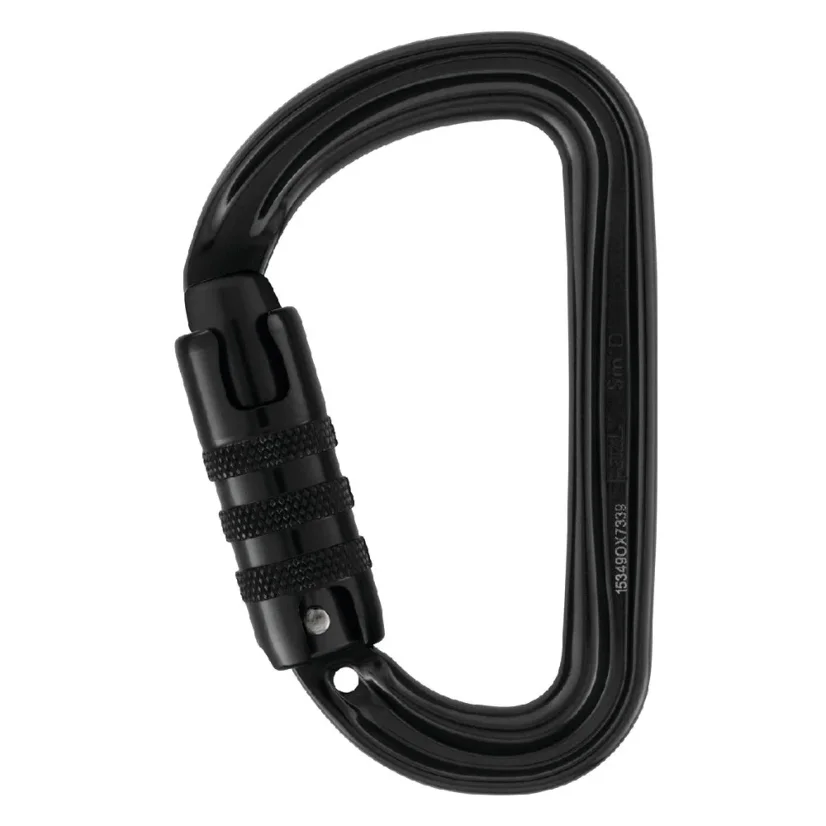

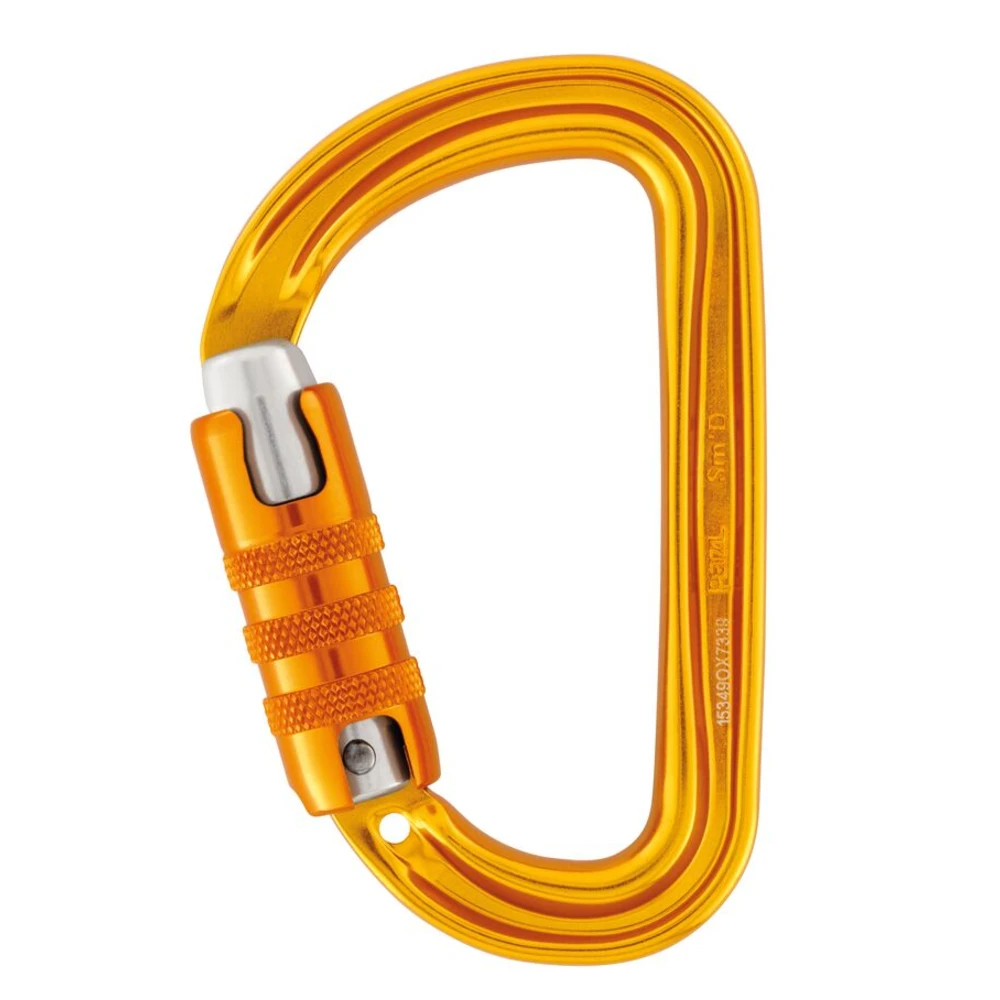

PETZL SmD Triact-Lock carabiner
Article MPN: M39A TX
MBS 23 kN || Weight 55 g || Gate opening 18 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
The Sm´D D-shaped carabiner with lock safety is very light and compact,
it can be used in many situations.
It is easy to handle even with gloves.
- High versatility of use:
- connection of the securing device, the pulley, at the end of the loop - Excellent handling and ergonomics:
- D shape for good handling
- H-shaped cross-section reduces weight while maintaining strength
and holds up well in gloves
- the KeyLock lock system prevents accidental capture of the carabiner

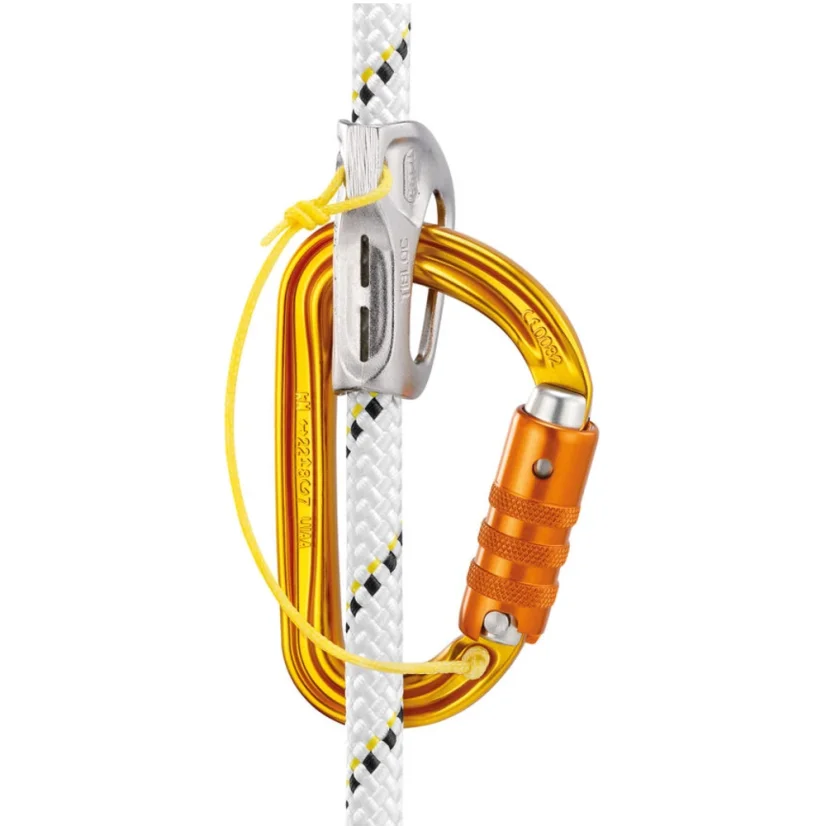

- a small hole under the latch allows the attachment of TIBLOC aids
or MICRO TRAXION lanyard to the carabiner and thus prevent their loss - It is produced in three lock fuse systems:
- SCREW LOCK - screw lock, can be used locked
or insured according to the given situation. A red indicator indicates an unsecured fuse.
This system is suitable for demanding conditions (mud, ice) where it could
the automatic fuse becomes clogged with dirt
- TWIST LOCK - specific situations in which quick opening is needed
(the ends of the connecting loops) and for connecting the GriGri to the harness
- TRIACT LOCK - automatic fuse used for work at heights - The TL and SL models are produced in black for special components and tactical use,
or for use in the entertainment industry
| Strength in the longitudinal axis | 23 kN |
| Strength in the transverse axis | 8 kN |
| Strength with an open latch | 7 kN |

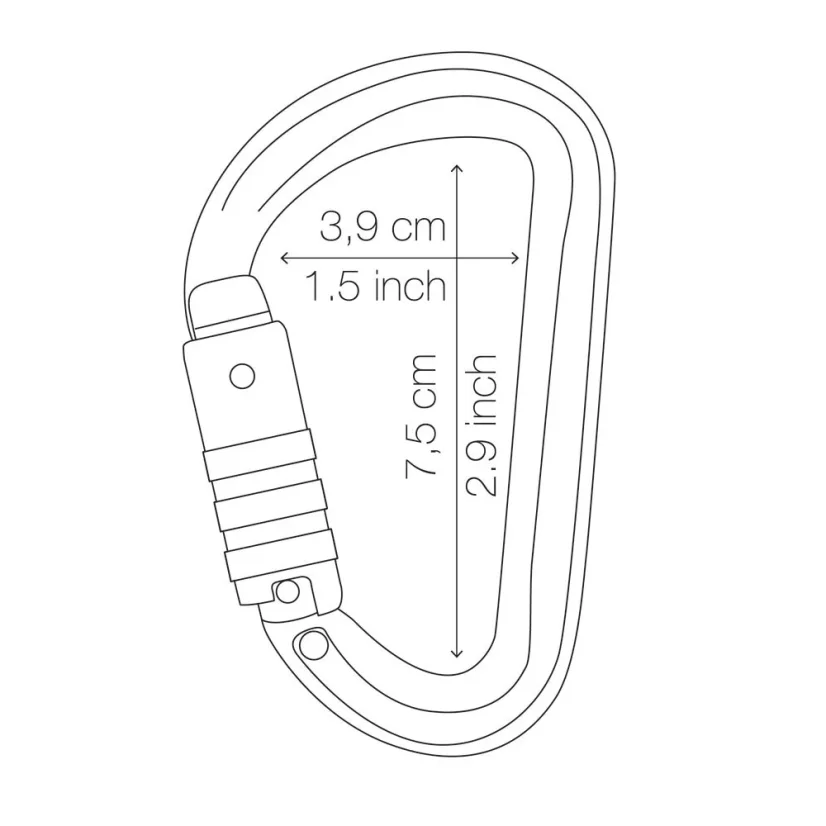

| Gate opening | 18 mm |
| Weight | 55 g |
| Lock fuse | triact lock |
| Material | aluminium |
Specifications
| Article MPN | M39A TX |
|---|---|
| Color | black , yellow |
| Certification | EN 362 , EN 12275 |
| Weight | 55 g |
| Material | dural |
| Breaking load (MBS) | 23 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Major Axis) | 8 kN |
| Gate opening | 18 mm |
Manufacturer/Importer information
| Manufacturing company | Petzl International |
|---|---|
| Address | Zone Industrielle, 38920 Crolles, Isère, France |
| international@petzl.com |
Download
PETZL SmD Triact-Lock manual (pdf, 2.1 MB)
PETZL SmD Triact-Lock declaration of conformity (pdf, 637.1 kB)
