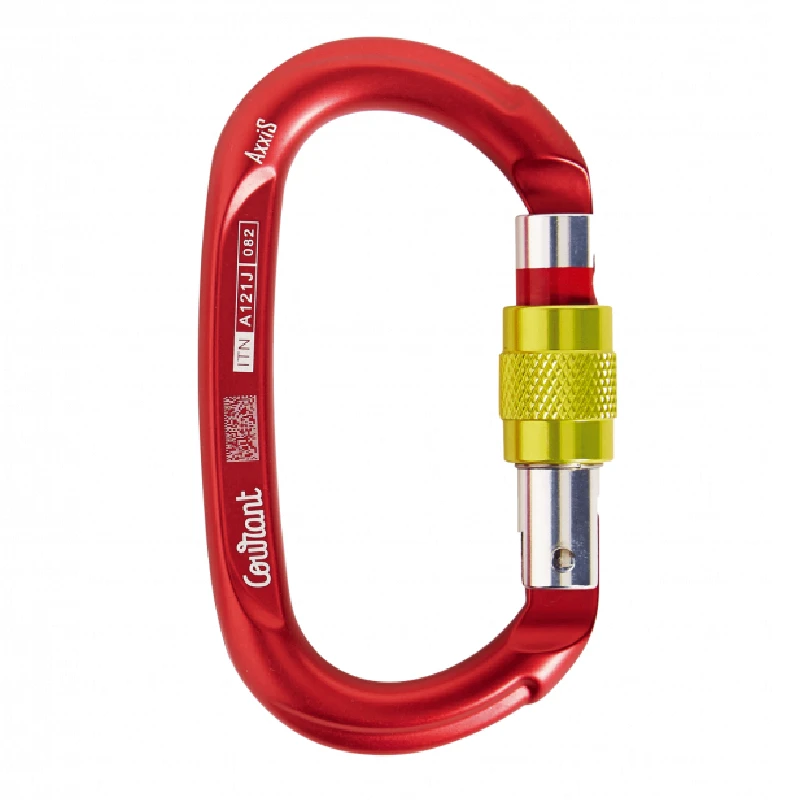

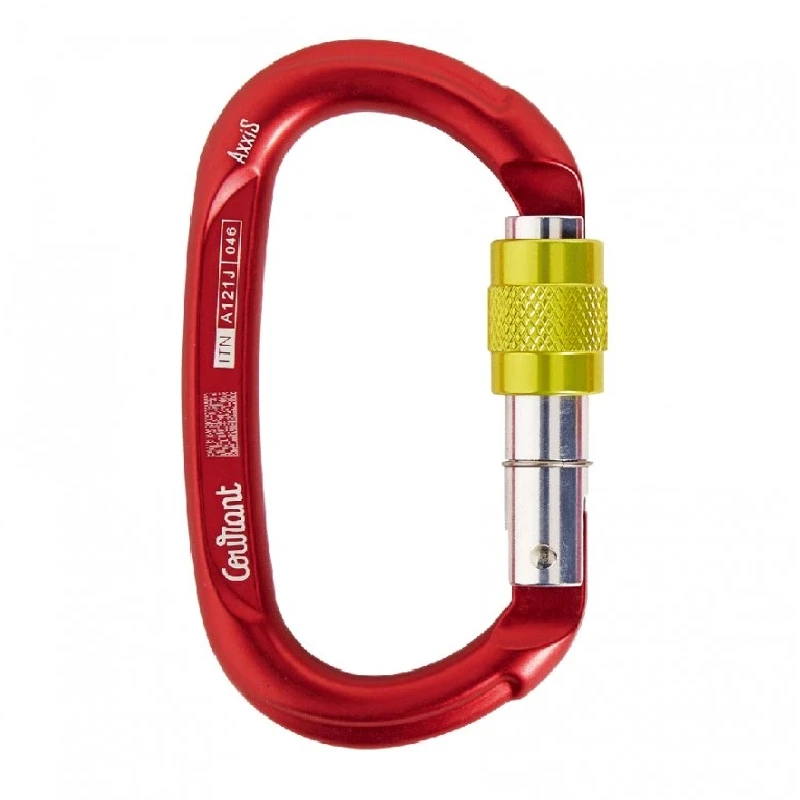

COURANT AXXIS Screw carabiner
MBS 24 kN || Weight 75 g || Clearance 20 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
The COURANT AXXIS screw carabiner with a new innovative design has a wide 20 mm opening and also an open lock indicator. The Keylock system allows for easier passage of ropes and straps
EN 362 certification
Load capacity: 24 kN
Dimensions: L 110 mm W 62 mm
Clearance: 20 mm
Weight: 75 g
Specifications
| Article MPN | PPLSMQSY |
|---|---|
| Certification | EN 362 |
| Weight | 75 g |
| Material | dural |
| Breaking load (MBS) | 24 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Minor Axis) | 22 kN |
| MBS (Major Axis) | 8 kN |
| Gate opening | 20 mm |
Manufacturer/Importer information
| Manufacturing company | CORDERIE COURANT S.A.S. |
|---|---|
| Address | 36 Boulevard de l’Industrie, Zone Industrielle, 49000 Écouflant / Angers, France |
| contact@mycourant.com |
Download
COURANT AXXIS technical sheet (pdf, 947.4 kB)
COURANT AXXIS manual (pdf, 568.9 kB)
