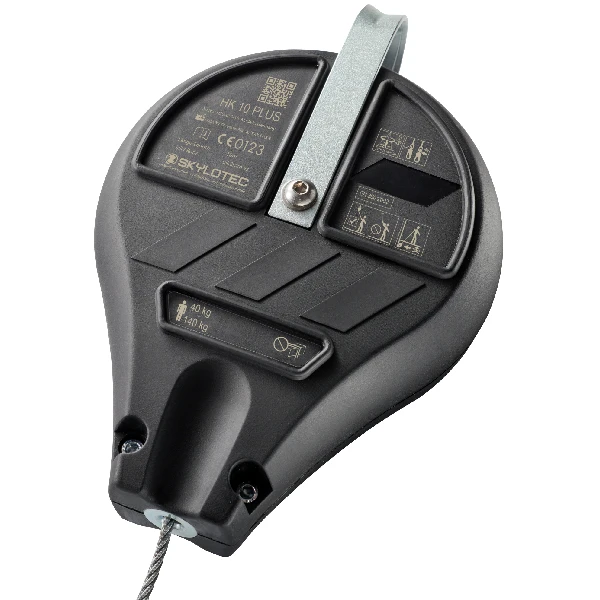

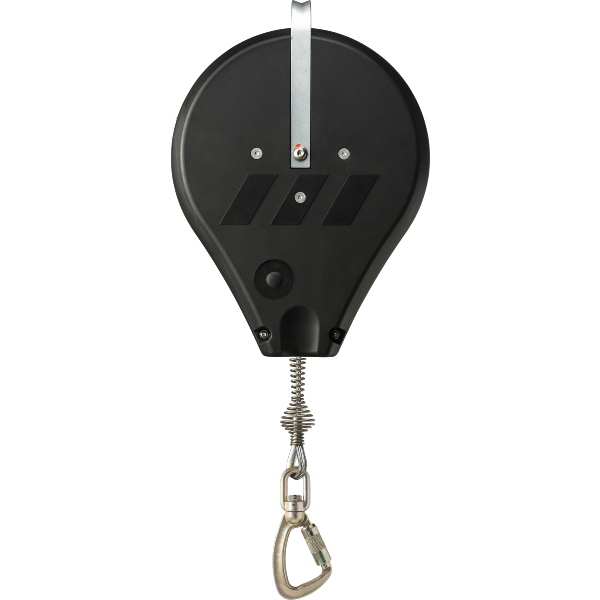

SKYLOTEC HK 10 PLUS retractable fall arrester
Country of origin: Germany
Article MPN: HSG-050-10
For vertical and horizontal applications || WLL 100 kg - horizontal / 140 kg - vertical || Weight 4,23 kg || Rope length 10 m
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
The HK PLUS retractable fall arresters provide excellent freedom of movement while keeping fall distances to a minimum. The automatic rope retraction ensures that only the necessary rope length is extended, making it a highly reliable solution for overhead and horizontal work. With fall detection through a color-coded carabiner and flexible interchangeable marking, the HK PLUS is designed for both vertical and horizontal use with a maximum user weight of 100 kg in either position. Available in rope lengths from 3 to 15 meters.
Application Areas
| Application Area | Edge Approved |
|---|---|
| Working on masts and towers | Yes |
| Work on roofs and facades | Yes |
Technical Specifications
| Material | Aluminium, Acrylonitrile butadiene styrene, Steel |
|---|---|
| Max. user weight (horizontal) | 100.00 kg |
| Max. user weight (vertical) | 140.00 kg |
| Min. user weight | 40.00 kg |
| Max. temperature | 45 °C |
| Min. temperature | -35 °C |
| Maximum number of persons | 1 |
| Maximum lifetime | 10 years |
| Usable in SEAL PAC | No |
| Colour | Black |
| Customs tariff number | 84798997 |
| E-class number | 40-02-01-03 |
| Gross/Net weight | 4,23 kg |
| Rope length | 10 m |
| Standards | CNB/P/11.060:2005, EN 360:2002 |
Specifications
| Article MPN | HSG-050-10 |
|---|---|
| Color | black |
| Certification | EN 360:2002 , CNB/P/11.060:2005 |
| Length | 10 m |
| Weight | 4,23 kg |
| Material | ABS , dural , steel |
| Working load (WLL) | 40 - 140 kg |
| Rope Diameter | 4,8 mm |
| Lifespan | 10 years |
Manufacturer/Importer information
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
| info@skylotec.com |
Download
SKYLOTEC HK PLUS product sheet (pdf, 1.2 MB)
SKYLOTEC HK PLUS manual (pdf, 7.2 MB)
SKYLOTEC HK PLUS declaration of conformity (pdf, 227.7 kB)
