REIPAL TREE JACK RH-PUSHER VI
Country of origin: Sweden
Article MPN: RHP0106
Reliable tool for safe felling and handling of heavy logs || Load capacity 3600 kg || Weight 24 kg
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
REIPAL · TREE JACK

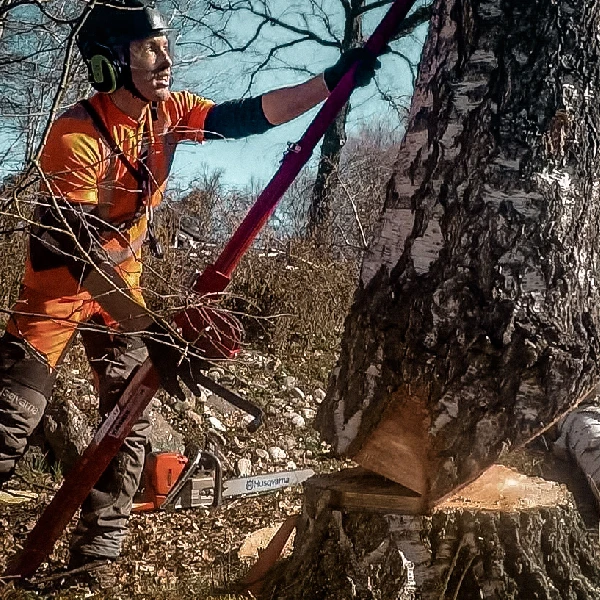

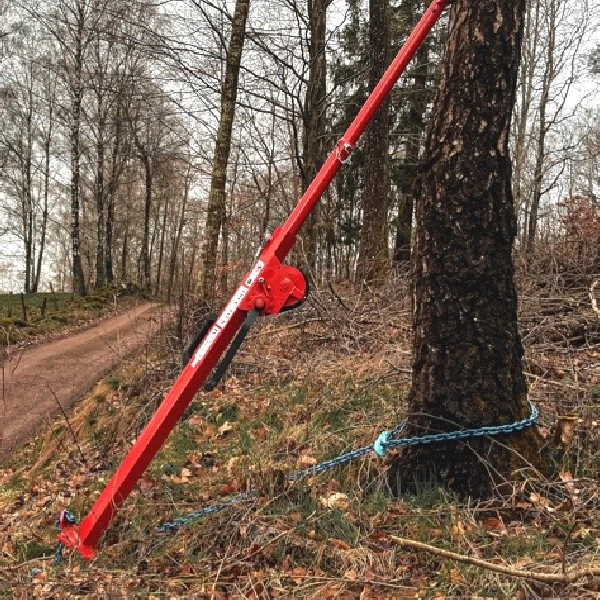

Tree jack for controlled tree-felling direction
A reliable tool for safe felling and handling of heavy logs.
Key features
- High lifting and pushing force
- Controlled lowering and stability under load

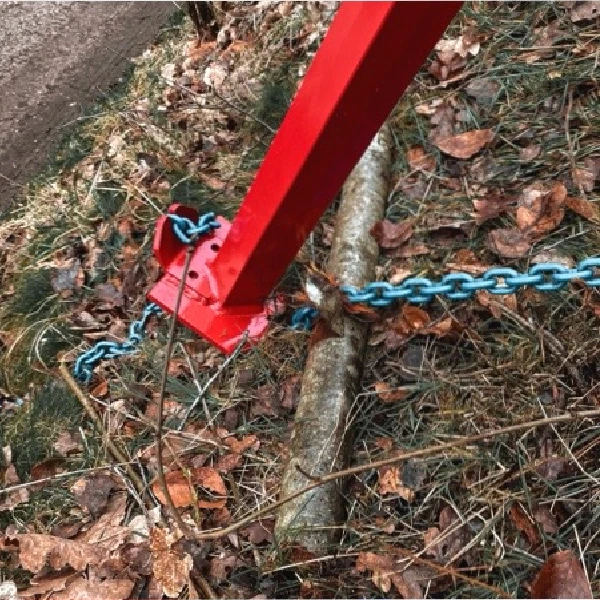

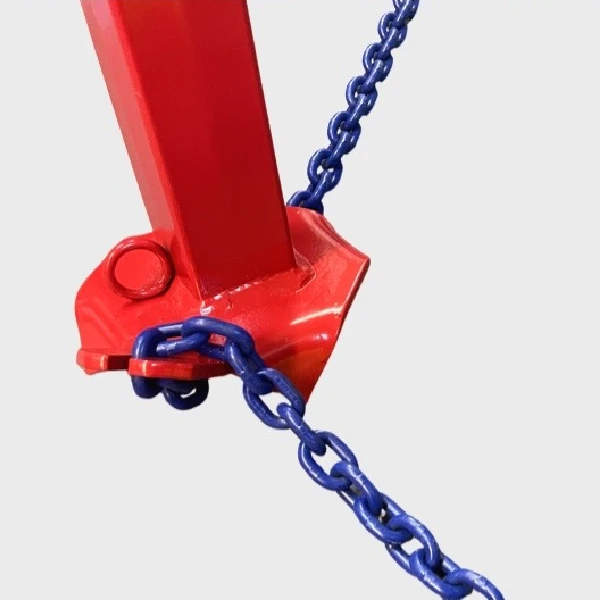

- Stable base and chain holder
- Ergonomic arm and handle
Thought-through construction
Controlled felling with greater confidence
Professional Reipal tool made in Sweden for demanding forestry work.
3,600 kgLoad capacity
50:1Mechanical ratio
24 kgWeight
135–270 cmLength range
Made in Sweden. 24-month warranty.

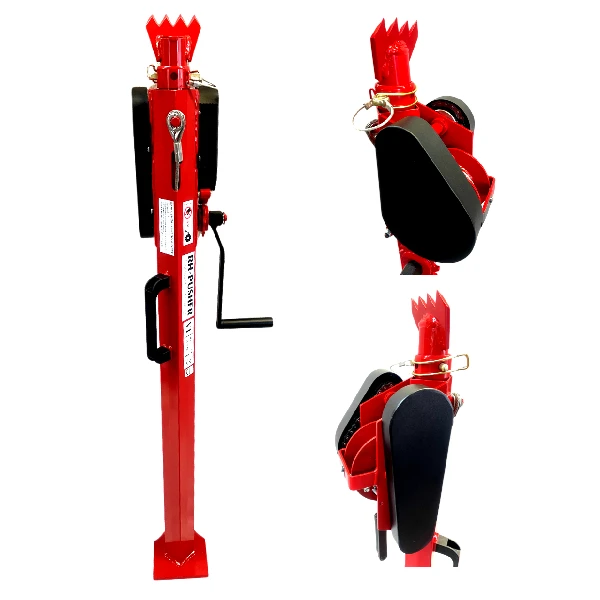

TREE JACK features a three-part telescopic construction. The upper section can be retracted or extended according to the required working height, while the subsequent lift is carried out using the crank mechanism. This allows the length of the device to be adjusted to the point of contact with the tree and the required working range.

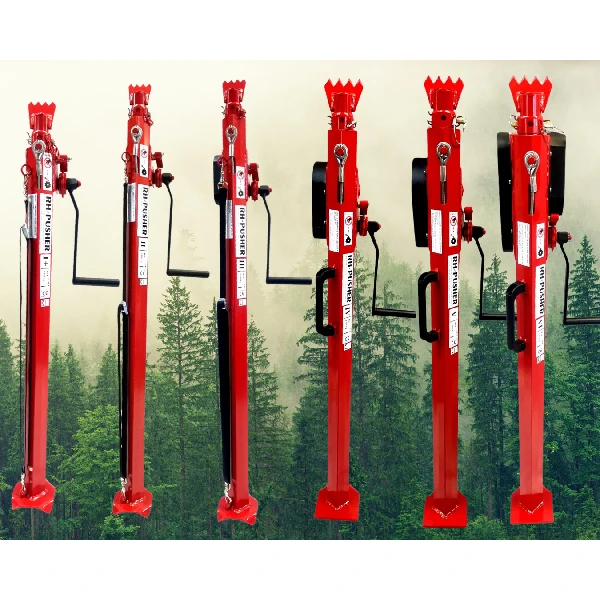

TREE JACK dimensions and working range
| Model | Weight | Shortest length | Length with upper attachment removed | Working range – upper section retracted | Working range – upper section extended | Gear ratio / max. pushing force |
|---|---|---|---|---|---|---|
| TREE JACK I+ | 12 kg | 115 cm | 105 cm | 115–195 cm | 175–255 cm | 20 / 1500 kg |
| TREE JACK II | 13.5 kg | 135 cm | 120 cm | 135–220 cm | 195–280 cm | 23 / 1800 kg |
| TREE JACK III | 15.5 kg | 135 cm | 120 cm | 135–220 cm | 195–280 cm | 28 / 2100 kg |
| TREE JACK IV | 20 kg | 135 cm | 120 cm | 135–220 cm | 185–270 cm | 34 / 2550 kg |
| TREE JACK V | 21 kg | 135 cm | 120 cm | 135–220 cm | 185–270 cm | 40 / 3000 kg |
| TREE JACK VI | 25 kg | 135 cm | 120 cm | 135–220 cm | 185–270 cm | 50 / 3600 kg |
Specifications
| Article MPN | RHP0106 |
|---|---|
| Length | 135 - 270 cm |
| Weight | 24 kg |
| Material | steel |
| Load capacity | 3600 kg |
| Gear ratio | 50:1 |
Download
REIPAL TREE JACK RH-PUSHER manual (en) (pdf, 119.6 kB)
REIPAL RH-PUSHER product sheet (pdf, 1.8 MB)
REIPAL RH-PUSHER Instruction wire exchange (pdf, 577 kB)
