REIPAL RH-PUSHER IV

REIPAL TREE JACK RH-PUSHER IV

Country of origin: Sweden

Article MPN: RHP0104

Reliable tool for safe felling and handling of heavy logs || Load capacity 2550 kg || Weight 20 kg

Within 7 - 10 days

Delivery Options

Store in Brno, CZ (0 pcs)

Within 7 - 10 days

552,63 £

552,63 £ excl. VAT

Favourites Ask a question

Do you need advice?

+420 737 049 489(Mon–Fri: 9.00 AM–4.00 PM) support@skyman.cz

Skyman = certified manufacturer

We splice ropes with a TÜV certificate

> 20 years in the industry

Products tested in the field!

More than just sales!

Service, PPE inspections, testing & trainings.

Showroom Brno

> 5000 products in stock.

Product Description

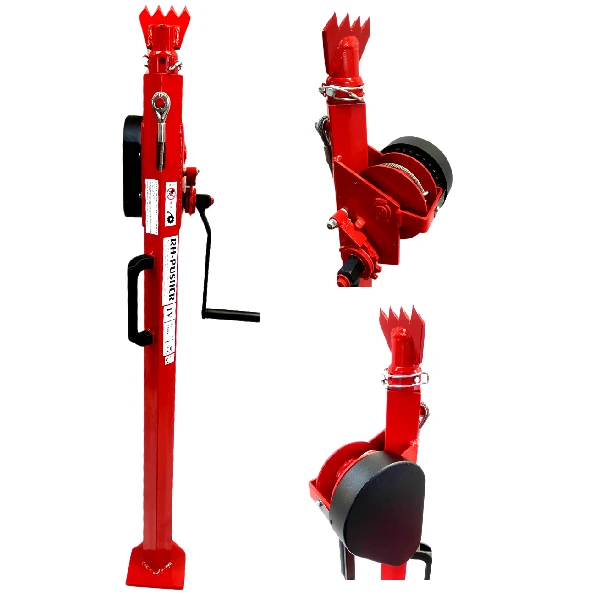

REIPAL · TREE JACK

Precision and control in directional felling

A reliable tool for safe felling and handling of heavy logs.

High lifting and pushing forceEffective work at different arm lengths.

Controlled loweringThe safety mechanism supports stability under load.

Stable baseShaped corners help prevent sinking into soft ground.

Chain holderSupports stability on sloped terrain.

Compact designThe ergonomic arm and handle make transport easier.

Thoughtful construction

Built for demanding forestry work

The Reipal Tree Jack RH-PUSHER is a professional tool for arborists who require precision and safety when felling trees. It is suitable for work near roads, power lines or buildings.

Swedish design, high lifting force, an adjustable arm and a chain holder support controlled work in demanding forestry conditions, including sloped or soft ground.

Material: steel
Reliable construction for demanding forestry use.

REIPAL TREE JACK RH-PUSHER IV – thoughtful construction

2,550 kglift/push capacity

34:1mechanical ratio

20 kgweight

135–270 cmarm range

Made in Sweden.
Warranty: 24 months.

TREE JACK features a three-part telescopic construction. The upper section can be retracted or extended according to the required working height, while the subsequent lift is carried out using the crank mechanism. This allows the length of the device to be adjusted to the point of contact with the tree and the required working range.

TREE JACK dimensions and working range

Model	Weight	Shortest length	Length with upper attachment removed	Working range – upper section retracted	Working range – upper section extended	Gear ratio / max. pushing force
TREE JACK I+	12 kg	115 cm	105 cm	115–195 cm	175–255 cm	20 / 1500 kg
TREE JACK II	13.5 kg	135 cm	120 cm	135–220 cm	195–280 cm	23 / 1800 kg
TREE JACK III	15.5 kg	135 cm	120 cm	135–220 cm	195–280 cm	28 / 2100 kg
TREE JACK IV	20 kg	135 cm	120 cm	135–220 cm	185–270 cm	34 / 2550 kg
TREE JACK V	21 kg	135 cm	120 cm	135–220 cm	185–270 cm	40 / 3000 kg
TREE JACK VI	25 kg	135 cm	120 cm	135–220 cm	185–270 cm	50 / 3600 kg
