PROTEKT TM 9 Anchorage Tripod

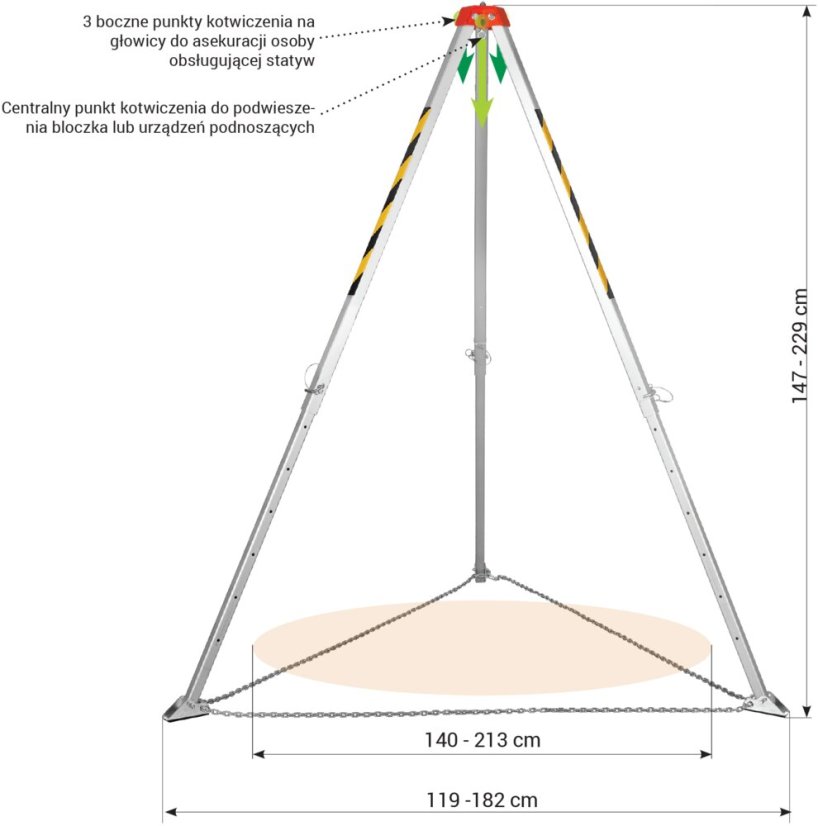

Country of origin: PolandHeight 1.47–2.29 m || Diameter of the hole under the tripod 1.40–2.13 m || Spacing of legs 1.19–1.92 m || Load capacity 500 kg || Weight 16.5 kg
Tripod PROTEKT TM 9
Height: 147 - 209 cm
Diameter of the opening under the tripod: 140 - 213 cm
Leg spacing: 119 - 192 cm
Device weight: 16,5 kg
Anchor points on the head: 4 (1 central, 3 side anchors)
Dimensions of package: 176 x 26 x 23 cm
Safety purpose: max. 1 person
Certification: EN 795:2012 type B, EN 1496:2006 type B
The TM9 lightweight aluminum safety tripod can be used in accordance with EN795/B
and can be used as part of fall protection equipment.
Product Specifications:
- TM9 consists of a steel head with powder coating
- equipped with 3 anchor points located on the sides of the head and 1 central point (possibility of connecting a pulley)
- anchor points can be used as an anchor point for fall protection equipment

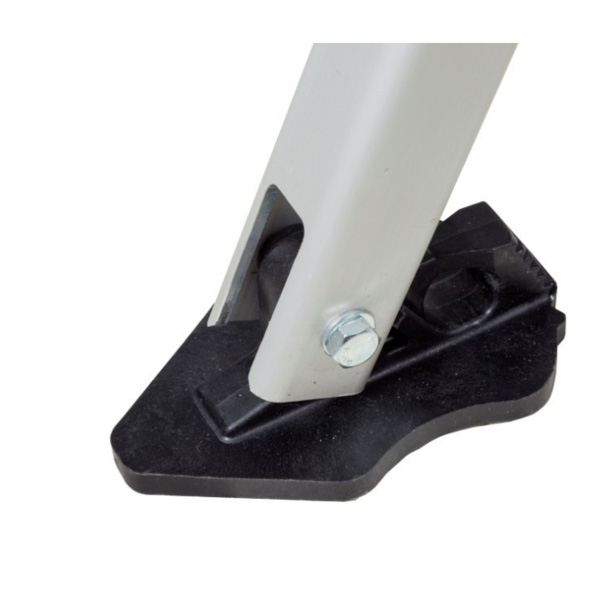

- delivered incl. stabilizer chain on the feet
| Article MPN | AT011 |
|---|---|
| Certification | EN 1496 , EN 795/B |
| Weight | 17 kg |
| Load capacity | 500 kg |
| Number of users | 1 |
| Diameter of the hole under the tripod | 1,40 - 2,13 m |
| Spacing of legs | 1,19 - 1,92 m |
| Height | 1,47 - 2,29 m |
| Lifespan | Unlimited time |
| Manufacturing company | PROTEKT Grzegorz Łaszkiewicz |
|---|---|
| Address | ul. Starorudzka 9, 93-418 Łódź, Poland |
| protekt@protekt.com.pl |
from 372,82 £ excl. VAT
1 136,76 £ excl. VAT
612,40 £ excl. VAT
