PROTEKT TM 9-N tripod
Country of origin: PolandHeight 2.09 m || Diameter of the hole under the tripod 1.49 m || Leg spacing 1.28 m || Weight 15.4 kg || Max. load 500 kg || Up to 3 people at the same time
The TM9-N lightweight aluminum safety tripod can be anchored in accordance with EN795/B and TS 16415/B standards
and can be used as part of fall protection equipment.
Product Specifications:
- provides protection for up to 3 people at the same time

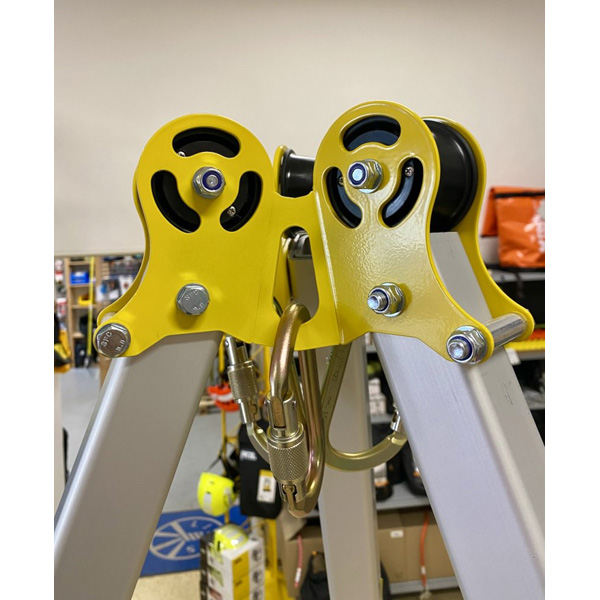

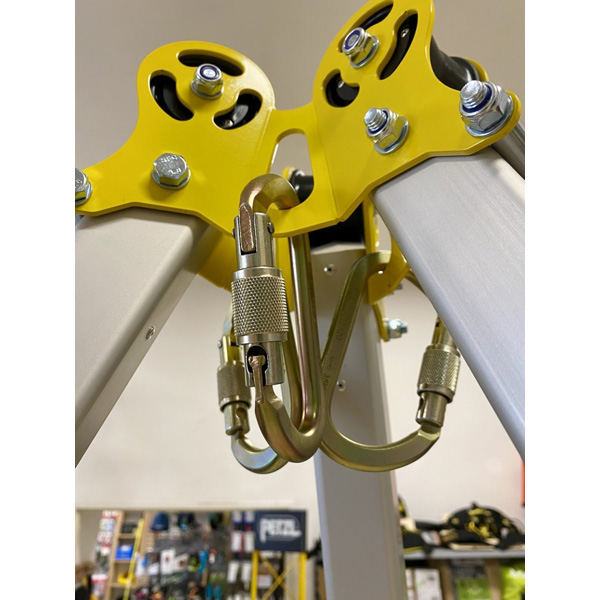

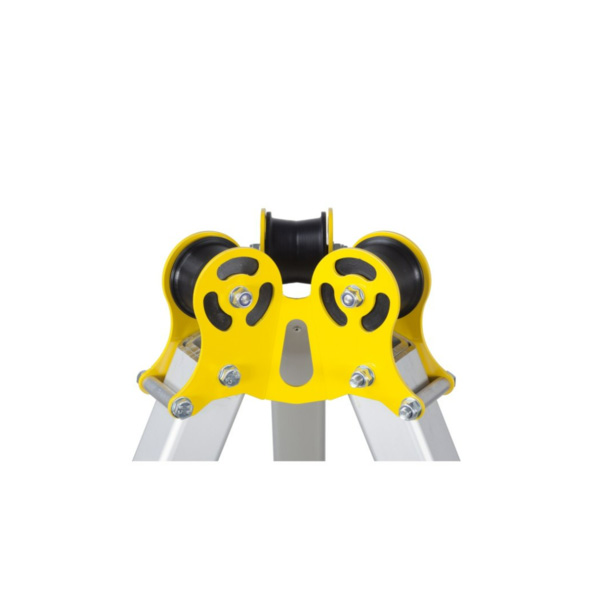

- TM9-N consists of a steel head with powder coating, equipped with 3 polyamide rollers with ball bearings for guiding the working rope of RUP and CRW devices
- equipped with 3 anchor points located on the sides of the head
- anchor points can be used as an anchor point for fall protection equipment
- each point can be used by only 1 user at a time
Height: 209 cm
Diameter of the opening under the tripod: 149 cm
Leg spacing: 128 cm
Device weight: 15.4 kg
Anchor points on the head: 3
Lifting/lowering: max. 3 people
Dimensions: 176 x 26 x 23 cm
Max. weight of lifted or lowered cargo and persons: 500 kg
Certification: EN 795 B
| Article MPN | AT011N |
|---|---|
| Weight | 15,4 kg |
| Load capacity | 500 kg |
| Number of users | 3 |
| Diameter of the hole under the tripod | 1,49 m |
| Spacing of legs | 1,28 m |
| Manufacturing company | PROTEKT Grzegorz Łaszkiewicz |
|---|---|
| Address | ul. Starorudzka 9, 93-418 Łódź, Poland |
