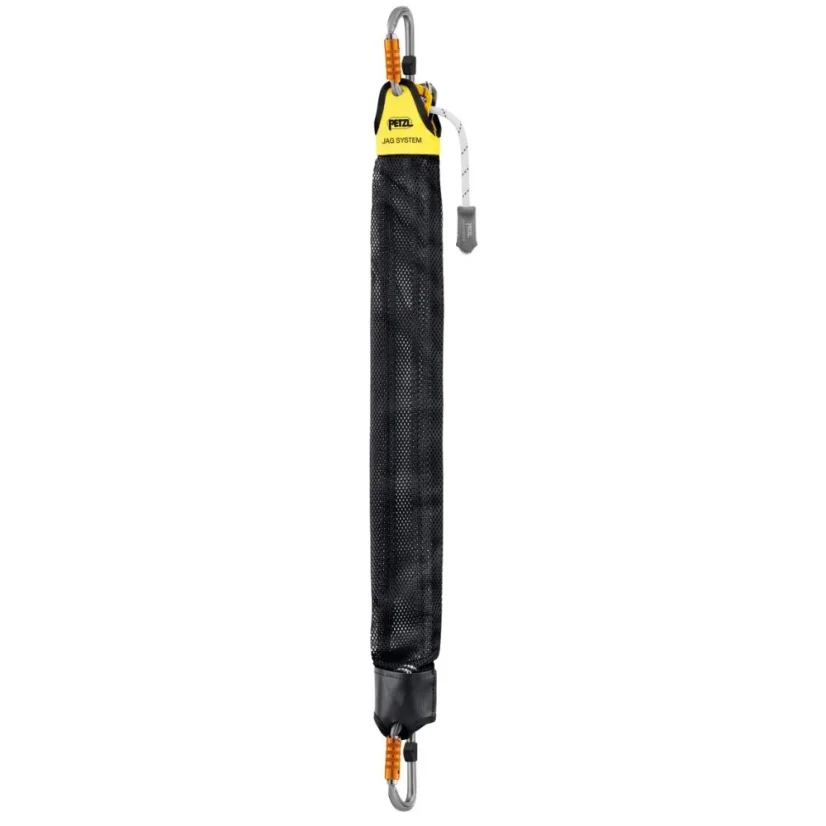

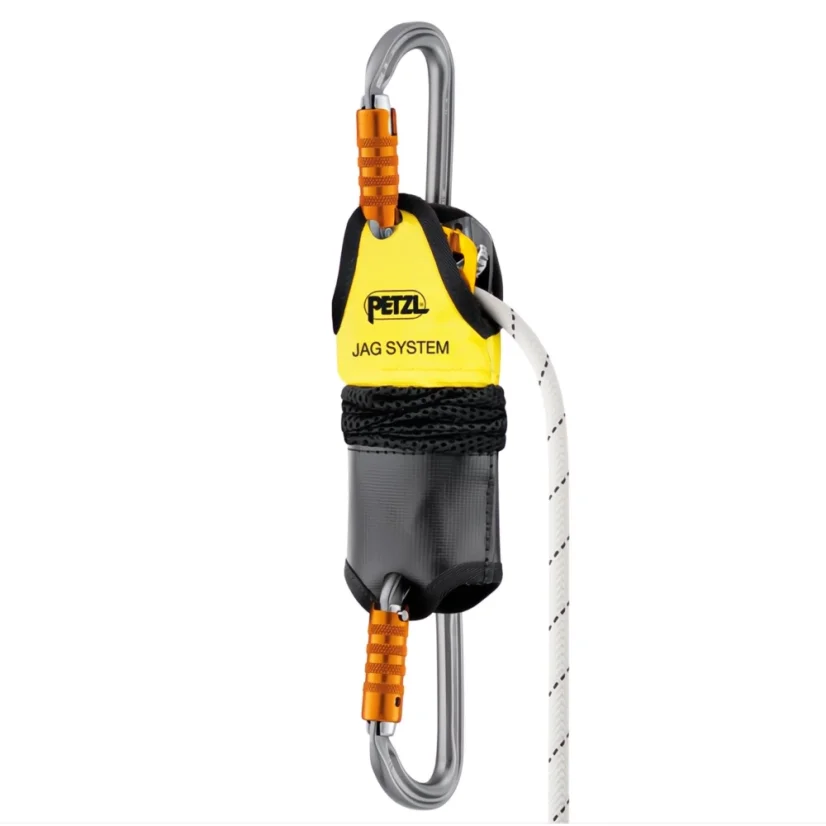

Description PETZL JAG SYSTEM haul kit

The PETZL JAG SYSTEM is a compact haul kit with a 4:1 mechanical advantage, designed for lifting, lowering, system tensioning, and rescue operations. Thanks to its high efficiency and pre-assembled design, it allows smooth and precise load handling.

The system is supplied as a complete, ready-to-use kit in a flexible cover that prevents tangling. Its compact size (approx. 30 cm when collapsed) allows use even when the distance to the anchor is very short.

The JAG SYSTEM is suitable for pick-offs, creating a releasable anchor, or tensioning systems. It can be combined with a descender (e.g. PETZL I'D) to create a reversible rescue kit for lifting and evacuating a victim.

Key features

• complete 4:1 haul system
• suitable for lifting, tensioning, and releasable anchor setup
• high efficiency (91%) thanks to ball-bearing pulleys
• compact design suitable for short distances
• lightweight 8 mm rope for good grip and handling
• flexible cover prevents tangling, system always ready to use
• color-coded haul end for quick identification

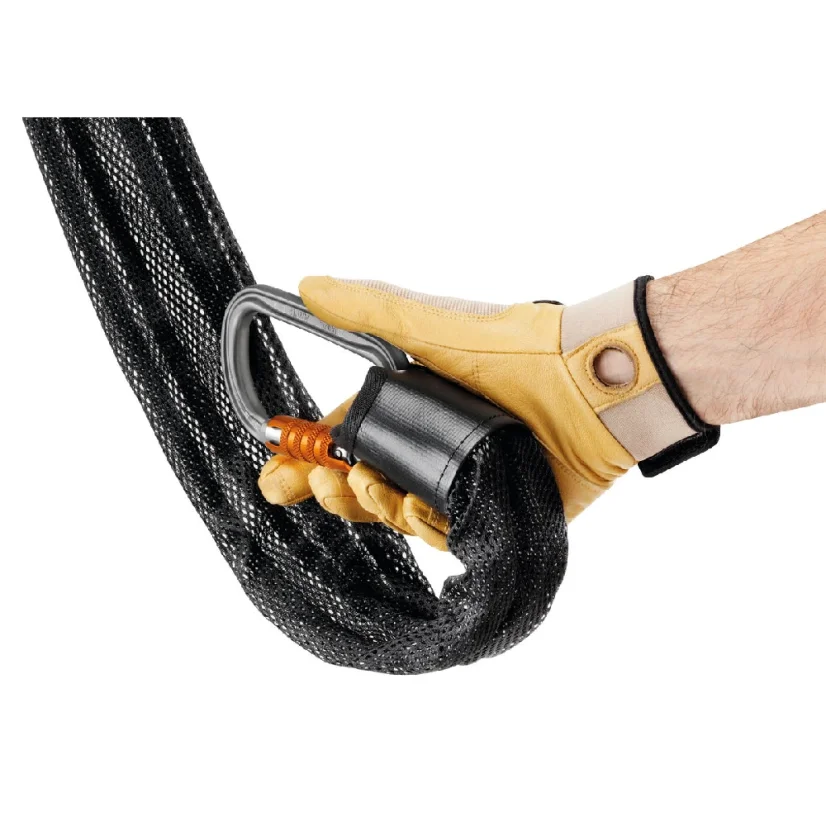

• cover ends hold connectors in position for easy clipping
• compatible with descenders for rescue operations

Technical specifications

• Minimum breaking strength (MBS): 16 kN
• Working load limit (WLL): 6 kN
• Efficiency: 91%
• Mechanical advantage: 4:1
• Rope diameter: 8 mm
• Material: aluminum, nylon, polyurethane
• Sheave type: sealed ball bearings
• Certifications: CE EN 358, EAC, NFPA 2500

Package includes

• JAG SYSTEM haul kit
• 2× Am’D TRIACT-LOCK carabiners

Variants

• 1 m – weight 610 g
• 2 m – weight 805 g
• 5 m – weight 1460 g
