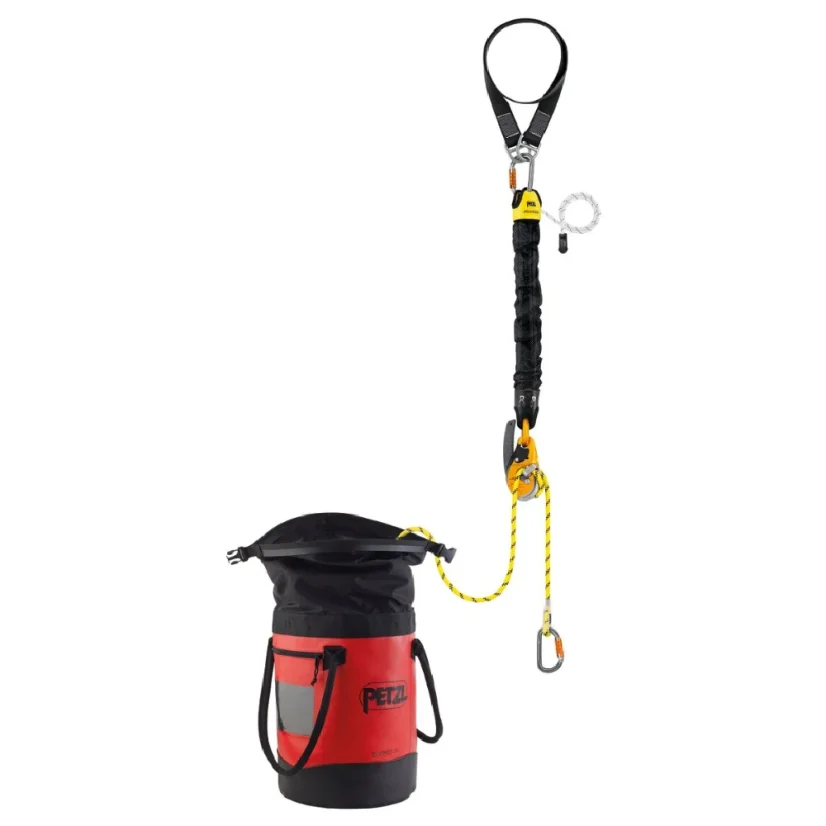

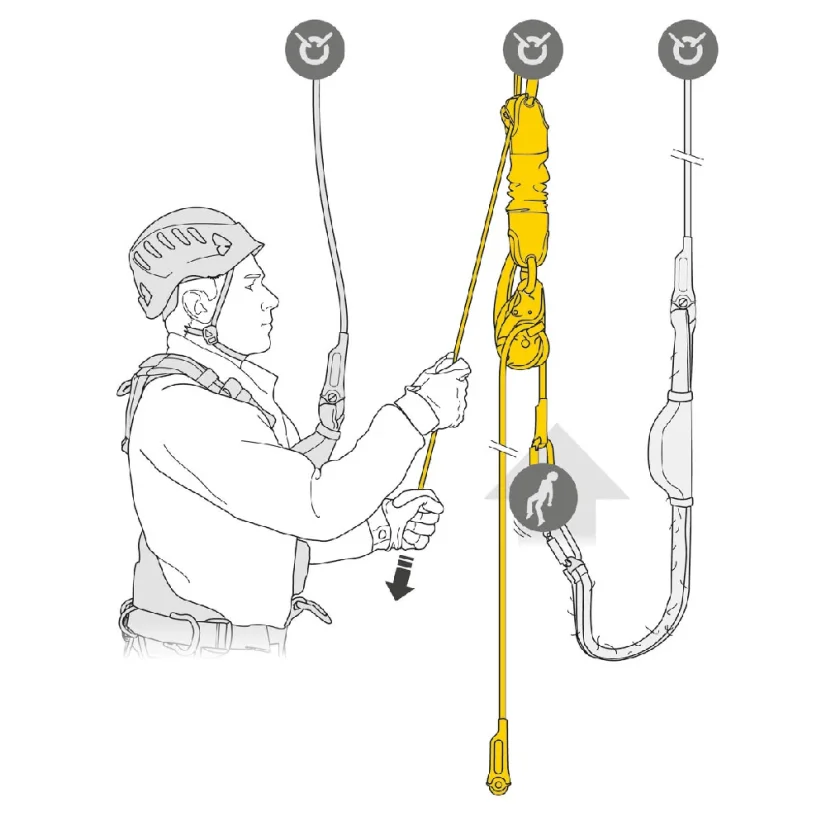

Complete pre-prepared rescue kit designed for quick pick-off and subsequent safe lowering of a person. It combines the JAG SYSTEM haul kit with a 4:1 efficiency and the I’D EVAC descender with an integrated brake. Thanks to the pre-installed rope and compact storage in a transport bag, the kit is immediately ready for use without complicated preparation. The design minimizes the risk of tangling and allows smooth handling during the intervention.

Main features:

• Complete reversible rescue system for pick-off and lowering
• JAG SYSTEM haul kit with 4:1 mechanical advantage
• High sheave efficiency to reduce required force
• I’D EVAC descender with integrated brake

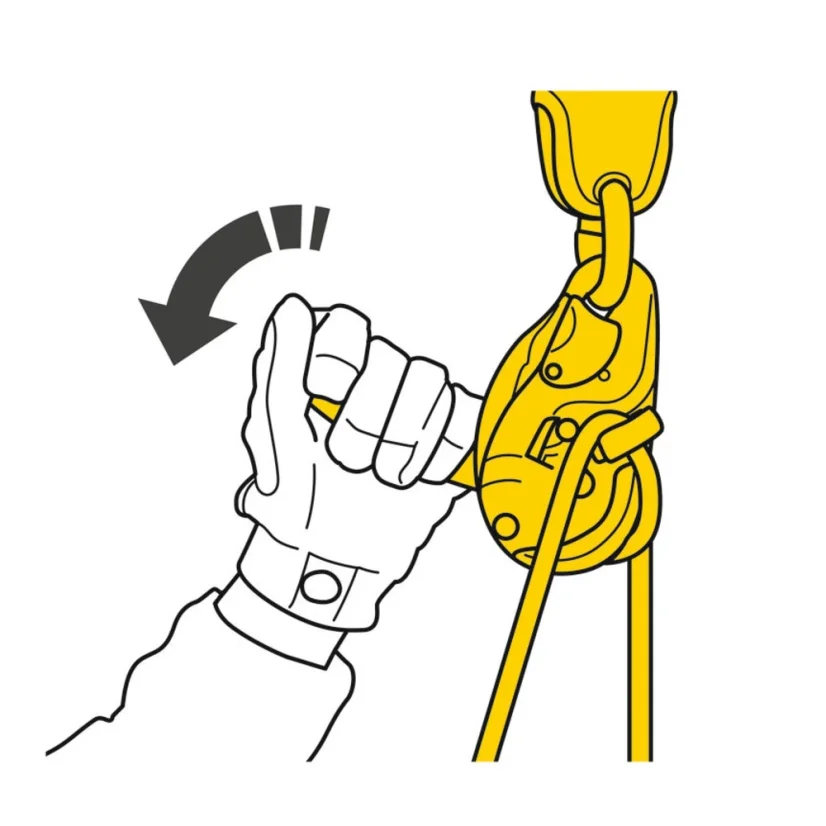

• Anti-panic function stops descent if the handle is pulled too hard
• Pre-installed rope in closed brake for better control
• Flexible cover of the haul system reduces tangling
• Constant rope redirection during operation
• BUCKET transport bag included
• Supplied ready for immediate use
• Possibility of sealing (security seal)

Technical specifications:

• Working load limit (WLL): 250 kg
• Rope diameter: 11 mm
• Rope type: AXIS, with two sewn terminations
• Lengths: 30 m / 60 m / 120 m
• Weight: 4460 g (30 m) / 6760 g (60 m) / 11460 g (120 m)
• Bag volume: 15 l (30 m) / 30 l (60 m) / 45 l (120 m)
• Material: aluminum, steel, nylon, polyurethane, polyester
• Guarantee: 3 years

Kit contents:

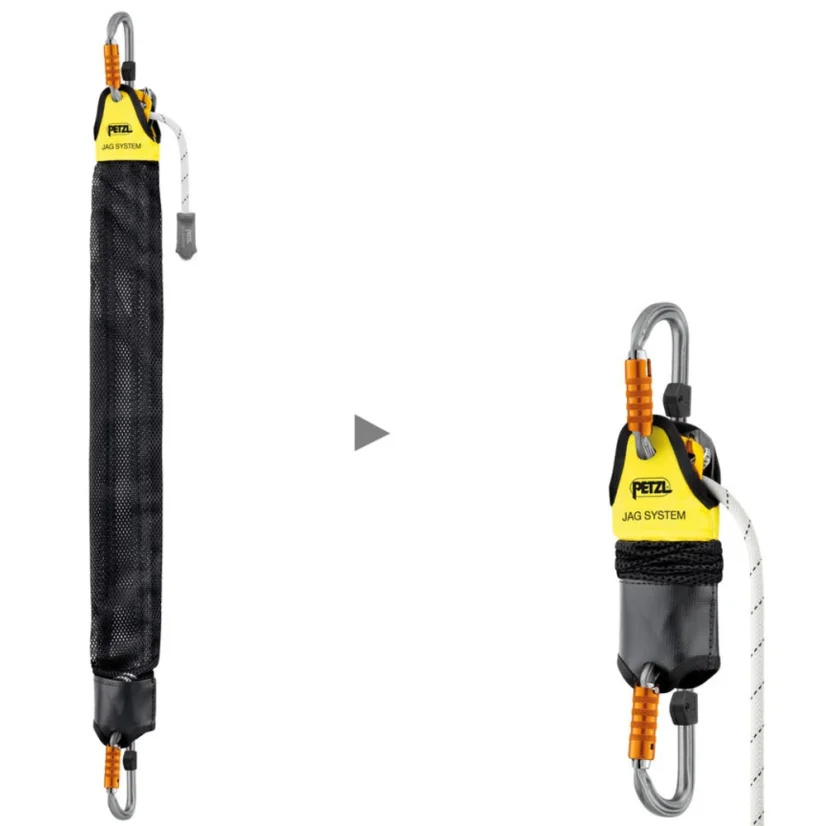

• JAG SYSTEM haul kit
• I’D EVAC descender
• RING OPEN gated ring
• AXIS 11 mm rope with two sewn terminations
• CONNEXION FIXE 150 cm anchor strap
• BUCKET transport bag
