KRATOS SAFETY IN LOCK-3 removable anchor point
Article MPN: FA6003800
The anchor point is designed for installation in concrete, steel and timber structures || Static strength 12 kN || 1 user
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

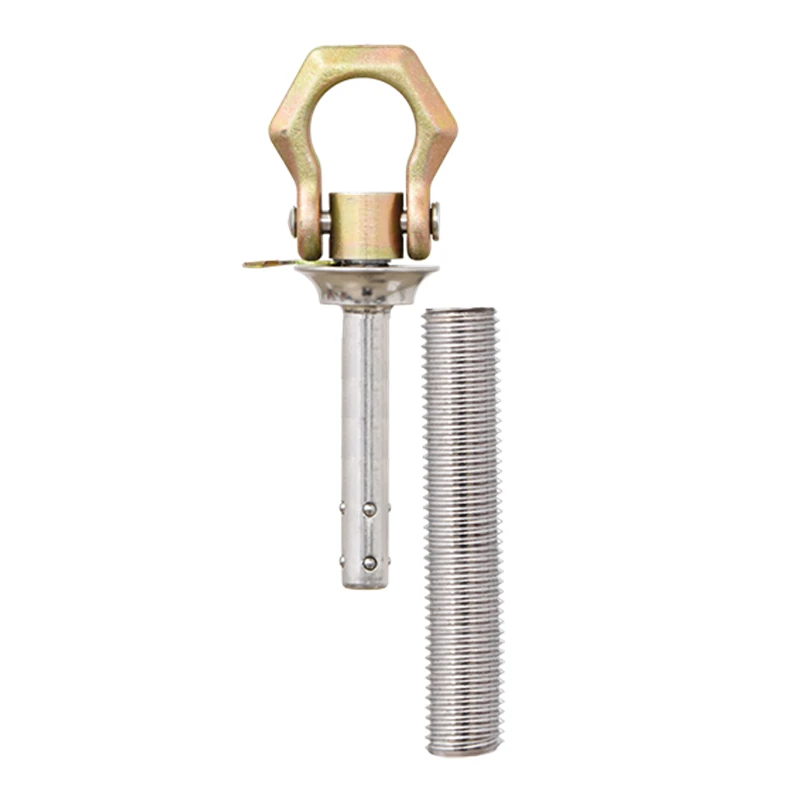

KRATOS SAFETY IN LOCK-3 is a removable anchorage point for fall protection, work positioning and rescue systems. The anchorage eye is inserted into a permanently installed M20 × 110 mm threaded socket and secured against accidental removal. The socket is included in the package. The anchorage point can be loaded in all three directions.
Technical specifications
- Number of users: 1
- Static strength: 12 kN
- MBS: > 23 kN
- Socket: M20 × 110 mm
- Socket material: stainless steel
- Anchorage eye material: alloy steel
- Weight: 340 g
- Standard: EN 795:2012 Type A
- Manufacturer code: FA 60 038 00
Package contents
- 1× removable anchorage point
- 1× M20 × 110 mm threaded anchorage socket
Specifications
| Article MPN | FA6003800 |
|---|---|
| Certification | EN 795:2012/A |
| Weight | 0,34 kg |
| Material | steel |
| Static strength | 12 kN |
Manufacturer/Importer information
| Manufacturing company | Kratos Safety SAS |
|---|---|
| Address | 689, Chemin du Buclay, 38540 HEYRIEUX, FRANCE |
| info@kratossafety.com |
Download
KRATOS SAFETY IN LOCK-3 certificate of test (pdf, 216.3 kB)
KRATOS SAFETY IN LOCK-3 product sheet (pdf, 515 kB)
KRATOS SAFETY IN LOCK-3 manual (pdf, 1.7 MB)
Within 5 - 7 days
65,06 £
65,06 £ excl. VAT
65,06 £ excl. VAT
Fastener for concrete, metal or wooden structures for removable anchor point KRATOS SAFETY IN LOCK-3
