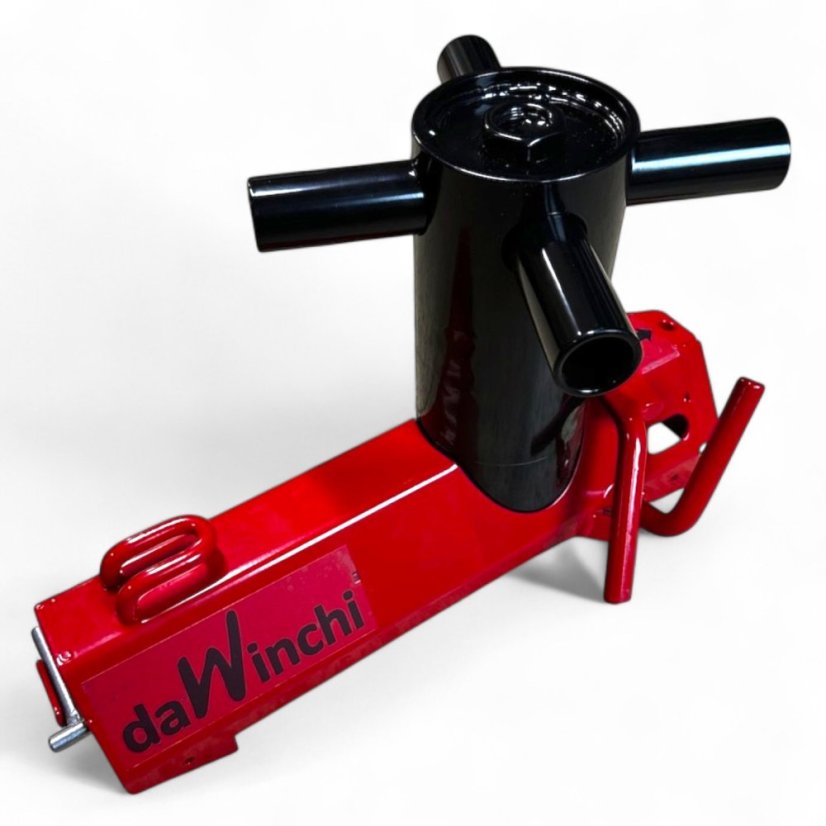

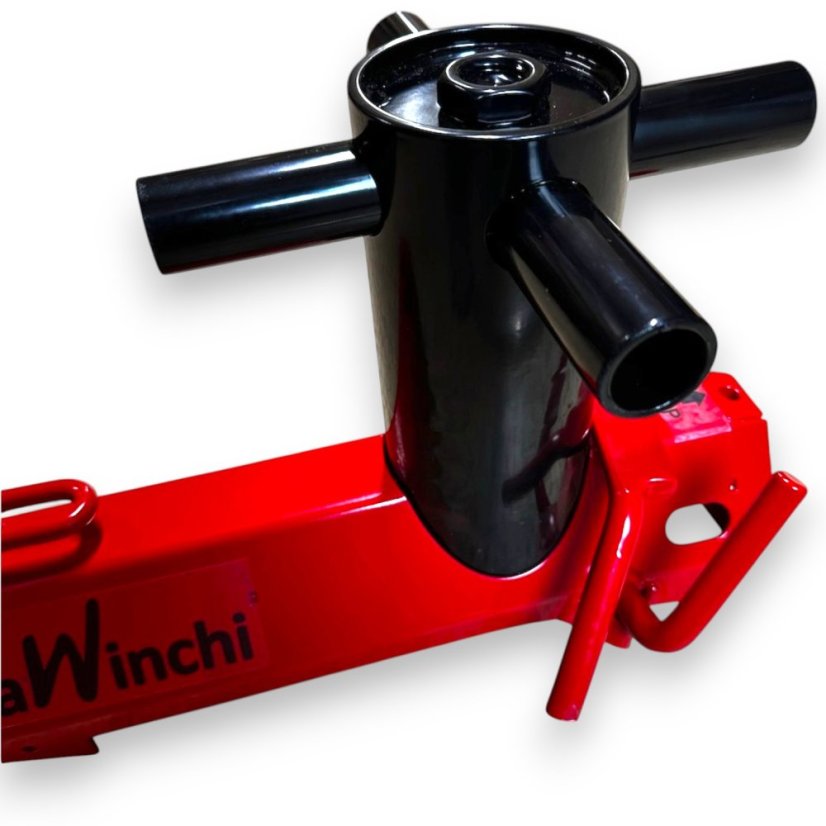

EDER DaWINCHI rigging bollard with winch
Combined lowering system - winch/bollard || MBS 50 kN || WLL 10 kN || Rope diameter 10 - 19 mm
The EDER DaWinchi has been developed by the professional climber, Dirk Lingens, for forestry rigging operations. Being able to be used as a winch or a bollard, combined with its compact design, puts this winch ahead of others. Change between lowering and winching requires no modification as the central drum turns in only one direction.

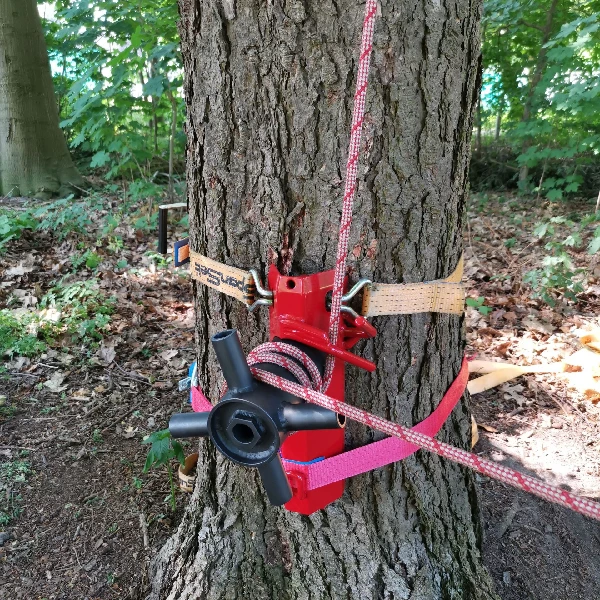

The EDER DaWinchi can be attached to a tree trunk with one hand; the winch has an integrated steel nail which provides a provisional mount on the trunk after which a lashing strap can be used (not included in delivery). If extra tree protection under the winch is required (not included in delivery), payload is reduced by half and single person mounting is no longer possible.
- Can be used as a winch or bollard
- WLL (payload) 10 kN
- MBL (breaking strength) 50 kN
- Drum diameter 100 mm
- For ropes 10-19 mm in diameter
- Maximum load on the pole 80 kg

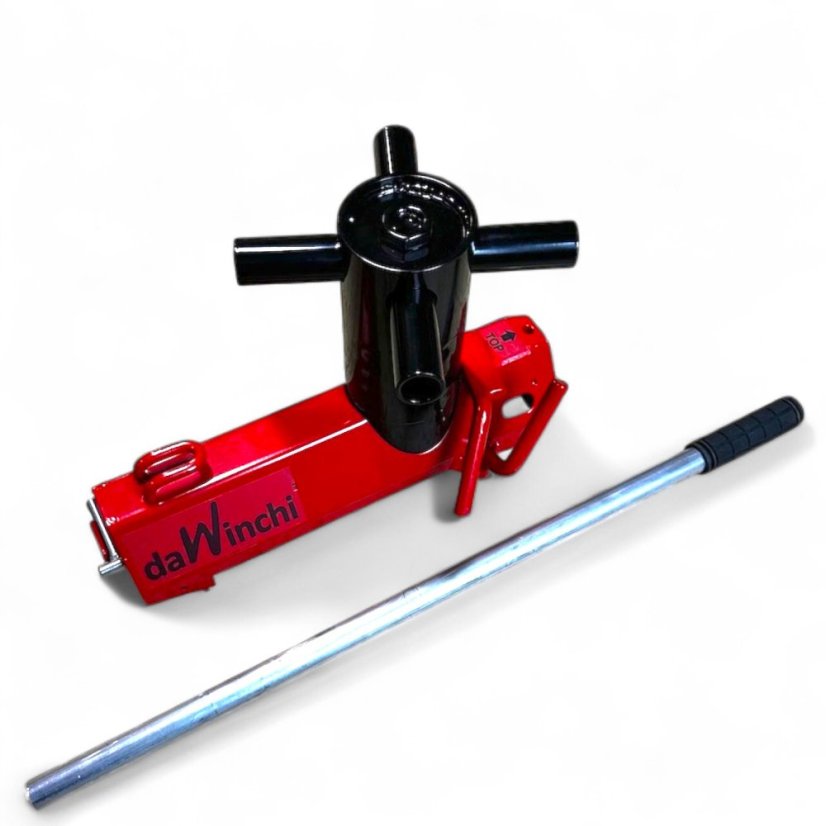

- Pole length 75 cm
- Pole weight 1 kg
- Weight without pole 16 kg
Please note: the Eder DaWinchi is not PPE compliant and therefore not approved for personal safety.
| Article MPN | 640000 |
|---|---|
| Weight | 16 kg |
| Material | steel |
| Breaking load (MBS) | 50 kN |
| Working load (WLL) | 10 kN |
| Průměr | 100 mm |
| Rope Diameter | 10 - 19 mm |
| Manufacturing company | Eder Maschinenbau GmbH |
|---|---|
| Address | Schweigerstraße 6, 38302 Wolfenbüttel, Germany |
| info@eder-maschinenbau.de |
Matěj Keyř
PositivesPrůměr bubnu na menší váhy super. Překvapivě jednoduché zvedání břemen. Snadná instalace. Cena!!!!
NegativesNevím kde udělali soudruzi chybu ale nastříkat buben barvou, která se při zahřátí připeče na lano, je vážně blbost. Po prvním použití je lano skoro na ...more
51,03 £ excl. VAT
