AIRSPADE 5000 Utility Series Kit 150 CFM is designed for safe exposure of underground utilities using compressed air.

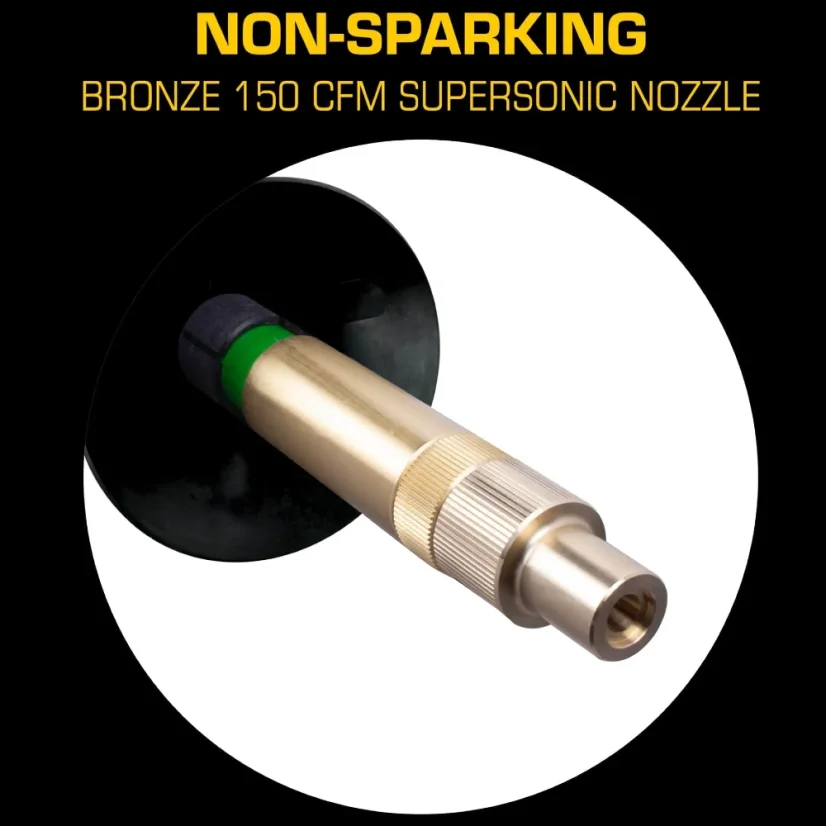

It uses a supersonic bronze nozzle (non-sparking material) with output 4.2 m³/min, generating a focused high-speed air jet exceeding Mach 2.

The tool features non-sparking components (bronze, brass) and an insulated fiberglass barrel approx. 1.2 m, rated up to 300 kV, with an extension approx. 0.9 m rated to 225 kV.

The in-line handle ensures precise control. The aluminium body reduces fatigue.

Equipped with dead-man trigger, trigger guard and pressure gauge. Connection via 3/4" NPT with swivel coupling.

Includes 45° adapter, hose and transport case.

Key advantages of AirSpade technology

Maximum safety near utilities

Non-destructive excavation

High performance

Ergonomic control

Technical information

Model: AirSpade 5000 Utility Series Kit 150 CFM
Air consumption: 4.2 m³/min (150 CFM)
Barrel length: approx. 1.2 m
Extension: approx. 0.9 m
Insulation: up to 300 kV (barrel), approx. 225 kV (extension)
Nozzle: supersonic, bronze (non-sparking)
Material: aluminium, fiberglass, brass, bronze
Connection: 3/4" NPT, swivel coupling
Hose: approx. 3 m, Ø approx. 25 mm
Safety features: dead-man trigger, trigger guard, pressure gauge

Package contents

• AirSpade 5000 Utility handle

• Fiberglass barrel approx. 1.2 m

• Fiberglass extension approx. 0.9 m

• Supersonic nozzle 4.2 m³/min (150 CFM)

• Auxiliary handle

• 45° adapter

• Air hose approx. 3 m

• Transport case

• User manual
