Stainless steel hanger SKYLOTEC PLATE 12
Country of origin: Italy
Article MPN: AP-085-12
MBS 25 kN || Weight 42 g || For 12 mm shafts || Stainless steel
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

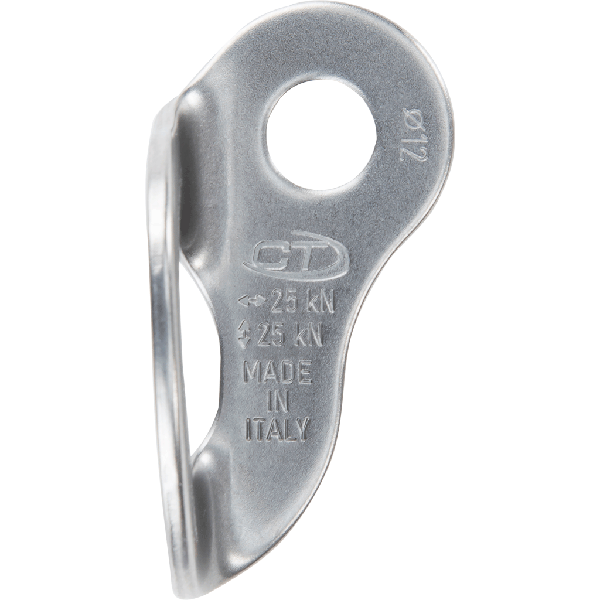

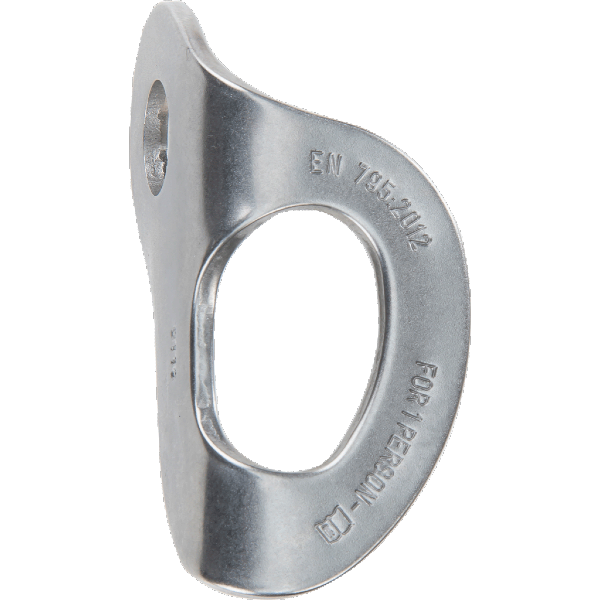

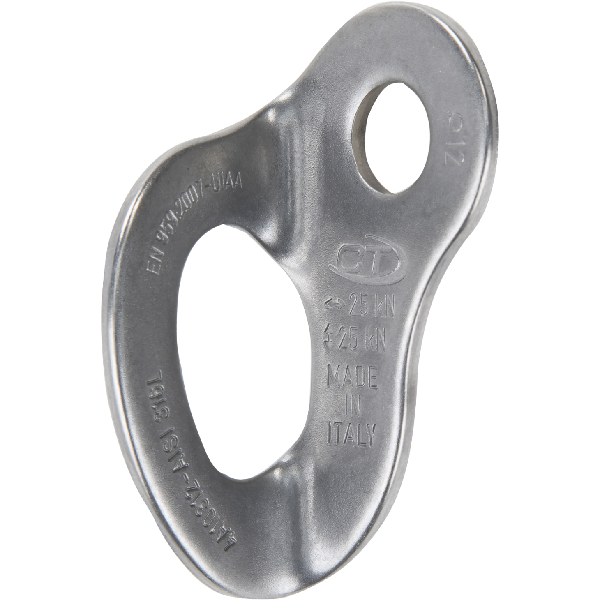

Hanger for creating a solid anchor point made of AISI 316L stainless steel designed for work on roofs and facades. Certified for one-person anchoring when used with the ANCHOR BOLT 12 and compliant with EN 795-A, EN 959, and UIAA 123 standards.
- Made of corrosion-resistant AISI 316L stainless steel
- Ø 12 mm hole
- Breaking load: 25 kN
- For concrete mounting only
- Designed for 1 person
- Temperature range: -40 °C to +80 °C
- Construction height: 50 mm
- Weight: 0.042 kg
- Standards: EN 795:2012/A, EN 959:2007, UIAA 123
- Service life: up to 30 years
Specifications
| Article MPN | AP-085-12 |
|---|---|
| Certification | EN 795:2012/A , EN 959:2007 , UIAA 123 |
| Weight | 42 g |
| Material | stainless steel |
| Breaking load (MBS) | 25 kN |
| Shaft diameter | 12 mm |
Manufacturer/Importer information
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
| info@skylotec.com |
Download
General instructions SKYLOTEC PLATE 12 (pdf, 824.4 kB)
Procedure for periodic check SKYLOTEC PLATE 12 (pdf, 270.2 kB)
Advices for periodic check SKYLOTEC PLATE 12 (pdf, 493.1 kB)
Device for periodic check SKYLOTEC PLATE 12 (pdf, 257.8 kB)
SKYLOTEC PLATE 12 technical sheet (pdf, 345.1 kB)
SKYLOTEC PLATE 12 product sheet (pdf, 343.6 kB)
