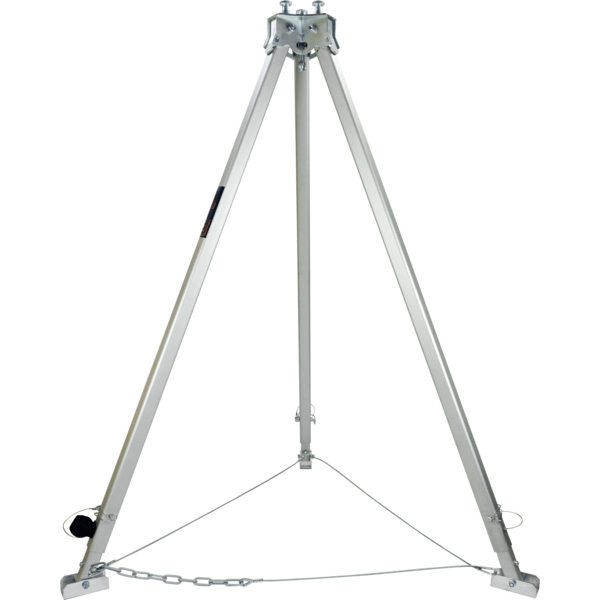

SKYLOTEC TRIBOC tripod
Country of origin: GermanyHeight 1.57 - 2.52 m || Diameter of the hole under the tripod 1.60 - 2.49 m || Weight 25.1 kg (incl. chain) || Load capacity 500 kg || Supplied incl. TRIBOC CHAIN chain
Mobile aluminium tripod designed as an anchor point above confined space entries. Suitable for fall protection, rescue and material handling.
• Certification: EN 795/B:2012, CEN/TS 16415:2013
• Maximum number of users: 2
• WLL (material, with chain): 500 kg
• Dynamic force limitation in fall arrest system: max. 6 kN
• Height: 1,573–2,524 mm
• Clearance diameter below tripod: up to 2,495 mm
• Leg span (outer edge): up to 2,495 mm
• Minimum ground load capacity: 5 kN / leg (min. 15 kN total)
• Telescopic legs with multiple adjustment positions
• Mandatory use of TRIBOC CHAIN (AP-009) stabilising chain
• Compatible with winch and self-retracting lifeline
• Material: aluminium / steel
• Weight: 23.49 kg
• Maximum service life: 20 years
| Article MPN | AP-004 |
|---|---|
| Certification | EN 795/B , CEN/TS 16415:2013 |
| Weight | 23,49 kg |
| Load capacity | 500 kg |
| Number of users | 2 |
| Diameter of the hole under the tripod | 1,60 - 2,49 m |
| Height | 1,57 - 2,52 m |
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
