NANOLINK FLEX Y – Double Lanyard with Compact Energy Absorber (No hardware / FS90 ALU / FS90 ST ANSI / FS64 ALU / Hook 85 mm FS92 / Hook 110 mm FS110)

Compact and robust next-generation energy-absorbing lanyard designed for users weighing 50–150 kg. The NANOLINK FLEX Y series provides maximum safety, long service life, and outstanding comfort for professional work at height.
The double Y design allows safe transitions between anchor points, ensuring continuous protection at all times.

Available in six variants:

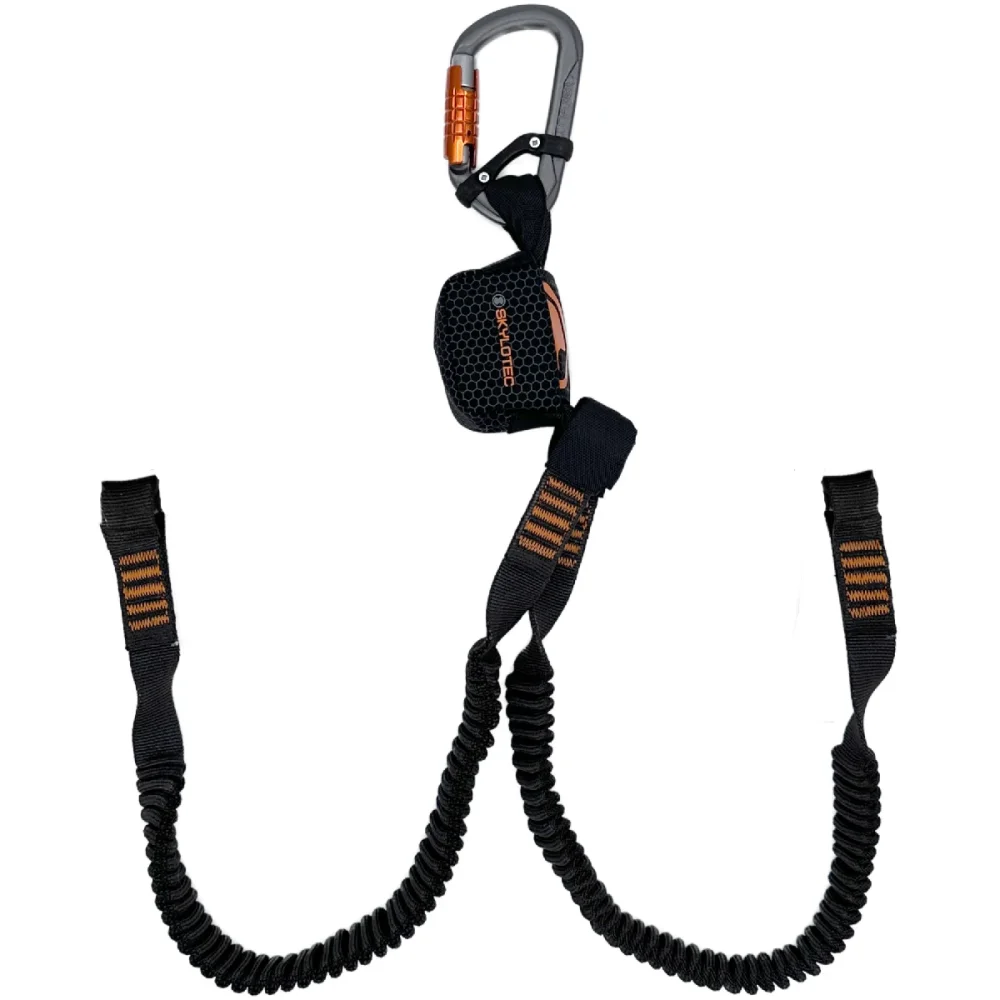

• No hardware – without end connectors, allows individual configuration

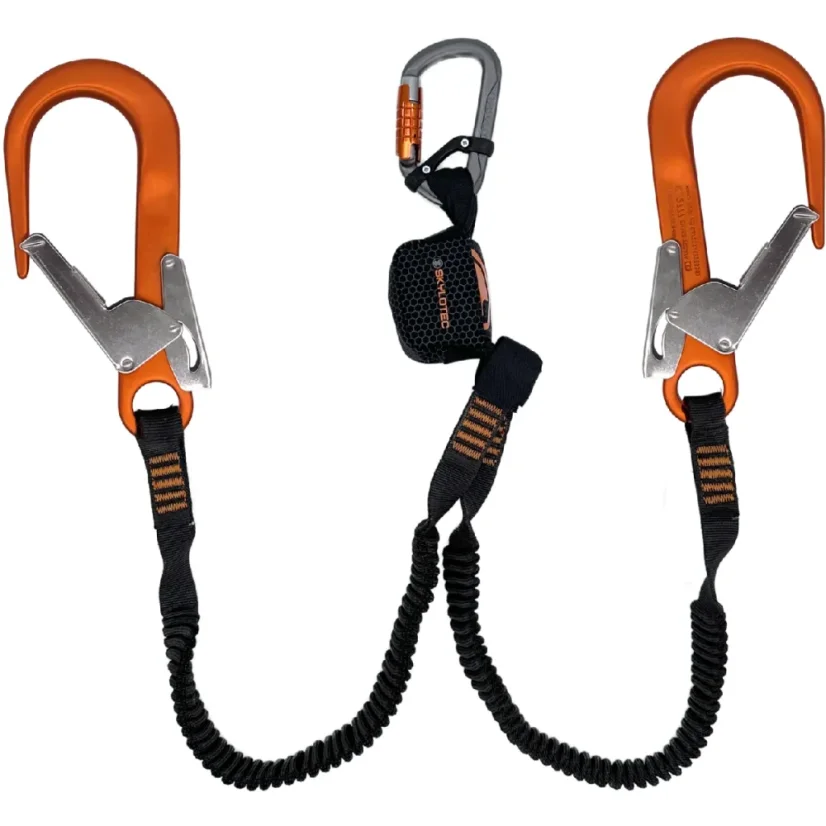

• Hook 60 mm FS90 ALU – aluminium scaffold hooks with 60 mm gate opening

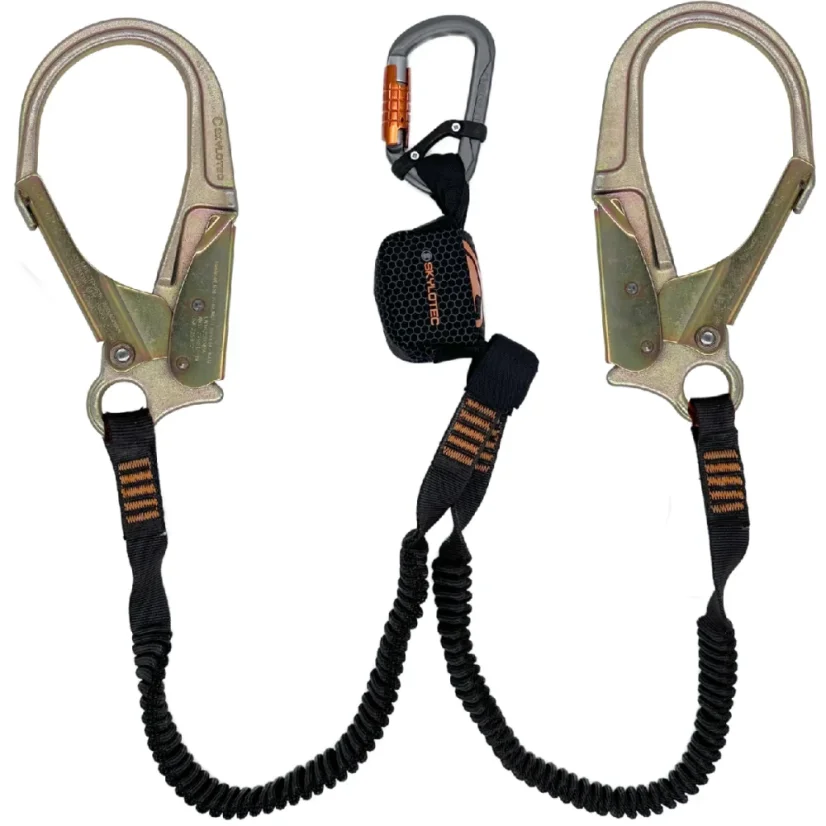

• Hook 60 mm FS90 ST ANSI – steel scaffold hooks with 60 mm gate opening (ANSI compliant)

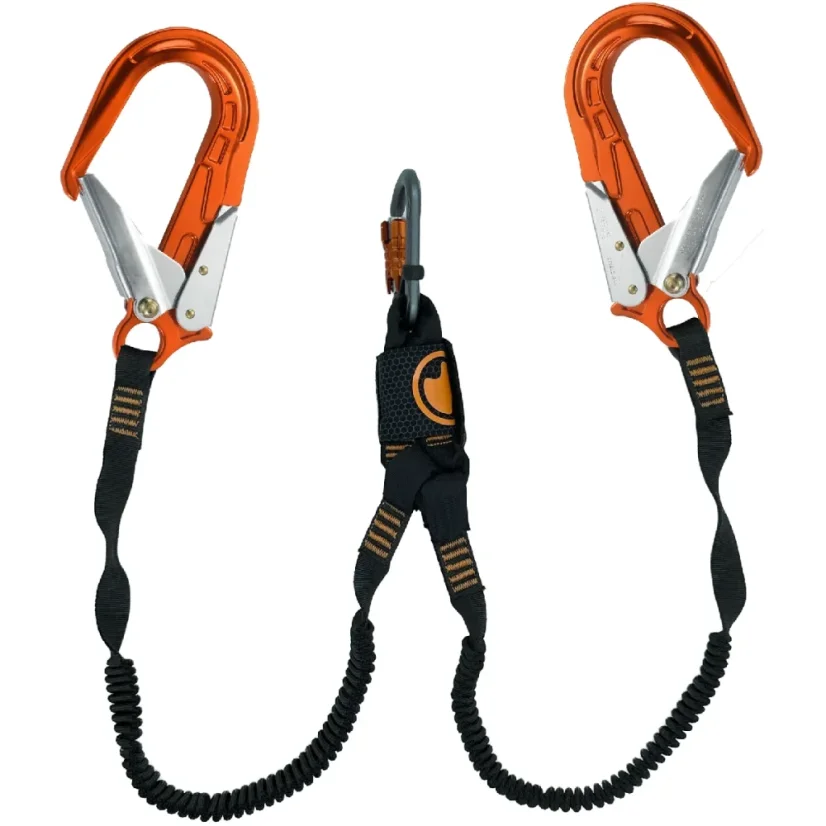

• Hook 64 mm FS64 ALU – aluminium scaffold hooks with 64 mm gate opening

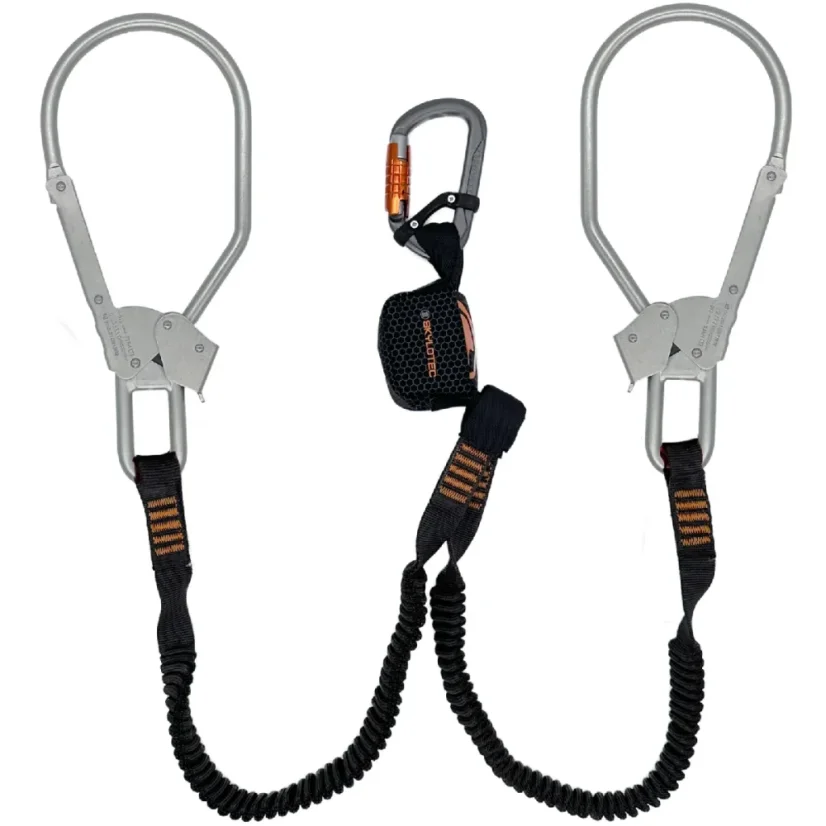

• Hook 85 mm FS92 – steel rebar hooks with 85 mm gate opening

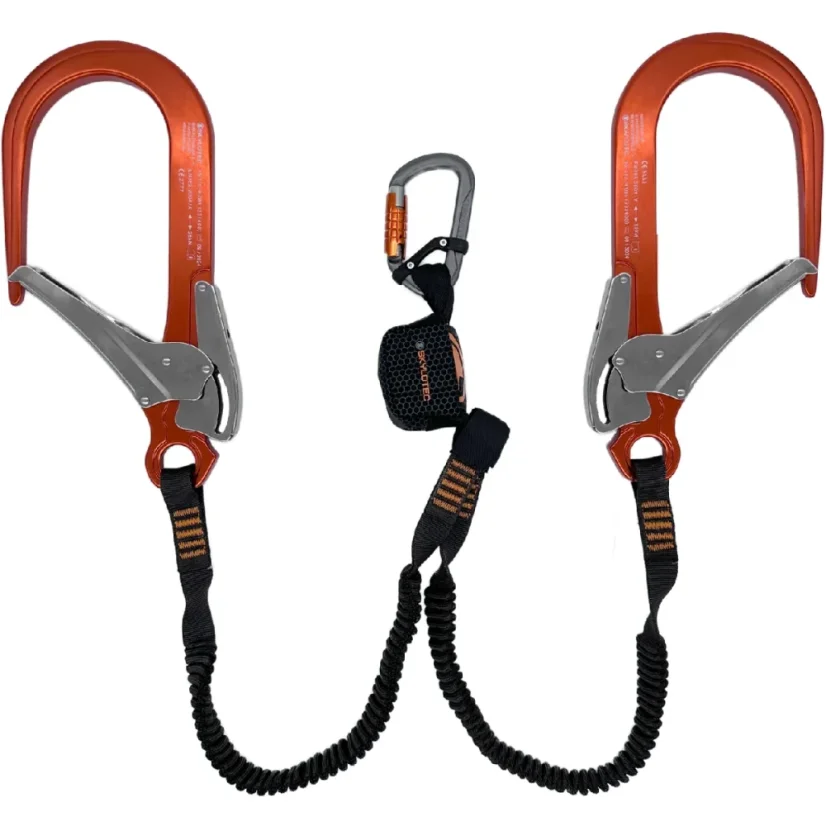

• Hook 110 mm FS110 – aluminium rebar hooks with 110 mm gate opening

Key features and applications

• Compact and ergonomic energy absorber for users 50–150 kg

• Double Y configuration for safe transitions between anchor points

• Sharp-edge tested

• Integrated fall indicator

• Highly durable materials (Dyneema®, Polyester, Aluminium/Steel) for long service life even in harsh conditions

• Ideal for roofing, scaffolding, steelwork, platforms, towers, masts, industrial facilities, and rope access applications

Technical specifications

• Lanyard length: 1.8 m

• Rope diameter: 25 mm

• Minimum strength: 22 kN

• Maximum impact force: 6.0 kN

• Temperature range: –35 °C to +45 °C

• Hand wash: 40 °C

• Service life: up to 10 years

• Standard: EN 355:2002, RFU PPE-R/11.063

• Material: Dyneema®, Aluminium, Steel, Polyester

• Colour: grey / black / orange
