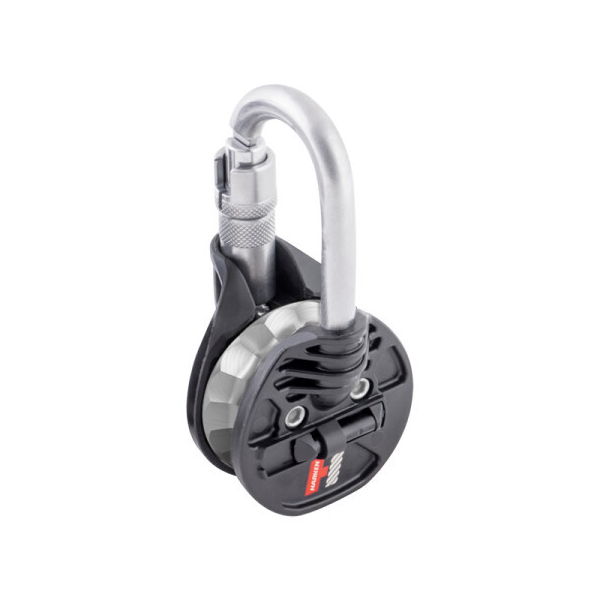

Pulley with safety HARKEN SNATCHET RATCHETING 65 mm

Material: steel, stainless steel
Roll diameter: 65 mm
Dimensions: 147 x 70 x 72 mm
Limit load MBS: 38 kN (2 x 19 kN)
Working load WLL: 10 kN (2 x 5 kN)
Rope diameter: 9 - 14 mm
Efficiency: 80% / 30%
Certification: EN362:2004/M, ANSI Z359.12-2019

Specifications:
- two-way pulley with fuse - option to block the roll
- handling loads up to 500 kg
- the rope can be installed without disconnecting it from the anchor point
- the roll lock can be activated and deactivated under load
- optimal pulley diameter reduces friction and rope wear
- no risk of misalignment between pulley and carabiner that could damage the system

- the faceted roll on this version of the SNATCHET pulley with a lock provides significantly better control
above the lowered load than a classic roll.
- the roll lock is used for one-way blocking of the pulley,
the roll thus rotates to one side (lifting loads with a pulley efficiency of 80%)
on the opposite side, the roll is blocked (lowering loads - added friction
significantly increases control over the lowered load, the difference is striking in practice)
So it is a combination of the advantages of a pulley on one side and a trigger ring on the other.
- can be easily installed as a redirection element of an existing boot system
- robust carabiner with stainless steel pulley is easy to attach

- 3-action carabiner lock safety
