The PROTEKT TU 110 is a lowering device designed for controlled lowering of branches and trunk sections during arborist work and sectional tree dismantling.

The device uses a friction drum around which the lowering rope is routed. Friction between the rope and the drum allows smooth control of lowering speed and load management when handling heavy loads.

The PROTEKT TU 110 is mounted to the tree trunk using ratchet straps. The base is equipped with anti-slip teeth, which ensure a stable position on the trunk even under high load.

This design is intended primarily for installation on trunks that are to be felled, where mechanical damage to the bark is not a concern. If the trunk needs to be protected, the PROTEKT TU 100 is recommended; its base is equipped with rubber blocks.

The device is suitable for arborist rigging systems, sectional tree dismantling and controlled lowering of heavy wood sections.

The package includes a transport box and two ratchet straps, allowing quick installation of the device on a tree trunk.

Technical information

• Device type: Lowering device

• Material: Galvanized steel

• WLL: 10 kN

• Weight: 6.45 kg

• Dimensions: 335 × 300 × 250 mm

• Mounting: Ratchet straps

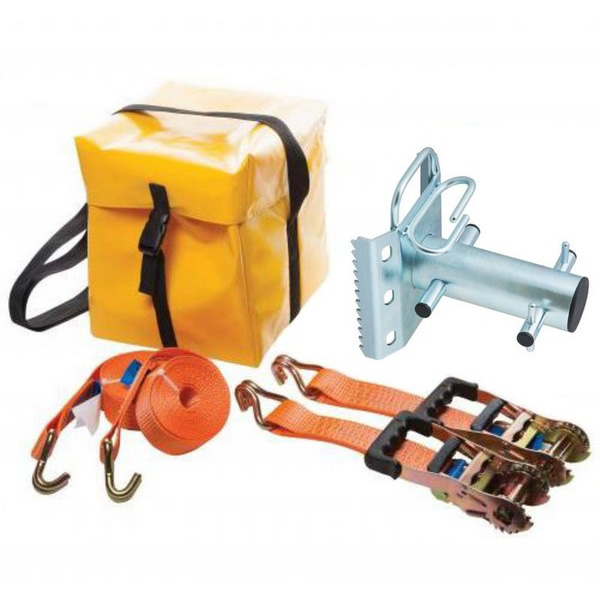

Package contents

• 1× PROTEKT TU 110 lowering device
• 2× AX 500 ratchet straps – length 4 m, strength 5,000 daN
• 1× Transport box
