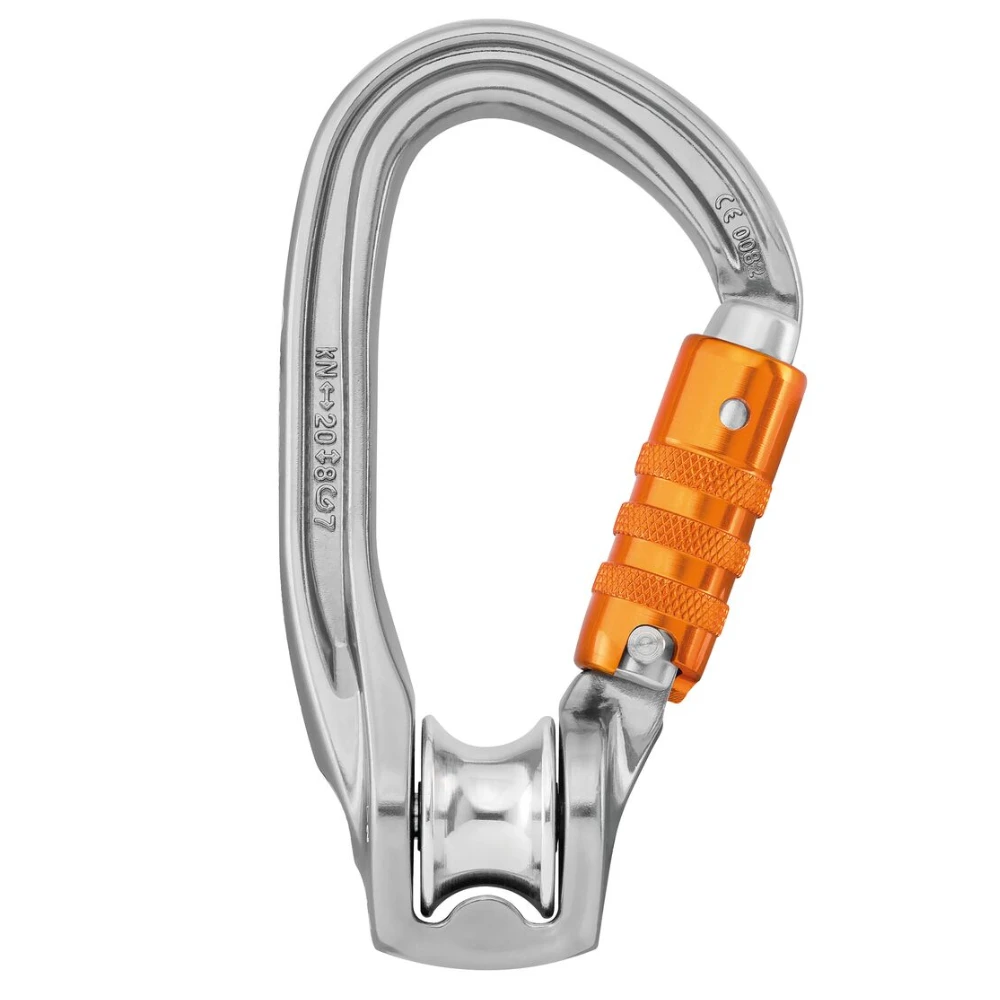

PETZL ROLLCLIP Z Triact-Lock pulley-carabiner
Article MPN: P75 TL
MBS 20 kN || WLL 400 kg || Efficiency 85% || Weight 110 g || Gate opening 20 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
Pulley carabiner allowing installation in anchor points and on aids.

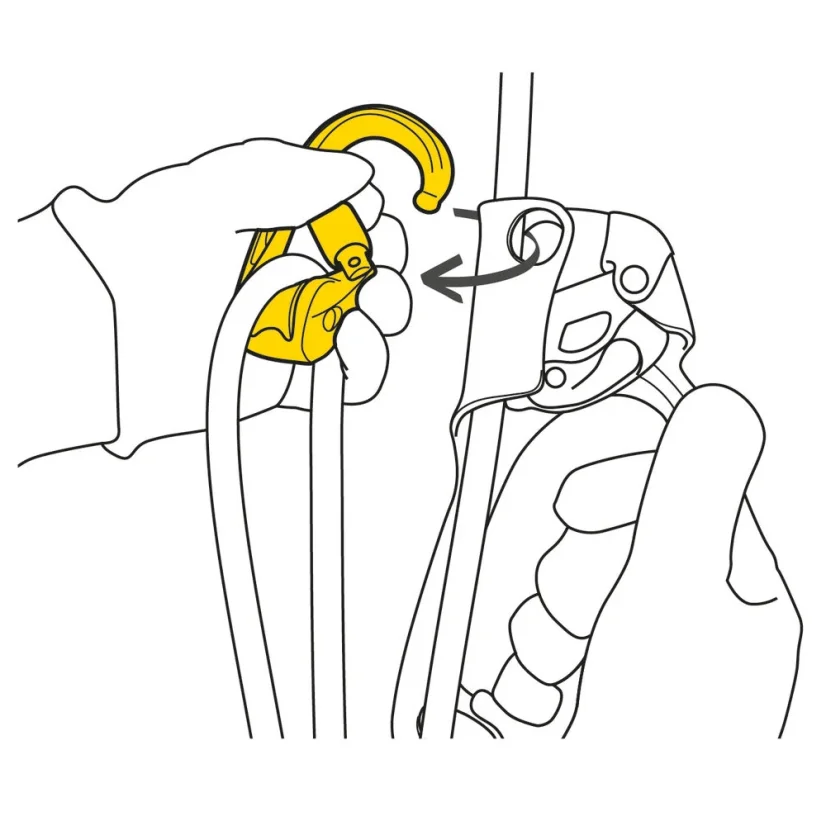

The carabiner latch opens on the opposite side of the pulley and can be used that way
connect to other devices. Comes with two locking lock systems:
automatic TRIACT LOCK or screw-type SCREW-LOCK.

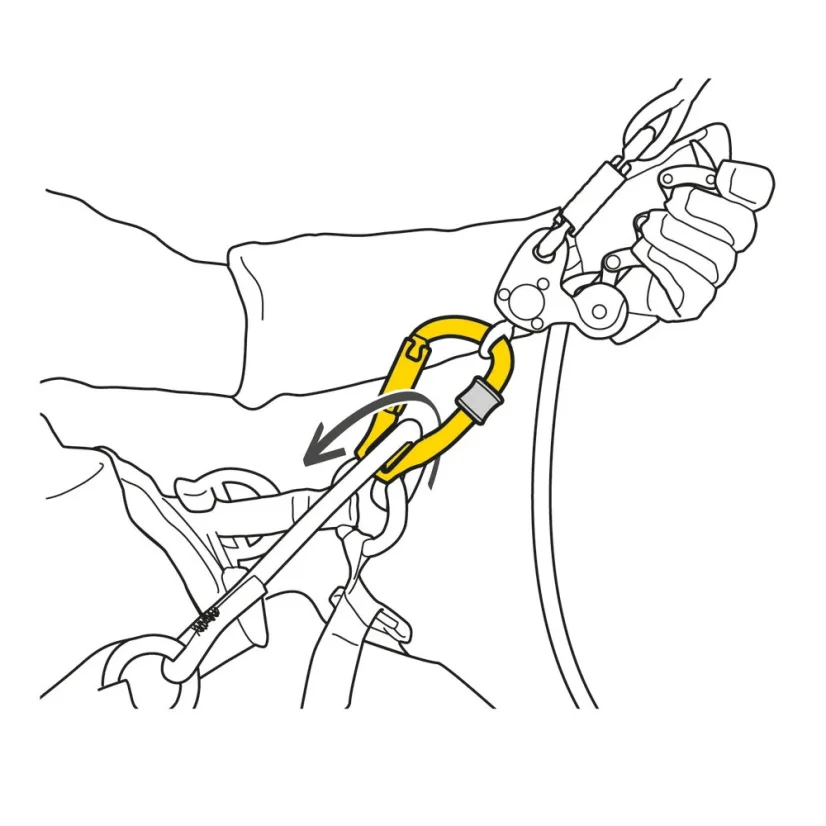

ROLLCLIP Z can be used, for example, to connect the ZIGZAG device to the connection
SEQUOIA harness bridge for increased lateral mobility.
| Rope diameter | 7 - 13 mm |
| Disc diameter | 18 mm |
| Efficiency | 85 % |
| Mass | 110 g |
| Work load | 4 (2 x 2) kN |
| Bearing type | balls |
| Certification | CE EN 362, EN 12278, EAC |
Specifications
| Article MPN | P75 TL |
|---|---|
| Certification | EN 12278 , EN 12275 , EAC |
| Weight | 110 g |
| Material | dural |
| Breaking load (MBS) | 20 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Major Axis) | 8 kN |
| Rope Diameter | 7 - 13 mm |
| Gate opening | 20 mm |
| Efficiency | 85% |
Manufacturer/Importer information
| Manufacturing company | Petzl International |
|---|---|
| Address | Zone Industrielle, 38920 Crolles, Isère, France |
| international@petzl.com |
Download
PETZL ROLLCLIP Z Triact-Lock manual (pdf, 2.4 MB)
PETZL ROLLCLIP Z Triact-Lock declaration of conformity (pdf, 721.9 kB)
