PETZL ROLLCLIP A Triact-Lock pulley-carabiner
Article MPN: P74 TL
MBS 20 kN || WLL 400 kg || Efficiency 85% || Weight 105 g || Gate opening 22 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

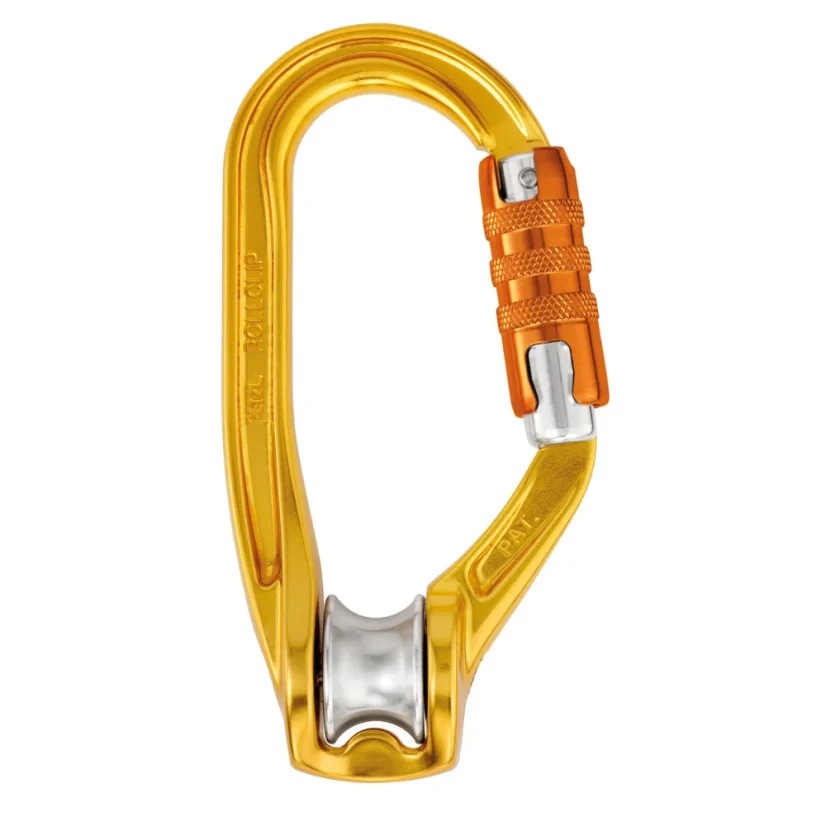

Carabiner with integrated pulley and triple-action lock safety.

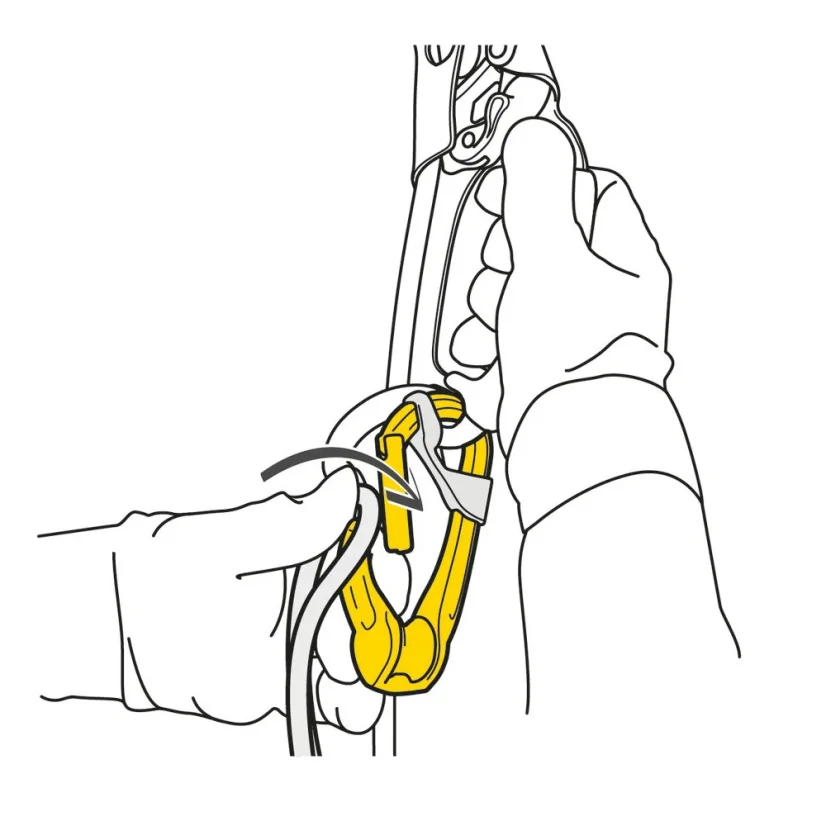

The non-fuse version is intended for use as a redirect
on the handle of the ASCENSION rope block during rope ascents.

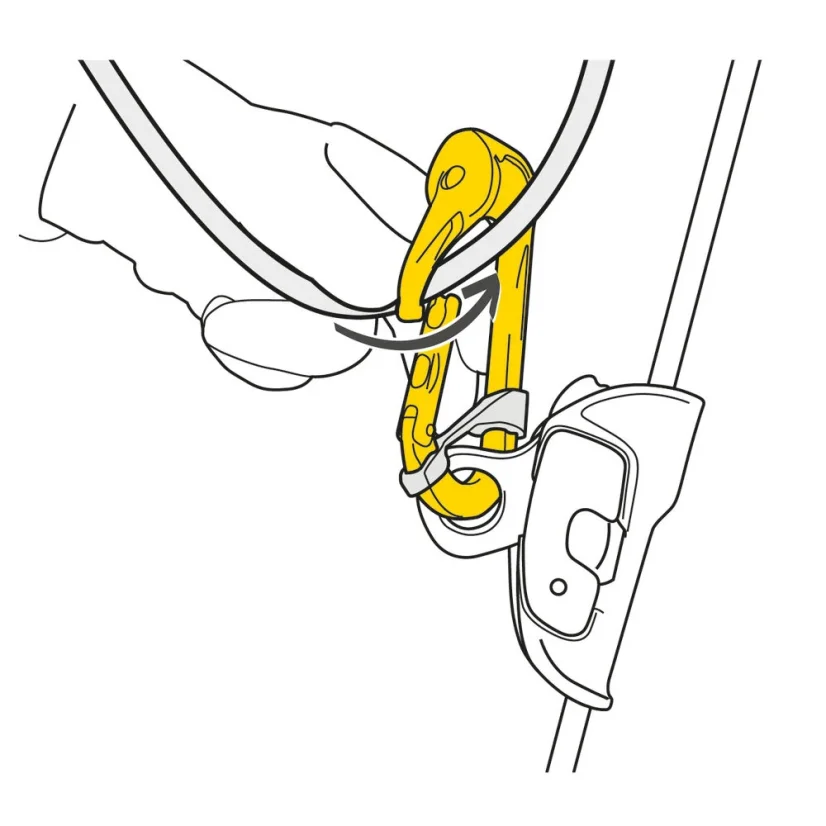

The TRIACT-LOCK version is designed to reduce friction
on the work rope or to redirect the work rope.
| Rope diameter | 7 - 13 mm |
| Disc diameter | 18 mm |
| Efficiency | 85 % |
| Mass | 115 g |
| Work load | 4 kN |
| Maximum load | 20 kN |
| Bearing type | ball-bearing |
| Certification | CE EN 12275, CE EN 12278, EAC |
Specifications
| Article MPN | P74 TL |
|---|---|
| Certification | EN 12278 , EN 12275 , EAC |
| Weight | 115 g |
| Material | dural |
| Breaking load (MBS) | 20 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Major Axis) | 8 kN |
| Working load (WLL) | 400 kg |
| Rope Diameter | 7 - 13 mm |
| Gate opening | 22 mm |
| Efficiency | 85% |
Manufacturer/Importer information
| Manufacturing company | Petzl International |
|---|---|
| Address | Zone Industrielle, 38920 Crolles, Isère, France |
| international@petzl.com |
Download
PETZL ROLLCLIP A Triact-Lock manual (pdf, 2.4 MB)
PETZL ROLLCLIP A Triact-Lock declaration of conformity (pdf, 720.6 kB)
