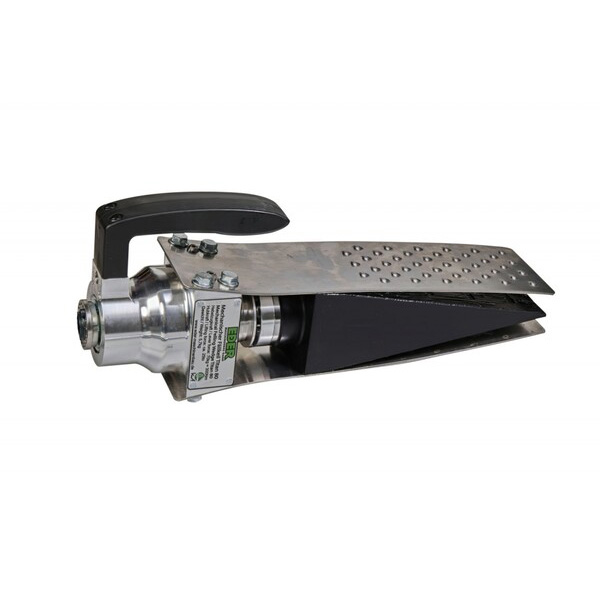

Mechanical wedge EDER TITAN 80 Pro

Length: 480 mm
Width: 120 mm
Height: 165 mm
Weight with ratchet: 5.6 kg
Dimensions HxWxD: 80 x 90 x 224 mm
Wedge extension: 160 mm
Thread pitch: 5 mm
Max. lifting force: 25 t (at approx. 300 Nm)
Material: steel, aluminum, plastic

- a great helper in logging
- the wedge can be controlled using an impact wrench up to 1300 Nn or a standard '' ratchet
- the jaws have 1.5 mm high retention protrusions that improve the adhesion of the wood

Maximum torque of the impact wrench
TITAN 50: 750 Nm
TITAN 80: 1300 Nm

The maximum lifting force is achieved at a torque of approx. 300 Nm - equivalent to 70 kg on the ratchet.

Spare parts:
If you need spare parts, select a specific piece from the offer - see documents for download.
