KRATOS SAFETY WOSLING Under-Tile Roof Anchorage Point
Anchor point with steel loop for installation under roof covering on wooden structures || MBS 20 kN || Static strength 12 kN
Permanent roof anchor designed for installation beneath roof tiles on wooden structures using suitable fasteners. Once installed, only the stainless steel loop remains visible, allowing quick and safe attachment of personal fall protection equipment. Lightweight, corrosion-resistant, and ideal for discreet roof work safety.
-

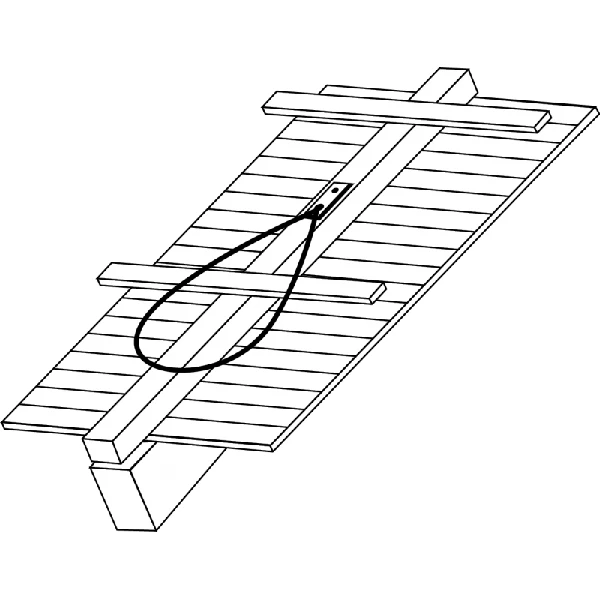

Installed beneath roof tiles – only the stainless steel loop remains visible
-
For wooden structures (minimum section 75 × 100 mm)
-
Material: stainless steel wire rope Ø 4.8 mm, galvanized steel base plate
-
Loop length: 40 cm
-
Static strength > 12 kN, breaking strength > 20 kN
-
Weight: 0.28 kg
-
Number of users: 1
-
Standard: EN 795:2012 Type A
| Article MPN | FA6003004 |
|---|---|
| Certification | EN 795:2012/A |
| Length | 40 cm |
| Weight | 0,280 kg |
| Material | stainless steel , galvanized steel |
| Breaking load (MBS) | 20 kN |
| Rope Diameter | 4,8 mm |
| Static strength | 12 kN |
| Manufacturing company | Kratos Safety SAS |
|---|---|
| Address | 689, Chemin du Buclay, 38540 HEYRIEUX, FRANCE |
