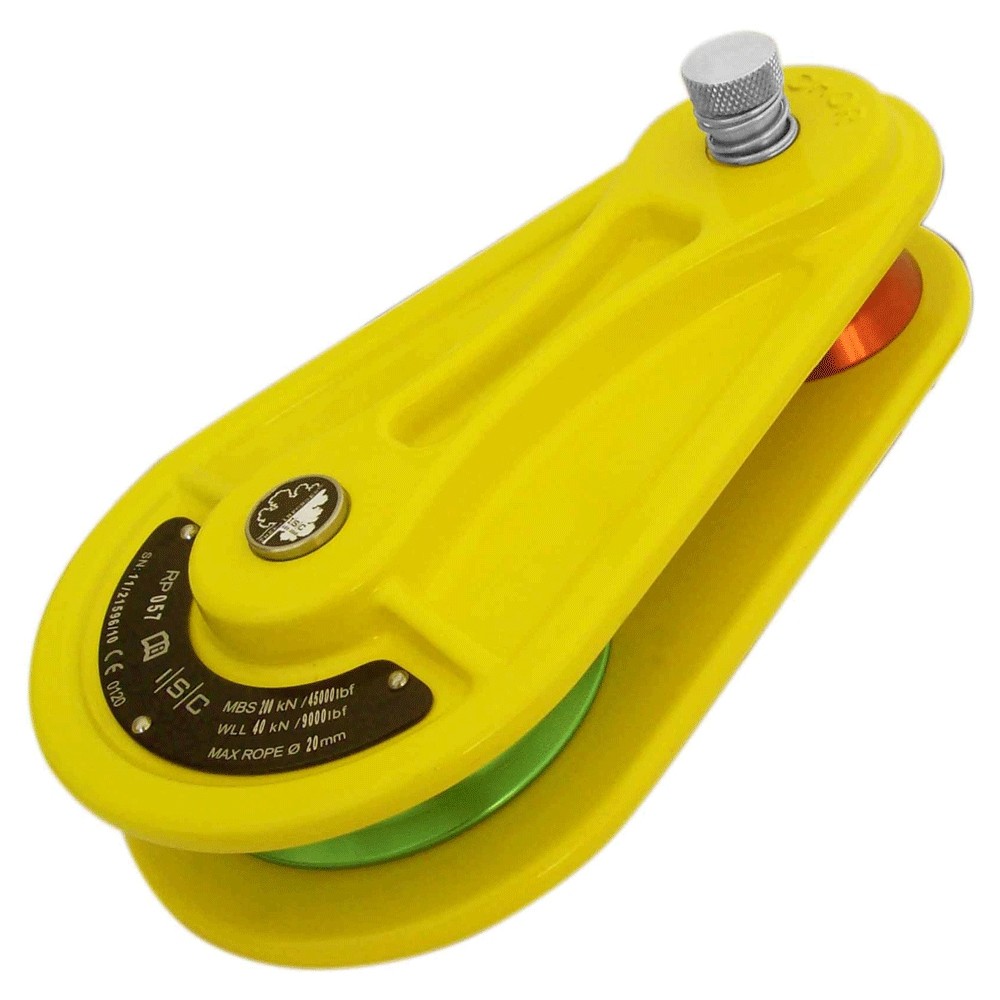

ISC LARGE BLOCK rigging pulley - 200 kN
Country of origin: United Kingdom
Article MPN: IS-RP057-A1
MBS 200 kN || WLL 40 kN || Weight 3,454 g || Rope diameter max. 20 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
Lowering pulley for extreme rigging with a working load limit of up to 40 kN.
Easy and safe installation thanks to the patented QUICKLOCK locking mechanism.
High-quality cast aluminium alloy with powder coating.
Yellow color
Material: cast duralumin (powder coating)
Weight: 3454g
Working load (WLL): 40 kN
Limit load (MBS): 200 kN
Dimensions: 300 x 158 x 108 mm
Max. rope diameter: 20 mm
Specifications
| Article MPN | IS-RP057-A1 |
|---|---|
| Weight | 3454 g |
| Breaking load (MBS) | 200 kN |
| Working load (WLL) | 40 kN |
| Rope Diameter | 19 mm |
Manufacturer/Importer information
| Manufacturing company | International Safety Components Ltd. (ISC) |
|---|---|
| Address | Unit 1, Plot 2, Llandygai Industrial Estate, Bangor, Gwynedd LL57 4YH, United Kingdom |
| sales@iscwales.com |
Download
ISC LARGE BLOCK - 200 kN manual (pdf, 1.6 MB)
ISC LARGE BLOCK - 200 kN declaration of conformity (pdf, 874.6 kB)
ISC LARGE BLOCK - 200 kN product sheet (pdf, 390.7 kB)
