IKAR DB-A3 Anchor tripod
Height 1.43 - 2.54 m || Diameter of the hole under the tripod 0.64 - 2.19 m || Spacing of legs 0.56 - 1.90 m || Load capacity 300 kg || Weight 24 kg

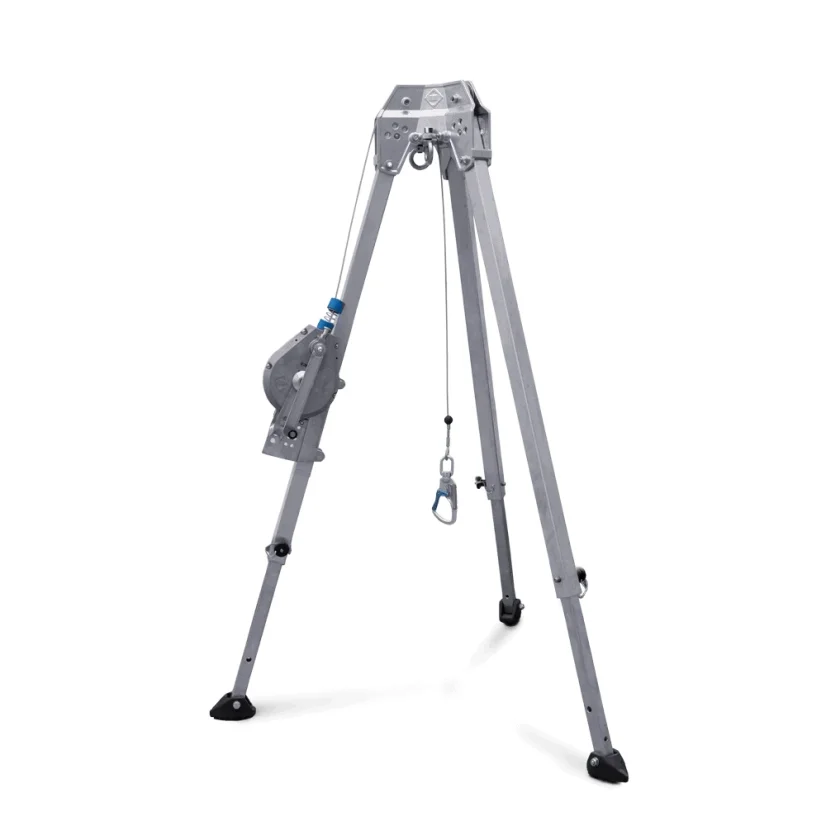

Portable tripod with adjustable legs and 3 integrated pulleys.
The head construction allows leg adjustment at multiple angles without the use of a securing chain between the feet.

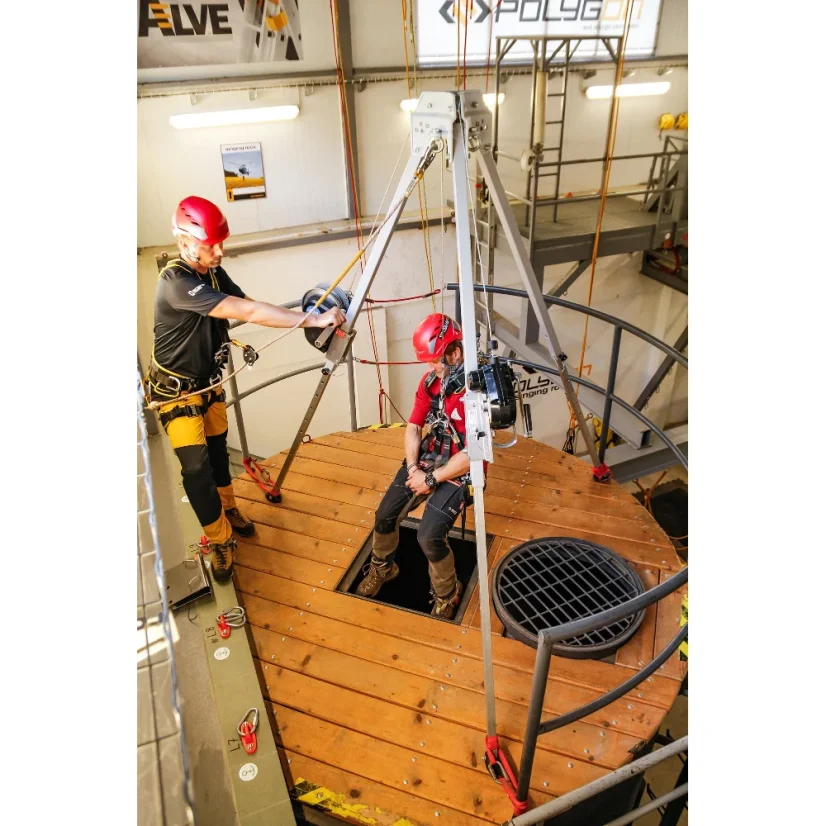

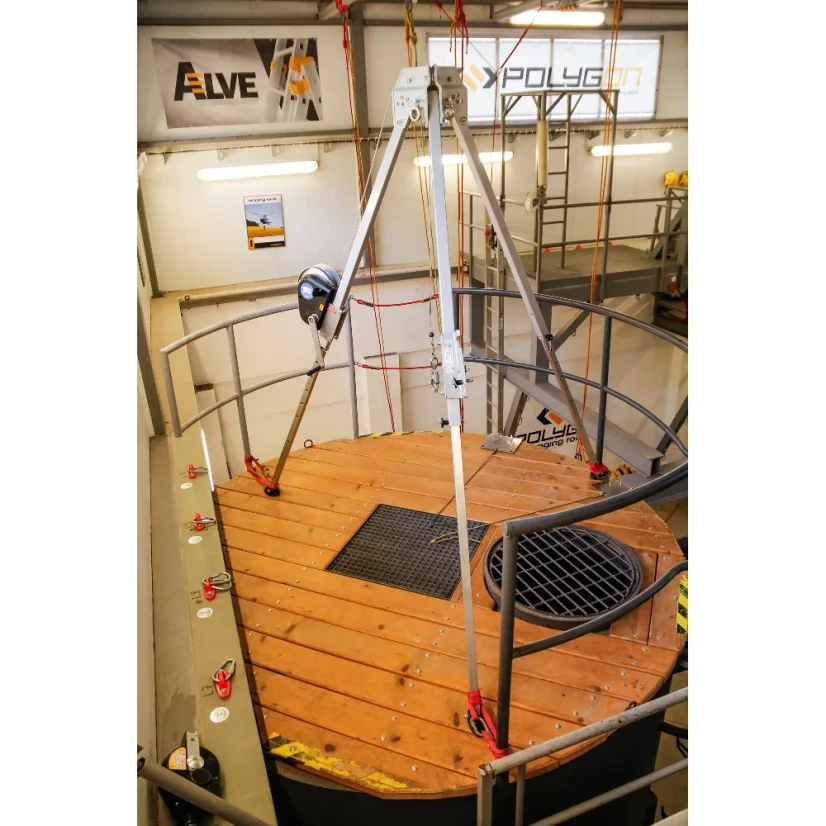

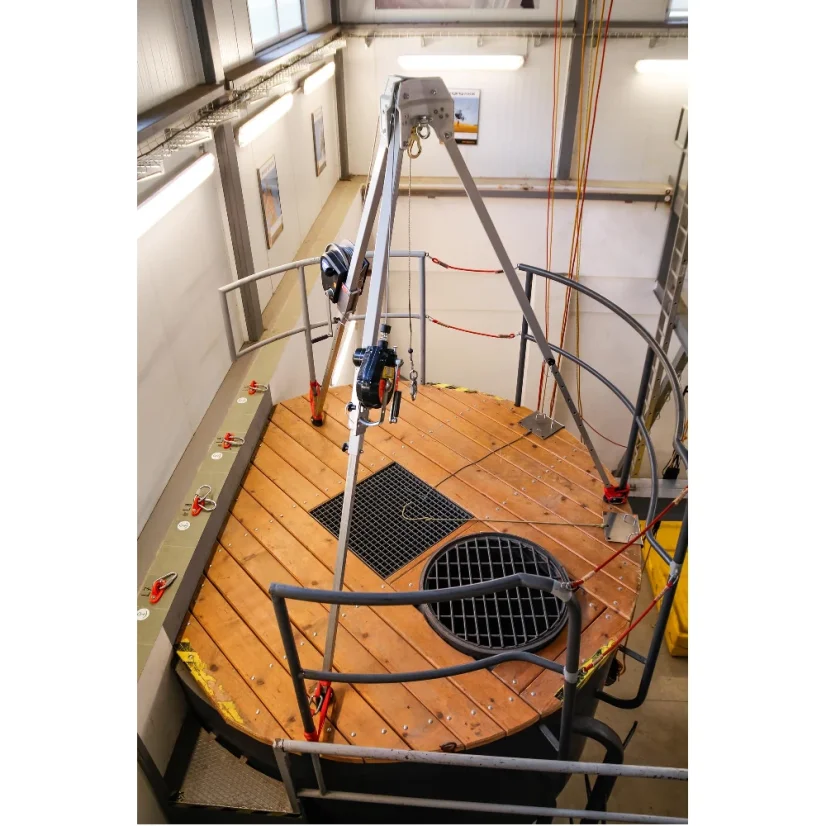

An ideal cost-effective solution for confined spaces, fall protection and rescue.
- aluminum tripod with anti-corrosion finish equipped with 3 anchor points

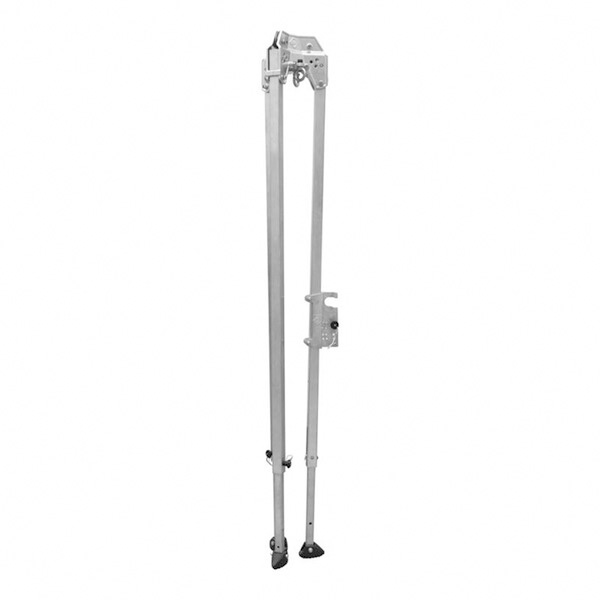

- transport length when folded: 1.56 m
- two-piece independently adjustable telescopic legs with stainless steel locking pins, finished with folding rubber feet with spikes for soft surfaces

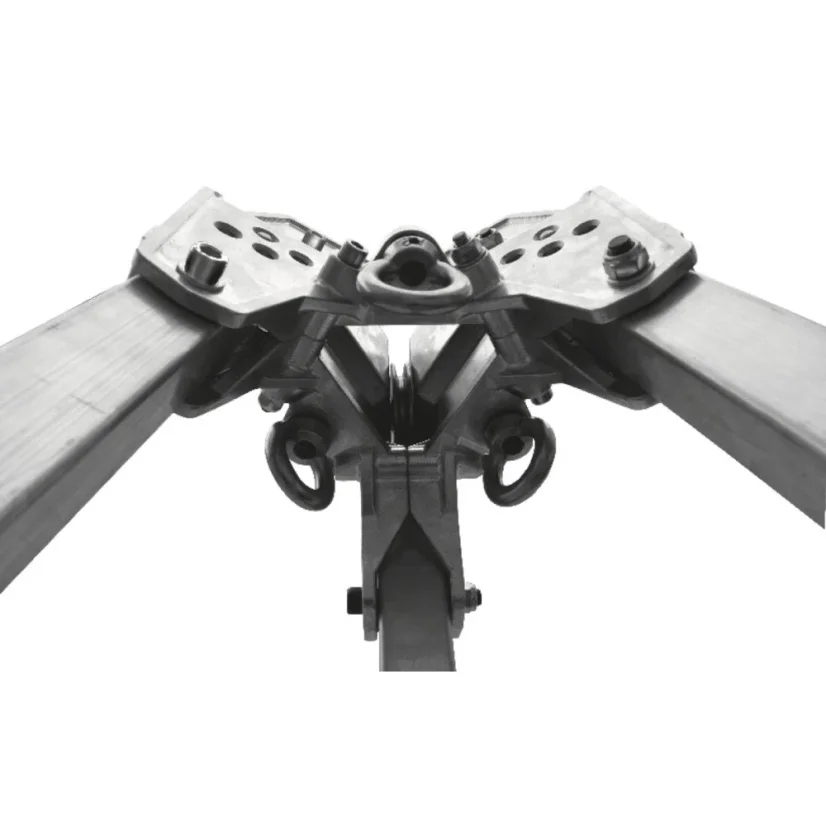

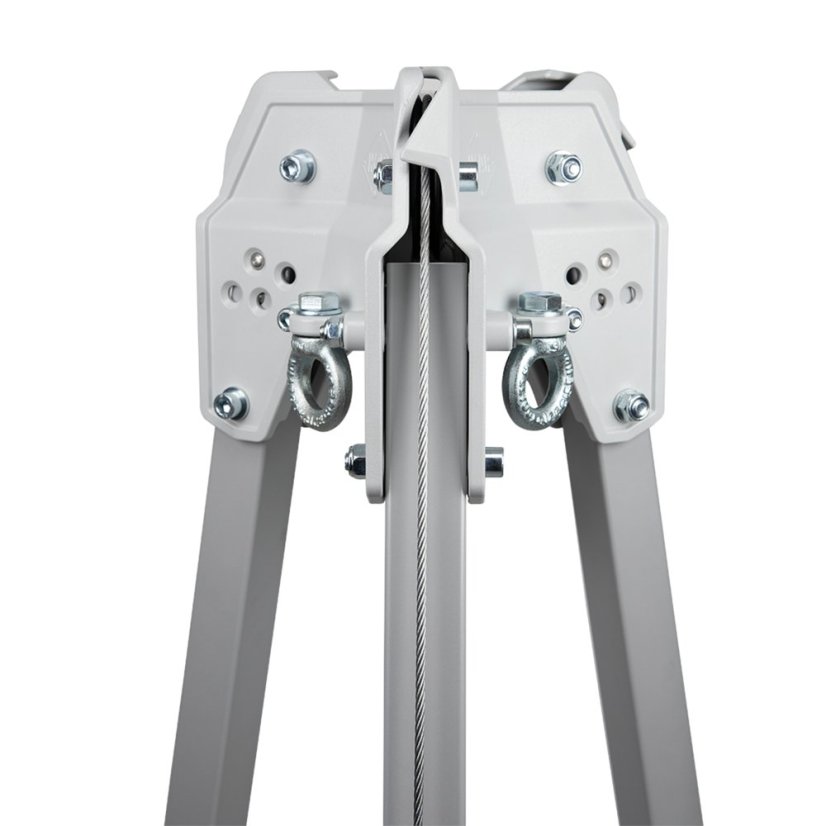

- 3 pulleys integrated into the pressure-cast tripod head
- independent leg adjustment allows use on uneven terrain
- due to its design, the tripod does not require a securing chain between the feet, eliminating the risk of tripping
- suitable for two persons, max. load capacity 300 kg
Height: 1.43 m - 2.54 m
Diameter of opening under the tripod: 0.64 m - 2.19 m
Leg span: 0.56 - 1.90 m
Load capacity: 300 kg
Weight: 24 kg
Certification: CE 0299, EN 795 TYPE B, CEN/TS 16415
The following accessories can be purchased for the tripod:
-

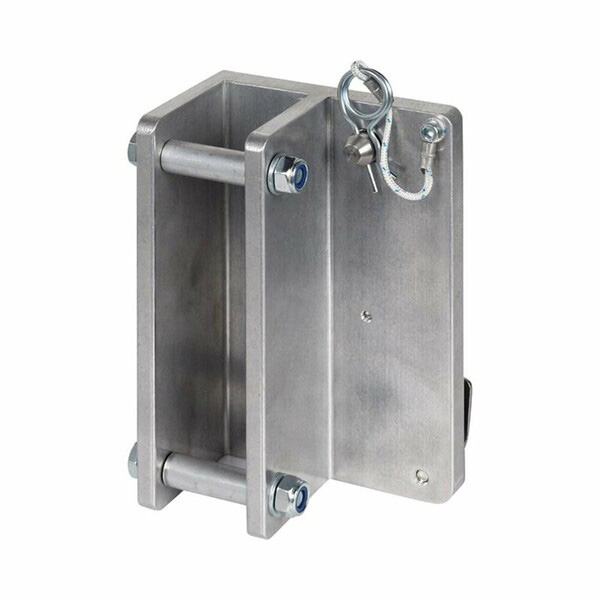

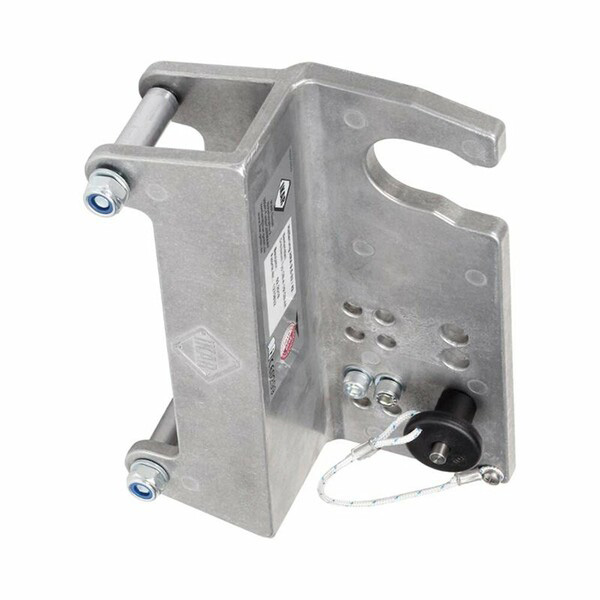

IKAR WINCH BRACKET FOR TRIPOD
-
IKAR HRA BRACKET FOR TRIPOD
-

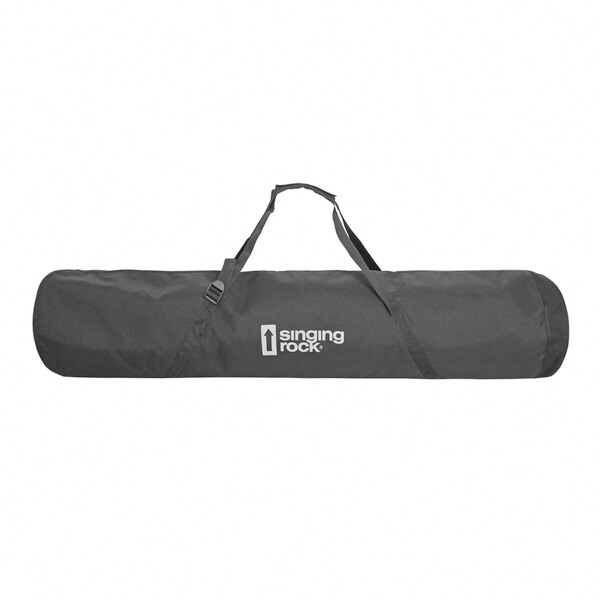

TRIPOD BAG
| Article MPN | X4002XX00 |
|---|---|
| Certification | EN 795/B , CEN/TS 16415 , CE 0299 |
| Weight | 24 kg |
| Load capacity | 300 kg |
| Diameter of the hole under the tripod | 0,64 - 2,19 m |
| Spacing of legs | 0,56 - 1,90 m |
| Height | 1,43 - 2,54 m |
| Lifespan | Unlimited time |
| Manufacturing company | IKAR GmbH |
|---|---|
| Address | Nobelstraße 2, Industriepark West, 36041 Fulda, Germany |
