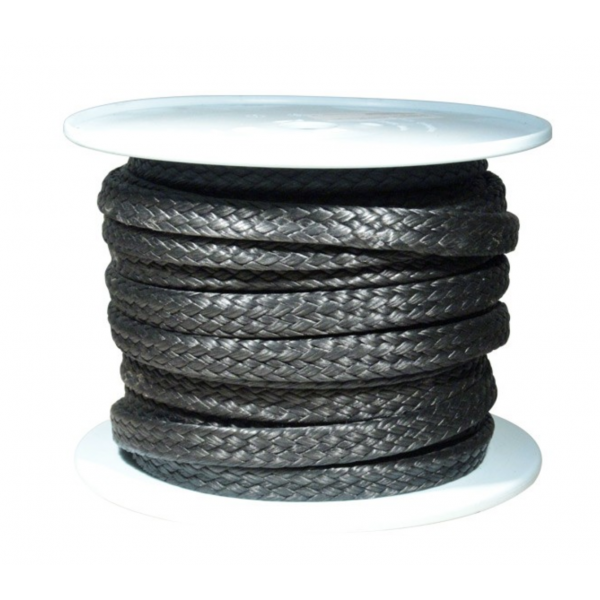

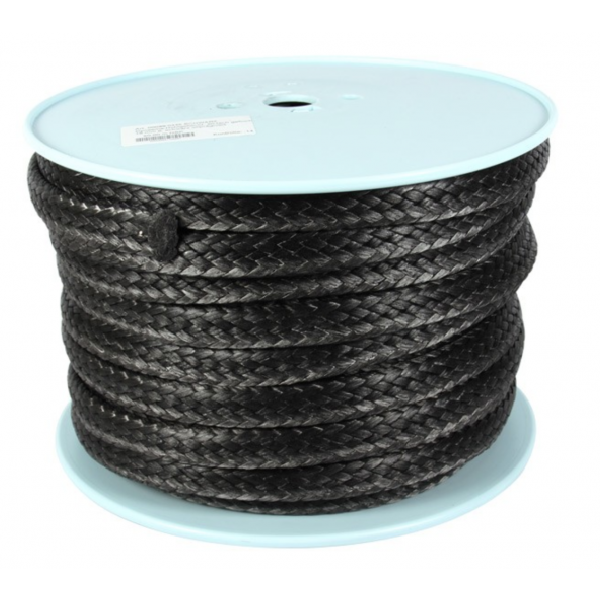

Hollow rope GEFA 20T - DYNEEMA 25 m
Article MPN: 02.2.20.020.025.1
MBS 190 kN || Diameter 20 mm || Weight 3.93 kg / 25 m
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
Certified static rope with a load capacity of up to 20 t
-
rope made from ultra-light and extremely strong Dyneema® fiber
-
colored control strand for overload indication
Material: Dyneema
Guaranteed load capacity for the lifetime: 20 t
MBS: 190 kN
Diameter: 20 mm
Elongation at 50% MBS: 1.3 %
Elongation at deformation: 2.9 %
Weight: 3,93 kg / 25 m
Packaging: 25 m
Service life: 8 years
Certification: DIN EN ISO 2307
Specifications
| Article MPN | 02.2.20.020.025.1 |
|---|---|
| Certification | DIN EN ISO 2307 |
| Weight | 3,93 kg / 25 m |
| Material | Dyneema |
| Breaking load (MBS) | 190 kN |
| Load capacity | 20 t |
| Rope Diameter | 20 mm |
| Elongation | 1,3 % |
| Lifespan | 8 years |
Manufacturer/Importer information
| Manufacturing company | GEFA Produkte Fabrik GmbH & Co. KG |
|---|---|
| Address | Wiesentalstraße 35, 73642 Welzheim, Germany |
| info@gefa.de |
Download
GEFA 20T DYNEEMA Test Report (pdf, 1.7 MB)
