HARKEN TOPCRANK LOKHEAD RIGGING WINCH 500 - w/o platform
Load capacity: 500 kg || For ropes 9 - 12.7 mm || Minimum Breaking Strength MBS: 35 kN (≈ 3500 kg) || Certified system for lifting loads thanks to the LokHead mechanism || TopCrank mechanism protects the winch during long lasting and heavy operations
Max rope diameter: 12,7 mm
Min rope diameter: 9 mm
Weight of winch: 7 kg
Weight of kit: 10,3 kg
Work Load Limit: 5 kN
Load capacity: 500 kg
Minimum Breaking Strength MBS: 35 kN (≈ 3500 kg)
Power ratio with 254mm/10" handle: 13.50:1 - 1st gear / 39.90:1 - 2nd gear
The lightweight portable winch meets the requirements of CE certification for lifting loads.

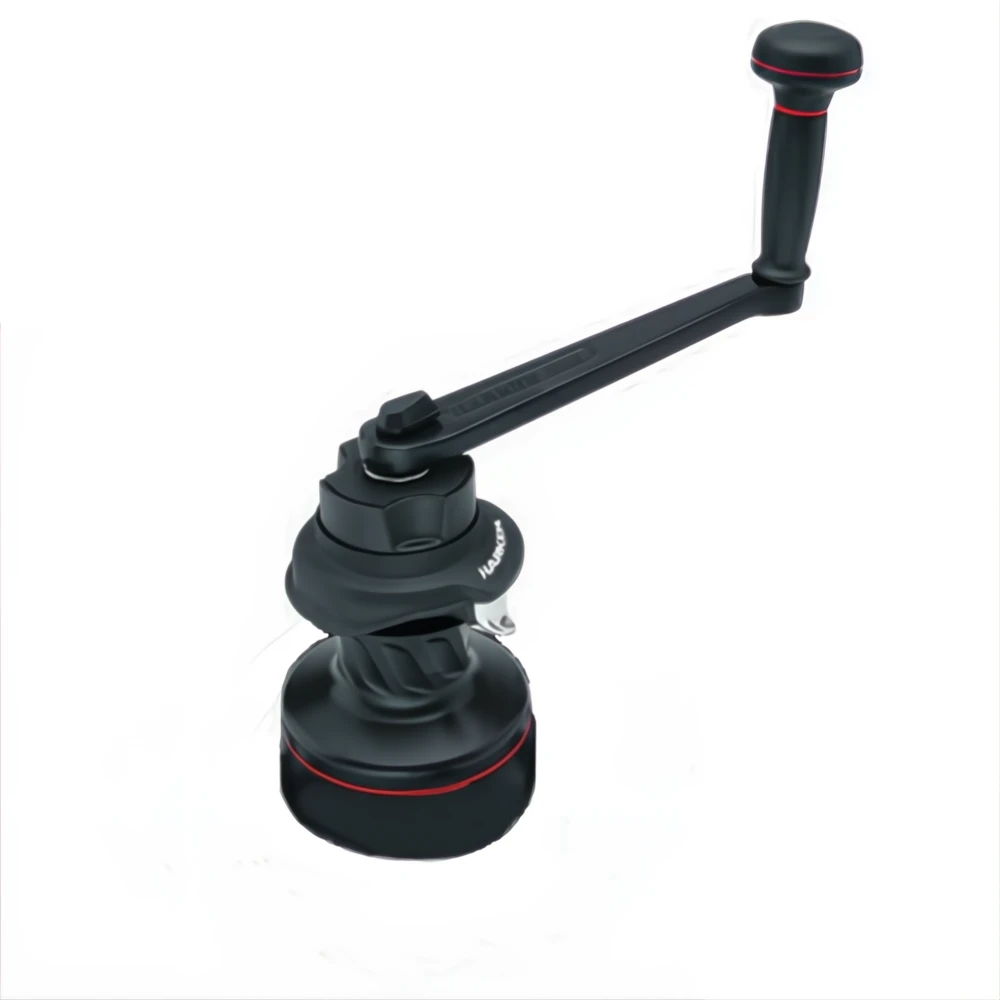

Delivered without a mounting duralumininum platform.
The winch is designed for use in complex rigging scenarios and features two speeds, allowing precise control over the load.
LokHead system - secures the rope against slipping out of the clamping jaws -
- safety comes first, which is why we equipped this winch with a system for complete protection against free fall of material or accidental release of the rope
TopCrank mechanism - robust protection of internal parts during long lasting & heavy operations
TopCrank eliminates misalignment when using an electric drive unit - e.g. cordless angle drills.
TopCrank protects the core of the winch body (the most valuable part of the winch - produced from one piece of CNC alloy part) against the grinding of the central shafts and damage to the bearings of the transmission gears.
| Article MPN | INTCLHRW500 |
|---|---|
| Weight | 7 kg |
| Breaking load (MBS) | 35 kN |
| Working load (WLL) | 5 kN |
| Rope Diameter | 9 - 12,7 mm |
| Manufacturing company | Harken, Inc. |
|---|---|
| Address | One Harken Way, N15W24983 Bluemound Road Pewaukee, Wisconsin 53072, USA |
| customerservice@harken.com |
54,62 $ excl. VAT
