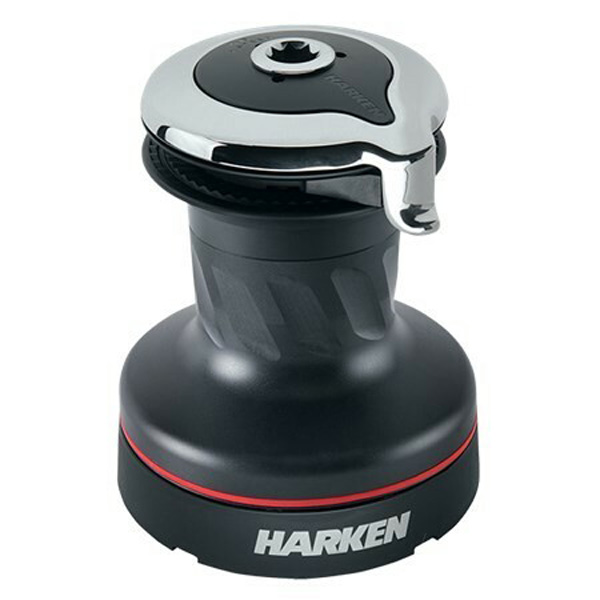

HARKEN ALU WINCH 46.2STGNA Radial 2 Speed
Rope Ø: 10 - 22 mm | Mechanical advantage 44:1 or 22:1 | Weight 9.12 kg
Hand winch for handling heavy loads.
Self-locking mechanism for 100% control over the load,
enables quick and safe operation by 1 person without the need for assistance.
Designed for heavy loads and handling ropes with larger diameters up to 22 mm.
Simple operation and high safety during handling - both during winding and lowering.
The drum is made of solid duralumin (hardened aluminum) alloy with ribbing.
Patented surface treatment of the drum surface with diagonal ribbing ,
is the result of years of development and experience of professionals - a balance between
excellent grip (adhesion) and acceptable rope wear.
In this way, safety during handling is also ensured - both during winding and during lowering.
Compact rolling bearings guarantee high durability and efficiency (low friction under load).
The gears of the internal gears are made of stainless steel .
Purpose: lifting or pulling heavy loads.
Drum surface: duralumin alloy
Configuration: self-locking
Number of speeds: 2
Weight: 9.12 kg
Minimum rope diameter Ø: 10 mm
Maximum rope diameter Ø: 22 mm
Max. number of turns of the 22 mm rope: 5
Mechanical advantage 1: 22:1
Mechanical advantage 2: 44:1
Power Source: Manual
Draw in: Italy
| Manufacturing company | Harken, Inc. |
|---|---|
| Address | One Harken Way, N15W24983 Bluemound Road Pewaukee, Wisconsin 53072, USA |
