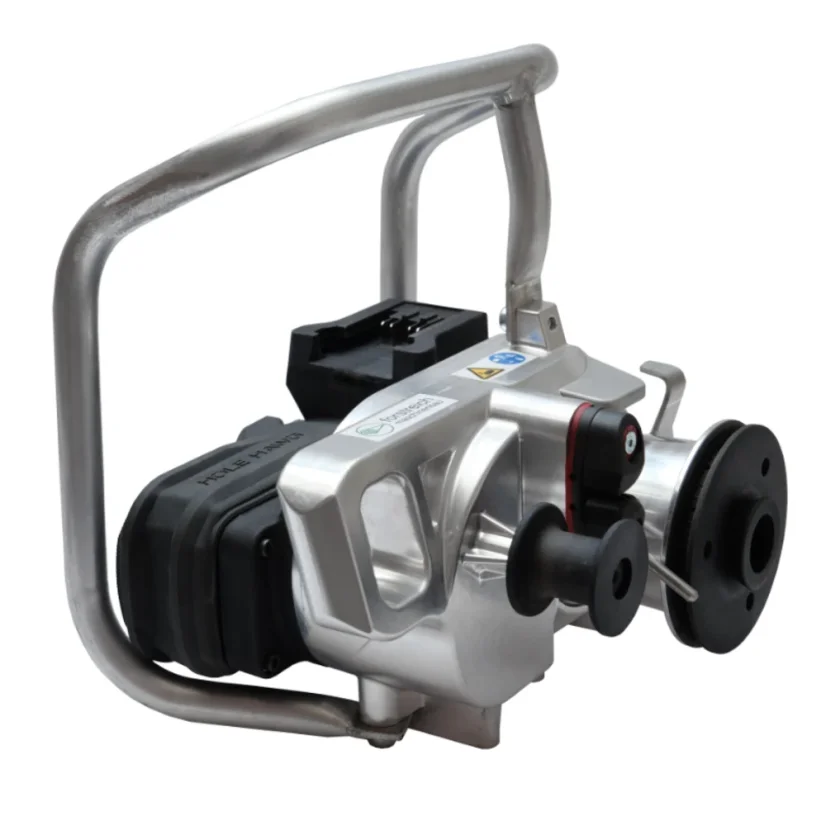

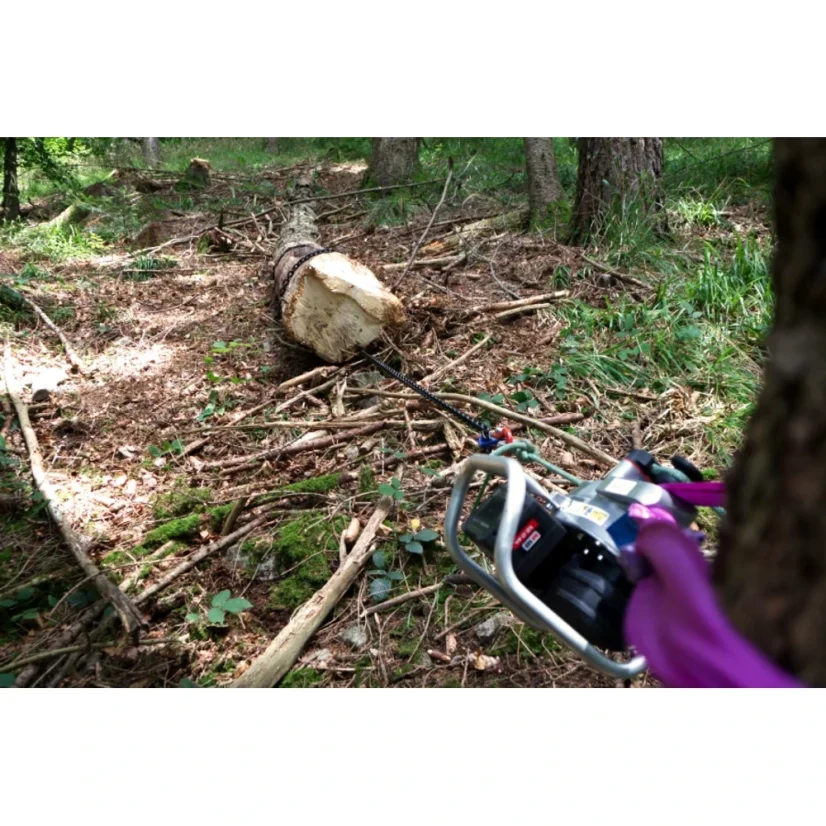

FORSTREICH SP1000 Set 12.0 is a portable battery powered capstan winch supplied as a complete kit ready for immediate use. The winch is designed for pulling loads in forestry, arboriculture, construction and technical applications.

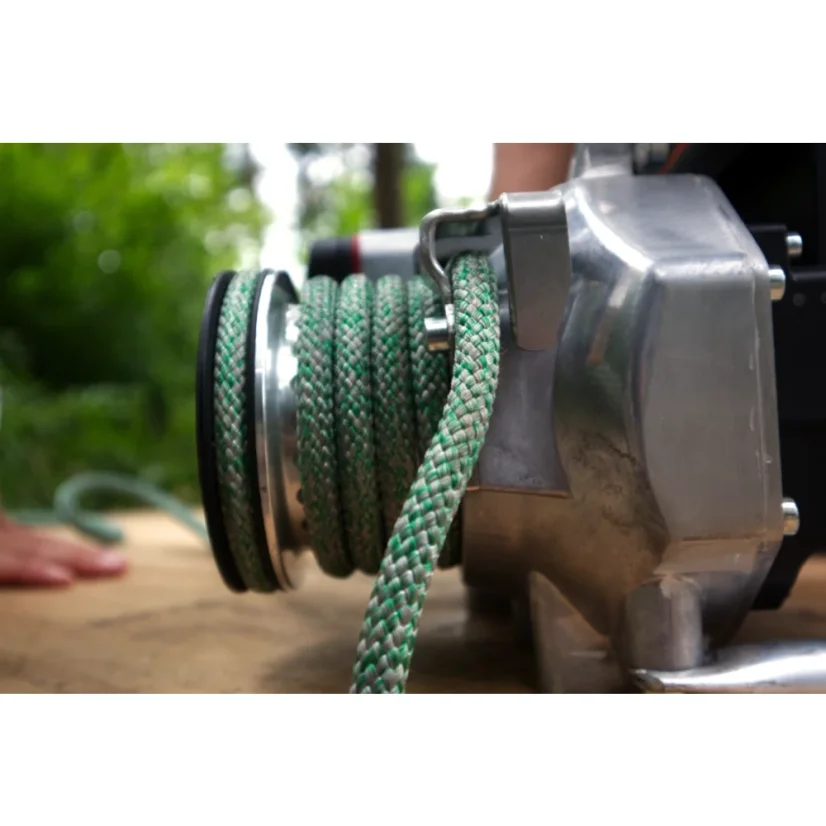

The winch operates using a capstan drum, around which the working rope is wrapped. Thanks to this system rope length is practically unlimited and the pulling force remains constant during operation.

The device features a two-speed gearbox. In power mode it delivers 1000 kg pulling force at approximately 5.5 m/min, while fast mode provides 250 kg at speeds up to 26 m/min.

The winch is operated via remote control, allowing safe operation and speed selection without handling the device directly.

With a weight of approx. 9 kg, the winch is easy to transport and suitable for field work. The electric drive produces no exhaust gases, allowing use even in enclosed environments.

The Set 12.0 version includes the complete power supply with 2× high-capacity Milwaukee 12.0 Ah batteries and charger, enabling immediate deployment in the field.

Technical information

Device type: battery capstan winch

Max pulling force:
1000 kg (power mode)
250 kg (fast mode)

Rope speed:
5.5 m/min (power mode)
26 m/min (fast mode)

Rope diameter: 8–10 mm
Weight: approx. 9 kg
Dimensions: approx. 285 × 275 × 290 mm
Drive: battery powered
Control: remote control
Country of manufacture: Germany

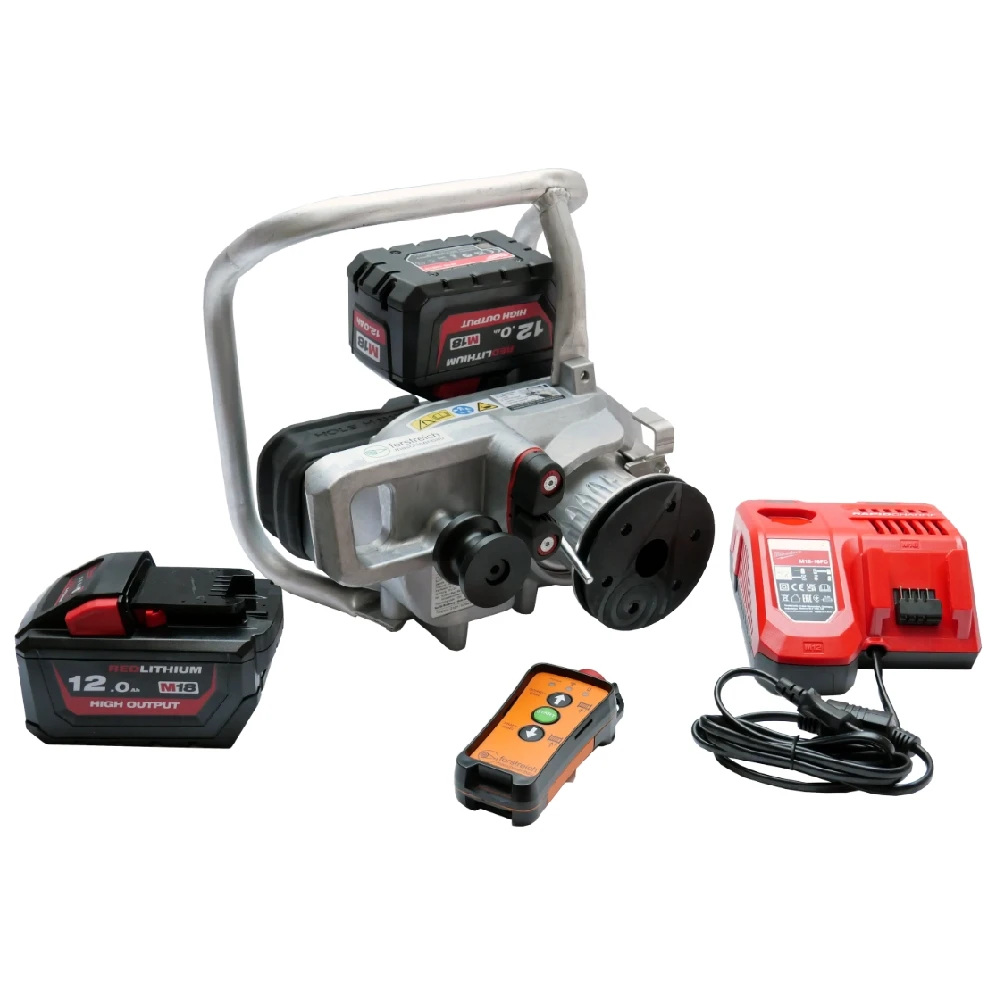

Scope of delivery – Set 12.0

FORSTREICH SP1000 winch with remote control
2× Milwaukee 12.0 Ah batteries
Milwaukee charger
