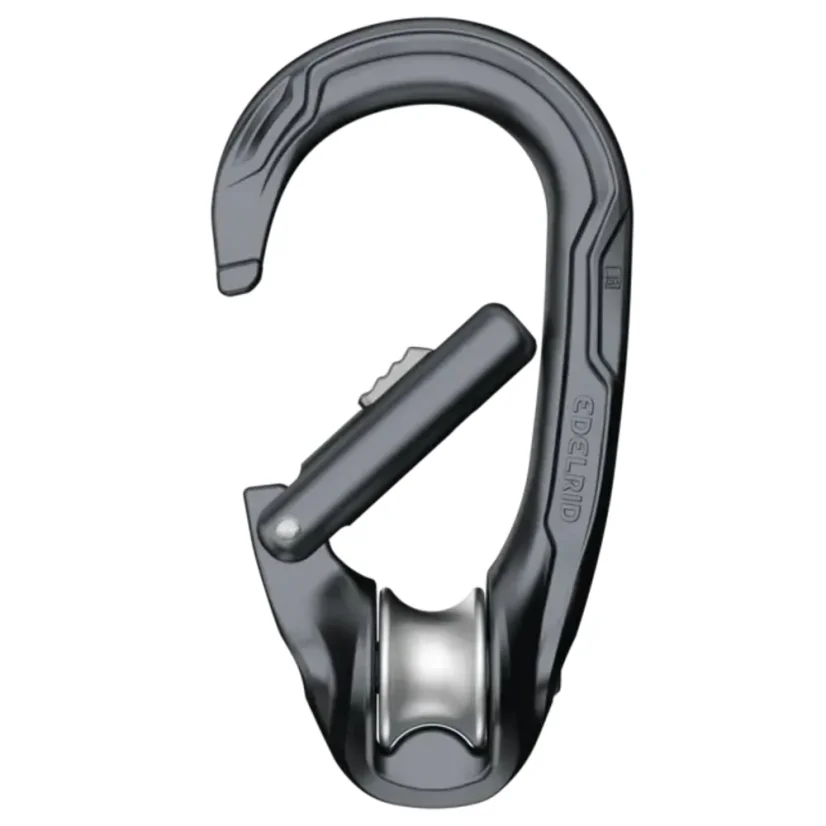

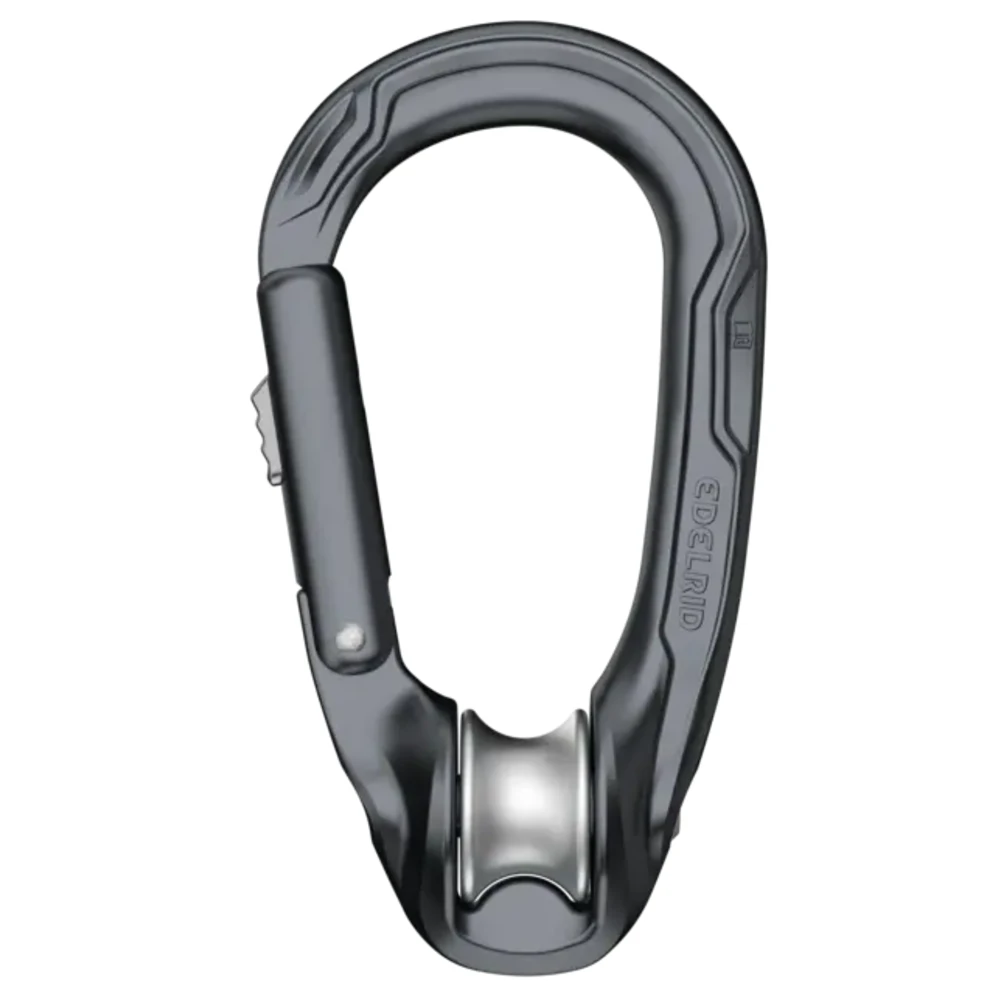

EDELRID MAXIOM RIG SLIDER pulley carabiner
MBS 20 kN || WLL 400 kg || Efficiency 94% || Weight 108 g || Gate openning 23 mm
The EDELRID MAXIOM RIG SLIDER pulley carabiner is a large aluminium carabiner with an integrated rope pulley for work safety, technical rescue and rigging systems. It is suitable for creating efficient hauling systems, redirects or systems where a connector and pulley need to be combined in one compact device.
The integrated pulley with ball bearing achieves an efficiency of 94 % and remains functional under load. The more oval carabiner shape provides enough space for ropes and additional equipment, while the large 23 mm gate opening and Keylock closure make clipping and unclipping easier. The automatic Slider gate allows quick and simple handling while maintaining secure closure.
Technical parameters
- Type: carabiner with integrated pulley
- Use: hauling systems, redirects, technical rescue, work safety, rigging
- Material: aluminium
- Gate: Slider
- Carabiner shape: HMS / pear-shaped
- WLL: 400 kg
- Pulley efficiency: 94 %
- Major axis strength: 20 kN
- Minor axis strength: 7 kN
- Open gate strength: 7 kN
- Gate opening: 23 mm
- Width: 67 mm
- Length: 121 mm
- Standard: EN 12275, EN 362
| Article MPN | 852280000690 |
|---|---|
| Certification | EN 362 , EN 12275 |
| Weight | 108 g |
| Material | dural |
| Breaking load (MBS) | 20 kN |
| Working load (WLL) | 400 kg |
| Gate opening | 23 mm |
| Efficiency | 94% |
| Manufacturing company | EDELRID GmbH & Co. KG |
|---|---|
| Address | Achener Weg 66, 88316 Isny im Allgäu, Germany |
