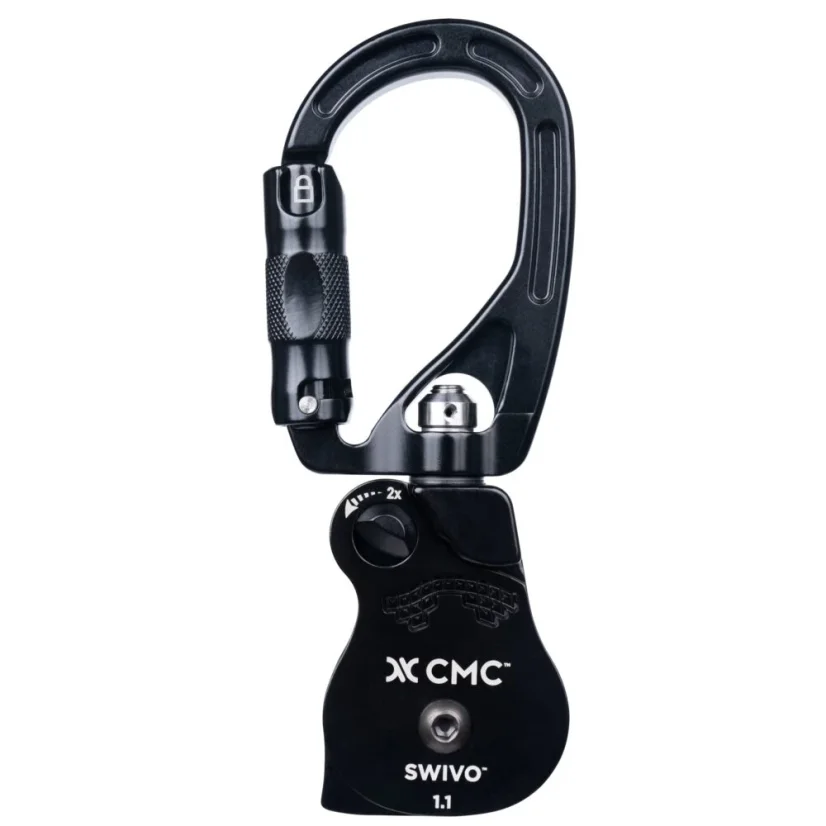

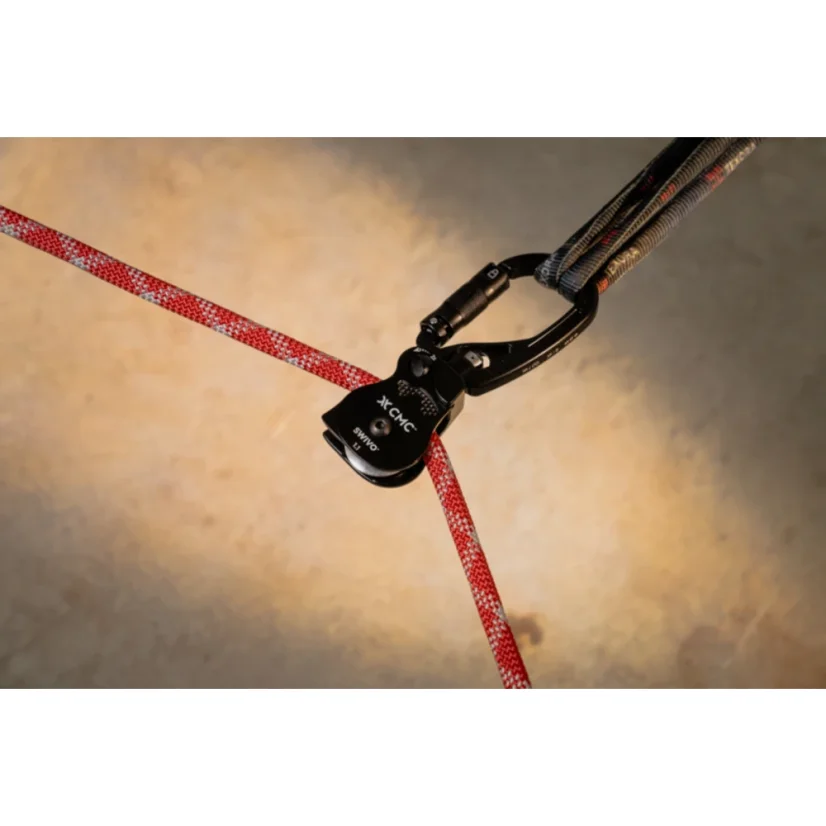

The CMC SWIVO Single carabiner with swivel and pulley is a compact multifunction device that combines a swivel, single-sheave pulley and oval carabiner into one structural unit. It is designed for building compact and efficient rope systems in rescue, work at height and arborist applications.

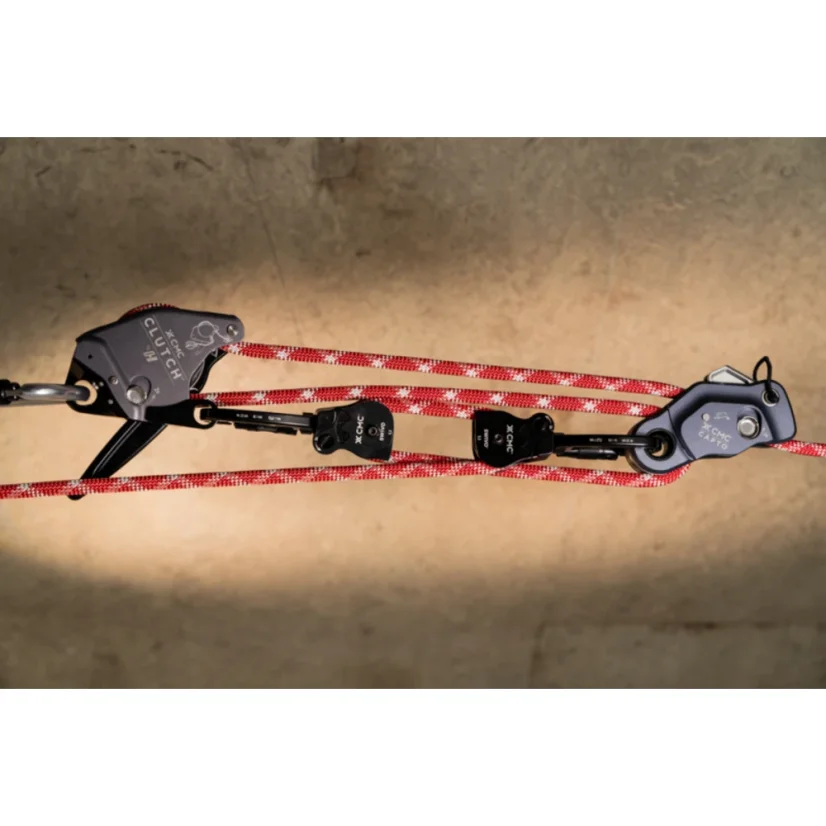

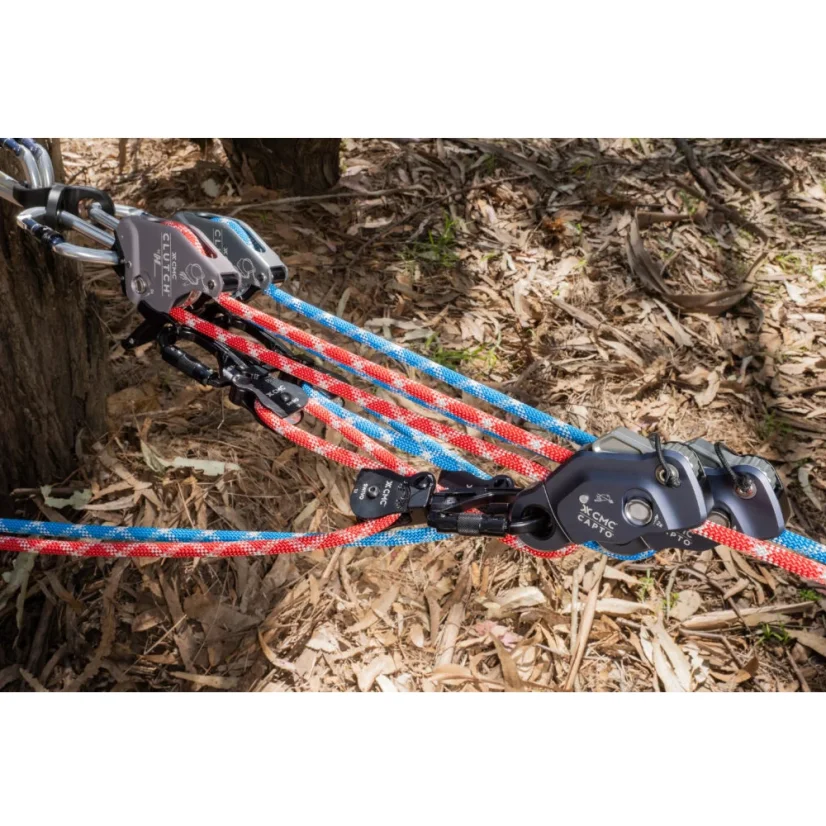

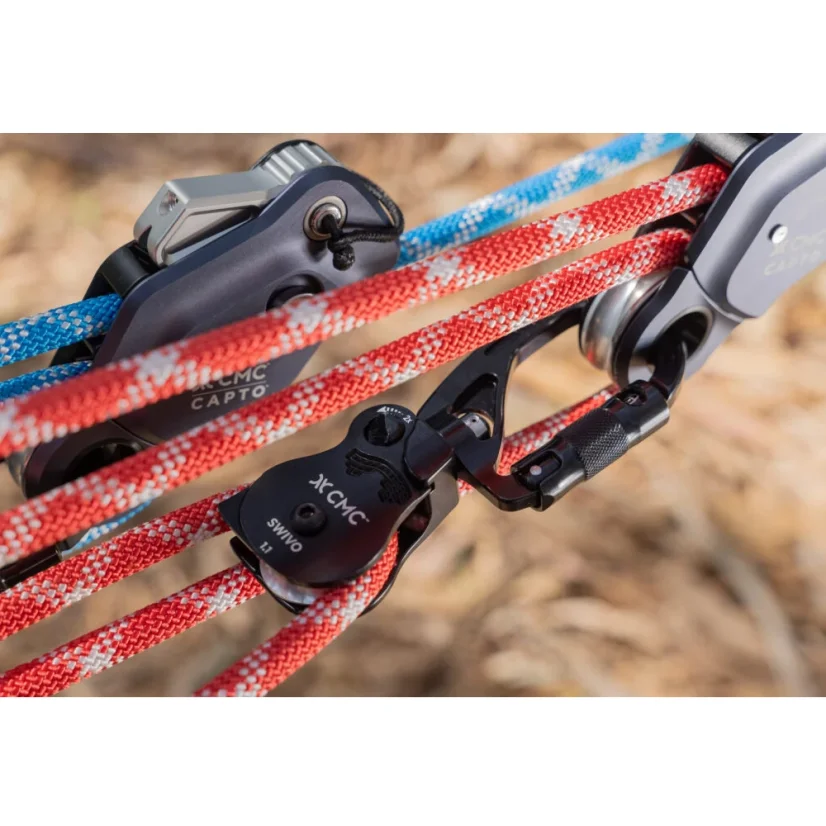

The integrated solution simplifies mechanical advantage (M/A) systems, reduces the overall system length and allows greater working travel. When paired with the CAPTO device, it enables rapid conversion from a 3:1 to a 5:1 system, increasing the efficiency of rescue or installation teams.

The oval carabiner frame is designed for high strength and even load distribution. The rounded shape allows easy connection to wider anchor points and minimizes the risk of binding.

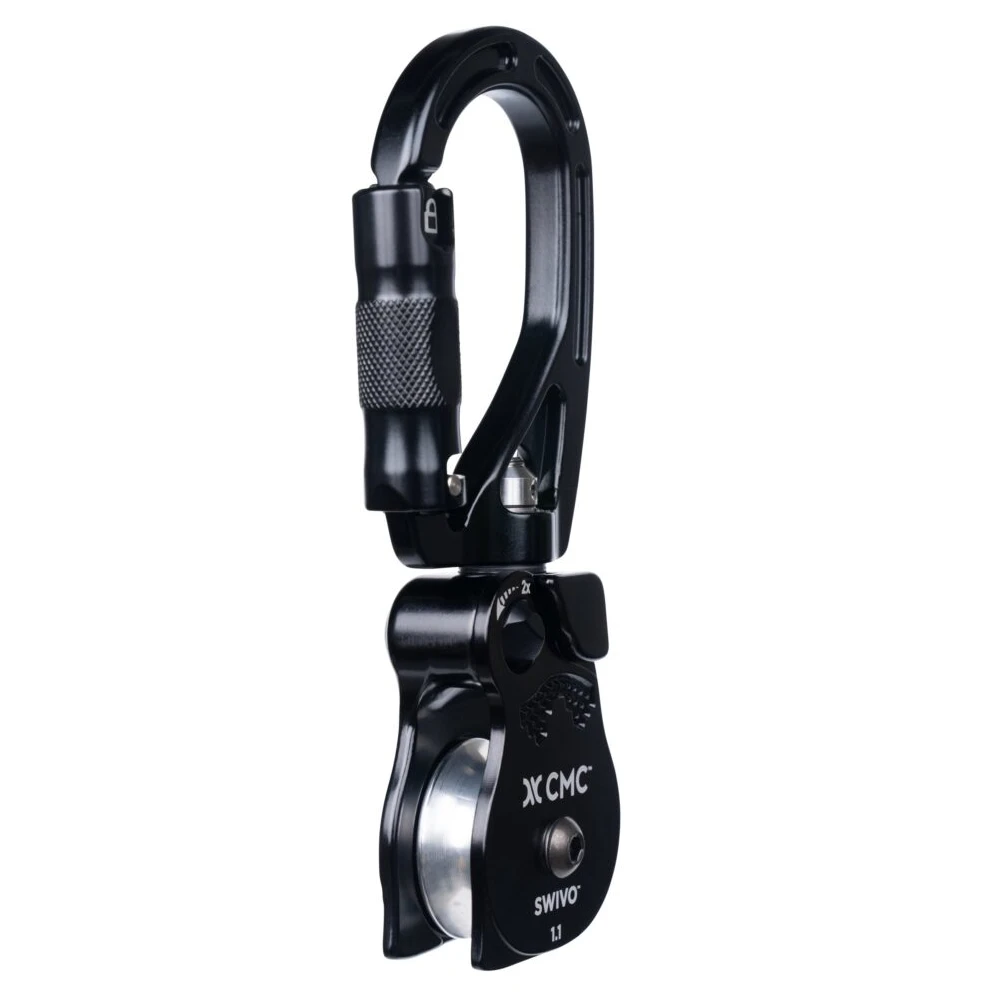

The 1.1" sheave is mounted on sealed ball bearings, ensuring high efficiency and smooth rope operation. The integrated swivel automatically aligns the load direction and prevents system twisting.

The pivoting sideplate allows rope installation without disconnecting the device from the system. The double-action locking mechanism prevents accidental opening. The ergonomic design allows one-handed operation.

The device is CNC machined for an optimal strength-to-weight ratio. It meets NFPA Technical Use requirements and European standards EN 362/B, EN 12275/B and EN 12278.

Made in the USA in cooperation between CMC and Rock Exotica.

Main features:
Combination of carabiner, swivel and pulley in one device
Compact design allows greater system travel
Integrated swivel aligns load direction
Sheave mounted on sealed ball bearings
Pivoting sideplate for easy rope loading
Double-action safety mechanism against accidental opening
Oval frame for improved load distribution
Compatible with rope up to 13 mm diameter
Suitable for rescue, work at height and arborist applications

Technical specifications:
Minimum Breaking Strength (MBS): 23 kN
Pulley type: Single (one sheave)
Sheave material: aluminum
Maximum rope diameter: 13 mm
Dimensions: 163 × 64 mm
Weight: 209 g
Color: black

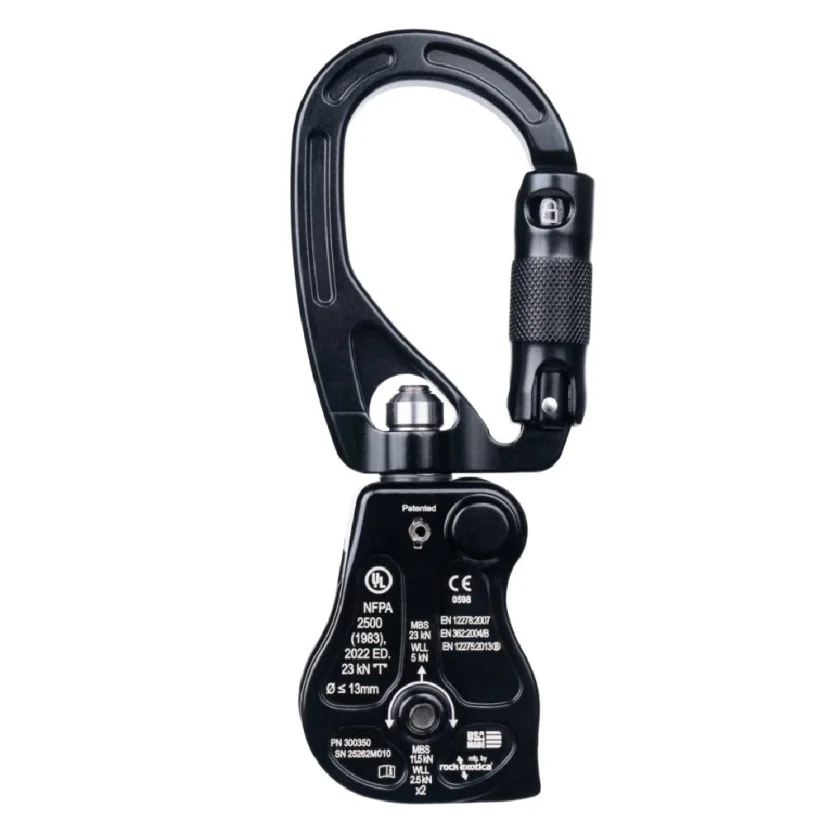

Certification: NFPA Technical Use, EN 362/B, EN 12275/B, EN 12278
Manufactured in: USA
