CLIMBING TECHNOLOGY GRIZZLY lowering pulley 80 kN
Country of origin: Italy
Article MPN: 2P658
MBS 80 kN || WLL 16 kN || Weight 880 g || Rope diameter max. 15 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
The pulley can withstand a working load of up to 1,600 kg.
Steel roll axis for high load capacity and long service life.
The safety lock keeps the pulley in the working position and prevents accidental opening during lowering.

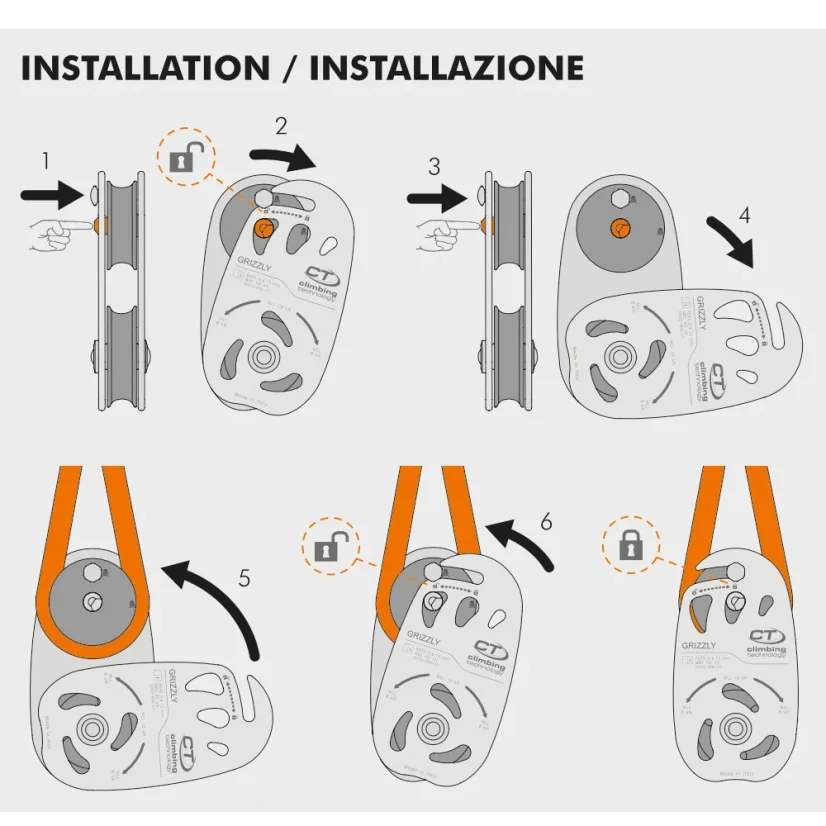

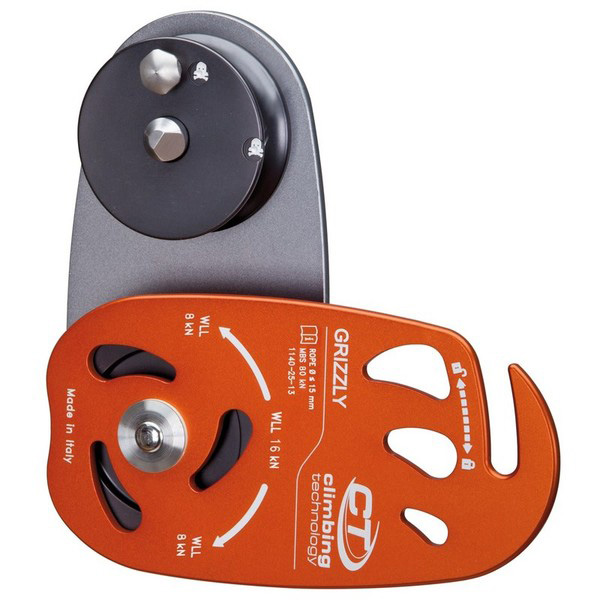

After unlocking, the sides of the pulley can be opened and the lowering rope can be installed.
Steel roll axis for high load capacity and long service life.
The safety lock keeps the pulley in the working position and prevents accidental opening during lowering.
After unlocking, the sides of the pulley can be opened and the lowering rope can be installed.
Material: duralumin, steel
Limit load: 80 kN
Working load: 16 kN
Size: 85 x 100 mm
Max. rope diameter: 15 mm
Roll diameter (inner): 64 mm
Roll diameter (outer): 78 mm
Bearing type: self-lubricating sliding
Weight: 880 g
Limit load: 80 kN
Working load: 16 kN
Size: 85 x 100 mm
Max. rope diameter: 15 mm
Roll diameter (inner): 64 mm
Roll diameter (outer): 78 mm
Bearing type: self-lubricating sliding
Weight: 880 g
Specifications
| Article MPN | 2P658 |
|---|---|
| Weight | 880 g |
| Breaking load (MBS) | 80 kN |
| Working load (WLL) | 16 kN |
| Rope Diameter | 15 mm |
Manufacturer/Importer information
| Manufacturing company | Climbing Technology S.r.l. |
|---|---|
| Address | Via Torchio 22, 24034 Cisano Bergamasco (BG), Italy |
| info@climbingtechnology.com |
Download
CLIMBING TECHNOLOGY GRIZZLY manual (pdf, 603.5 kB)
CLIMBING TECHNOLOGY GRIZZLY product sheet (pdf, 904.5 kB)
