CAMP SPHINX PRO pulley
Country of origin: Italy
Article MPN: 2153
MBS 25 kN || WLL 6 kN || Weight 85 g || Efficiency 92% || Rope diameter up to 13 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

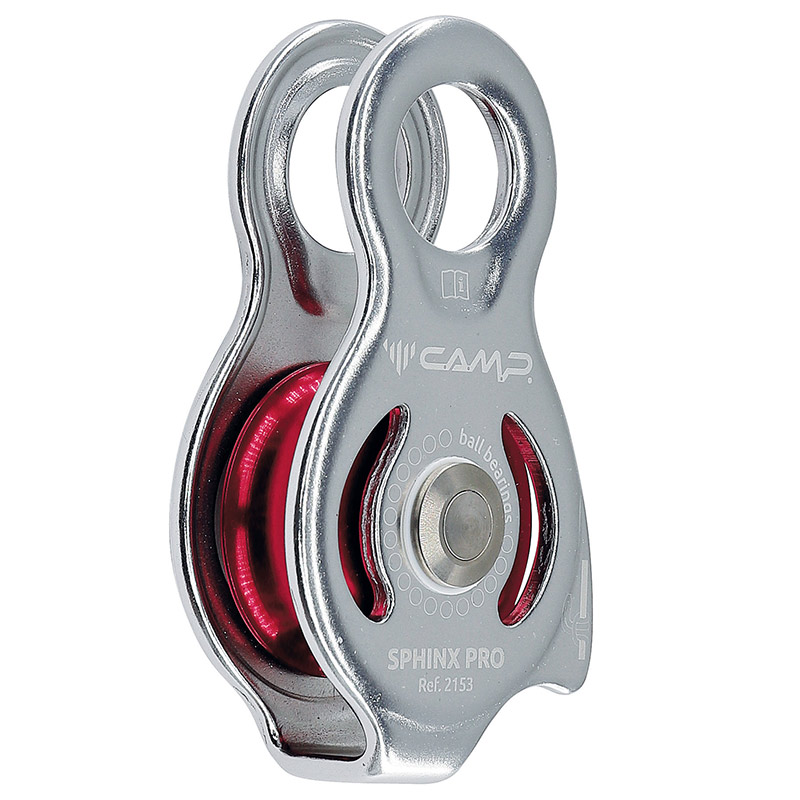

Ultra-thin, highly efficient fixed pulley. The main attachment point allows full rotation of the carabiner. Designed for use with ropes up to 13 mm. Thanks to the prusik, a self-locking knot can be installed on one side. Sealed ball bearings ensure high efficiency and reliable performance at high speeds. Suitable for rescue teams and professional work applications.
- Single pulley
- Material: aluminum alloy (body), stainless steel (axle)
- Ball bearing
- Rounded hole edges
- Solid side plates

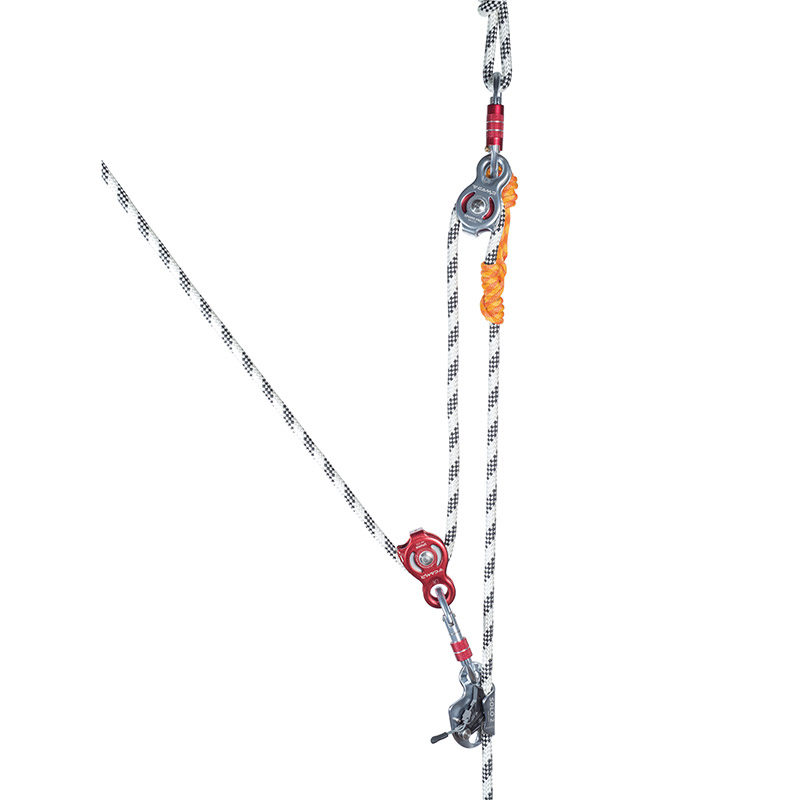

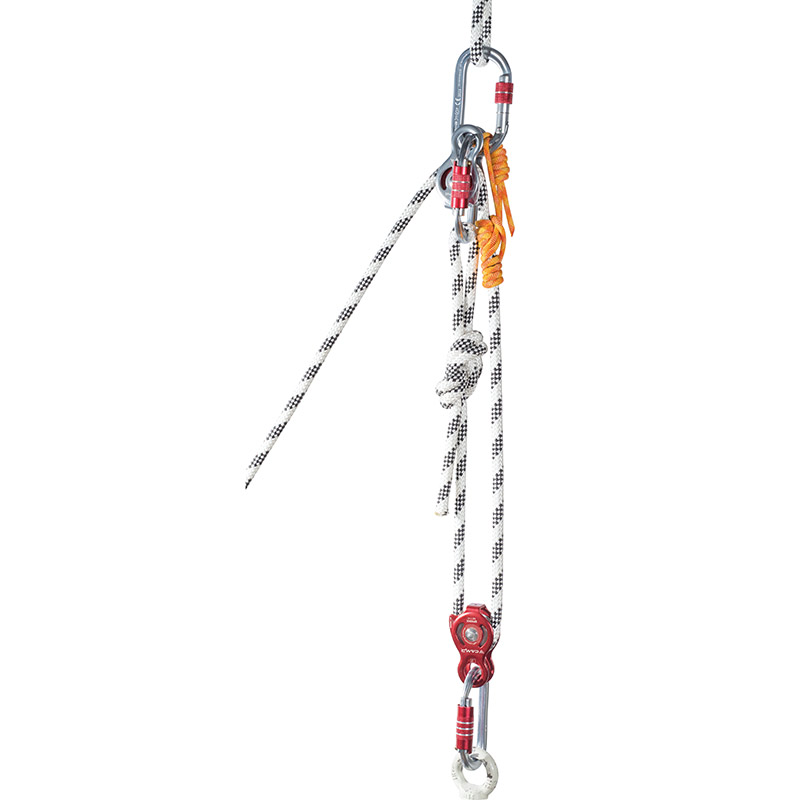

- Easy integration into pulley systems

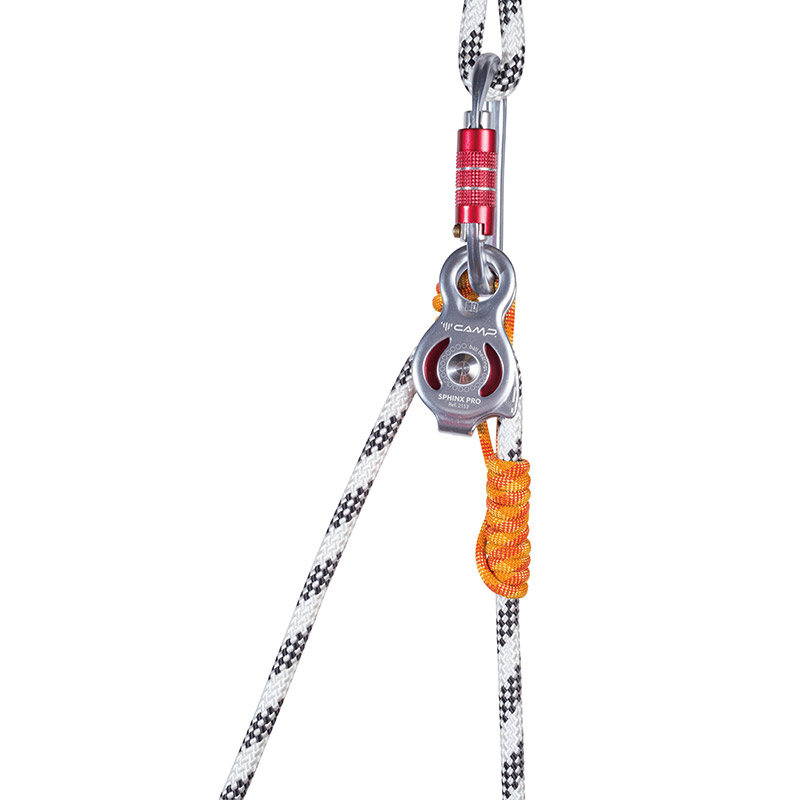

- Ready for prusik on one side
- For ropes < 13 mm
- Weight: 85 g
- Inner diameter: 28 mm
- Strength: 25 kN
- Working load: 6 kN (3 kN x 2)
- Efficiency 92 %
- EN 12278
- UIAA 127
- Warranty: 2 years
Specifications
| Article MPN | 2153 |
|---|---|
| Certification | EN 12278 , UIAA 127 |
| Weight | 85 g |
| Material | dural , stainless steel |
| Breaking load (MBS) | 25 kN |
| Working load (WLL) | 6 kN |
| Průměr | 28 mm |
| Rope Diameter | 13 mm |

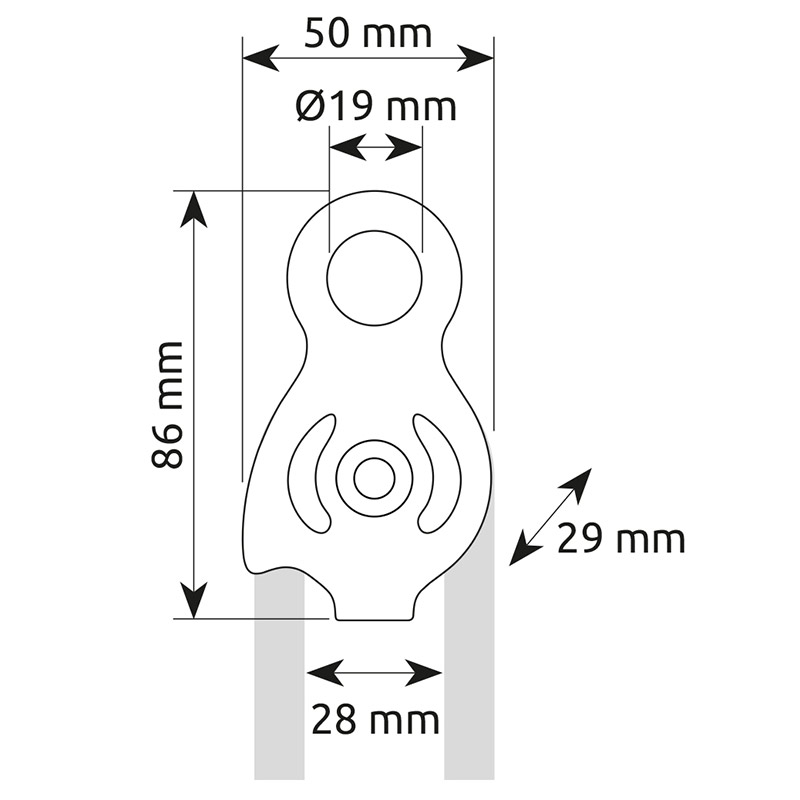

| Dimensions | 86 x 55 mm |
| Efficiency | 92% |
