CAMP FLYTE tandem pulley
Country of origin: Italy
Article MPN: 3121
MBS 20 kN || WLL 10 kN || Weight 280 g || Rope diameter up to 13 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

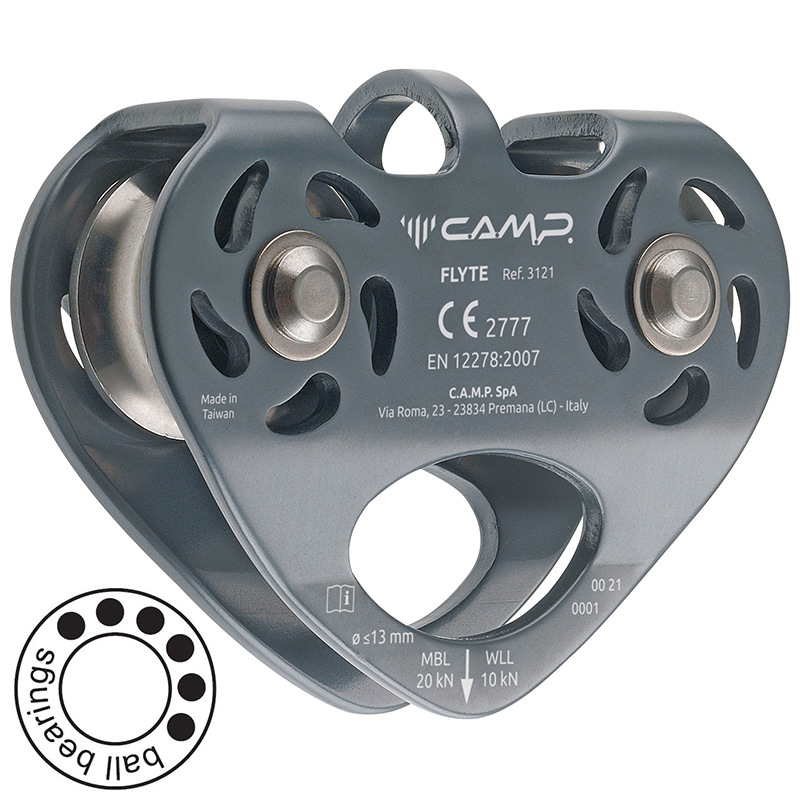

Tandem double pulley specially designed for rope crossings and ziplines.
Sealed ball bearings ensure low friction and high speed (max. 20 m/s).
Main body made of aluminum alloy with stainless steel sheaves.
Suitable for ropes up to 13 mm in diameter and steel cables up to 12 mm.
Large primary attachment hole with an additional connection point on top.
Applications: Professional rescue, rope access, arboriculture
- Tandem double pulley
- Ball bearing
- For static, dynamic, and steel ropes
- Aluminum alloy body
- Stainless steel sheaves
- Weight: 280 g
- Size: 108 × 83 mm
- Maximum speed: 20 m/s (36 km/h)
- Maximum working strength: 10 kN
- Ultimate strength: 20 kN
- Max rope diameter: 13 mm
- Max steel cable diameter: 12 mm
- EN 12278
- Warranty: 2 years
Specifications
| Article MPN | 3121 |
|---|---|
| Certification | EN 12278 |
| Weight | 280 g |
| Material | dural , stainless steel |
| Breaking load (MBS) | 20 kN |
| Working load (WLL) | 10 kN |
| Průměr | 27 mm |
| Rope Diameter | 13 mm |

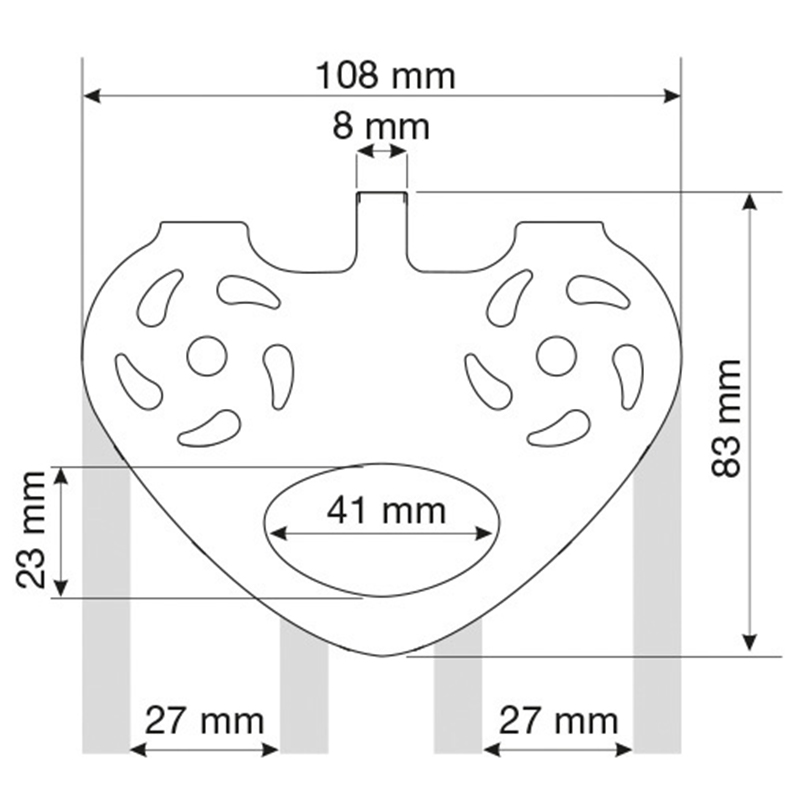

| Dimensions | 108 x 83 mm |
Manufacturer/Importer information
| Manufacturing company | CAMP Safety s.r.l. |
|---|---|
| Address | Via Nazionale 93, 38042 Calceranica al Lago (TN), Italy |
| info@camp.it |
Download
Product sheet CAMP FLYTE tandem pulley (pdf, 309.7 kB)
Manual CAMP FLYTE tandem pulley (pdf, 499.6 kB)
Declaration of Conformity CAMP FLYTE tandem pulley (pdf, 393.8 kB)
